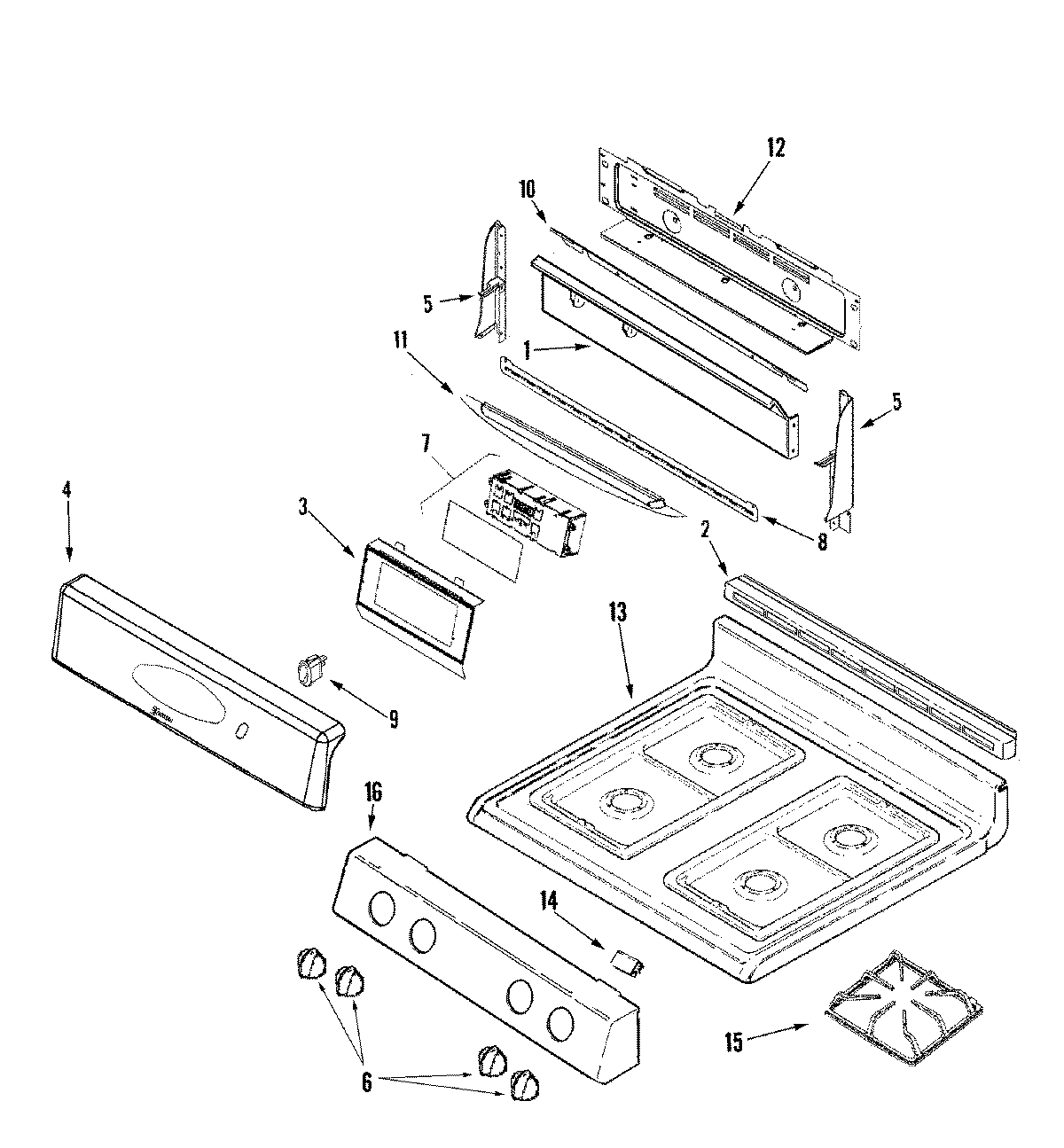

MGR4452ADW 02 – CONTROL PANEL/TOP ASSEMBLY

MGR4452ADW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGR4452ADW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 7101P147-60
1MAY 74009779
2MAY 74009797
2SCREW (10ABX1/4P TR ZN)
3NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
3BRACKET, CLOCK
4MAY 74009109
5MAY 74010212
5WP98008544 Whirlpool Screw Assembly
5MAY 74010211
6WP74009775 Whirlpool Burner Knob
7MAY 74010453
7WP74003976 Whirlpool Screw
8MAY 74009780
9WP74010226 Whirlpool RO Switch
10SCREW
10MAY 74009708
11MAY 74009802
11MAY 74009799
12MAY 74010804
12MAY 71001394
12MAY 74006536
12WP90767 Whirlpool Screw
13WP74005546 Whirlpool RU Spacer
13W11189172 Whirlpool Glide Drawer
13MAY 74003512
14MAY 74004827
15MAY 74001061
16MAY 74009829
