MGR4452ADW 03 – DOOR/DRAWER

MGR4452ADW 03 – DOOR/DRAWER

Written by

in

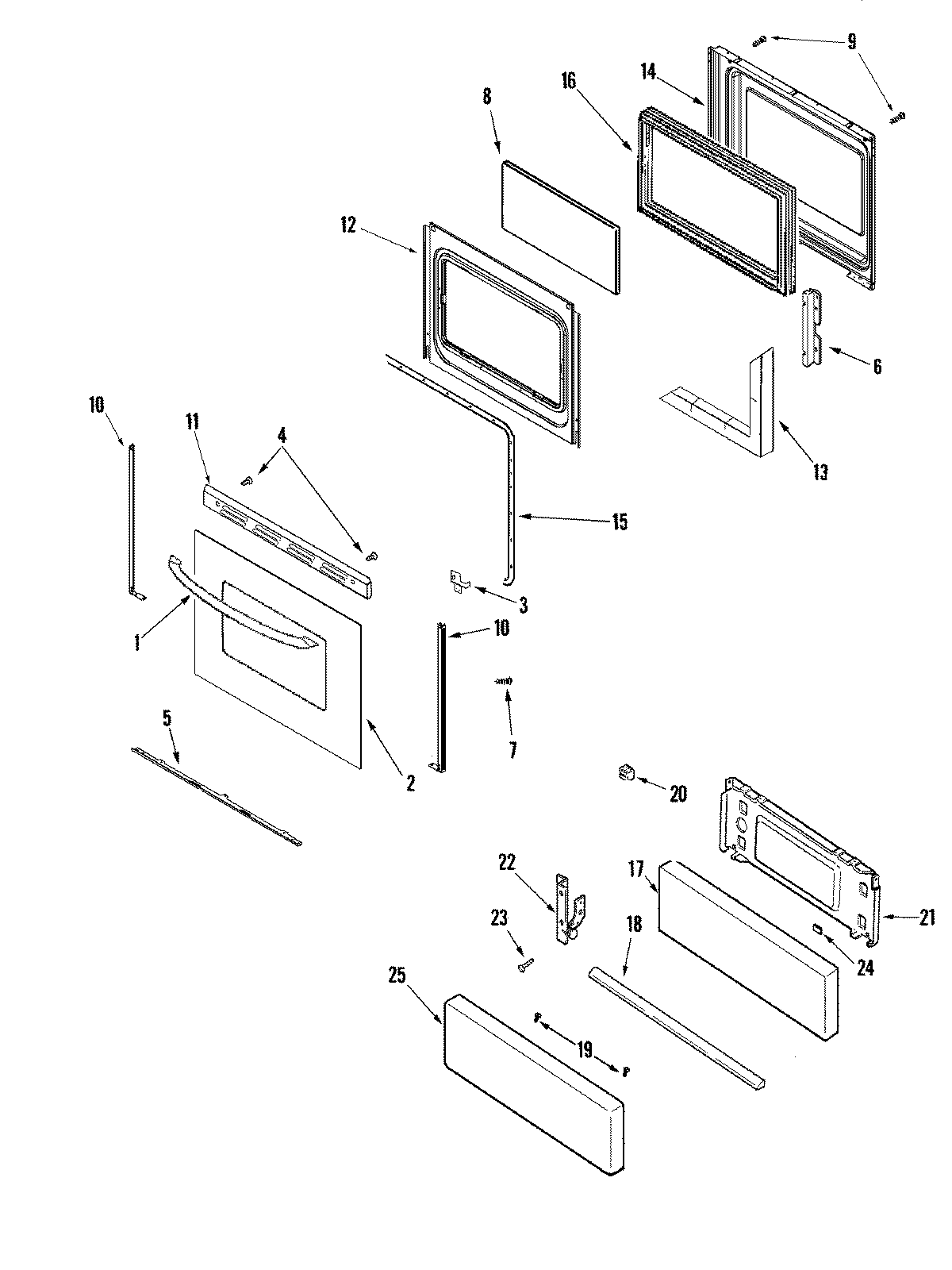

MGR4452ADW 03 – DOOR/DRAWER

Products

PositionProduct
1WP74011675 Whirlpool Door Handle
2MAY 74009732
33801F831-45 Whirlpool Bracket Assembly
33801F832-45 Whirlpool Bracket
4WP74006515 Whirlpool Washer Screw
4WP98008545 Whirlpool Screw
5SUPPORT, GLASS (BSQ)
6MAY 74003650
7WP98008544 Whirlpool Screw Assembly
874003645 Whirlpool Range Oven Door Inner Glass
9SCREW
10WP3608F116-71 Whirlpool Door Trim
10WP3608F117-71 Whirlpool Door Trim
11WP3608F141-71 Whirlpool Door Trim
12MAY 74009502
12MAY 7101P356-60
13INSULATION, OVEN DOOR
14MAY 74009909
14NUT, SNAP (ROUND-BLK)
15WP7212P043-60 Whirlpool Oven Door Seal Gasket
16FRAME, GLASS
17MAY 74001814
18WP2411F013-71 Whirlpool Door Handle
20MAY 74001663
21MAY 74007553
23MAY 74009897
24WP74005546 Whirlpool RU Spacer
25MAY 74001729
