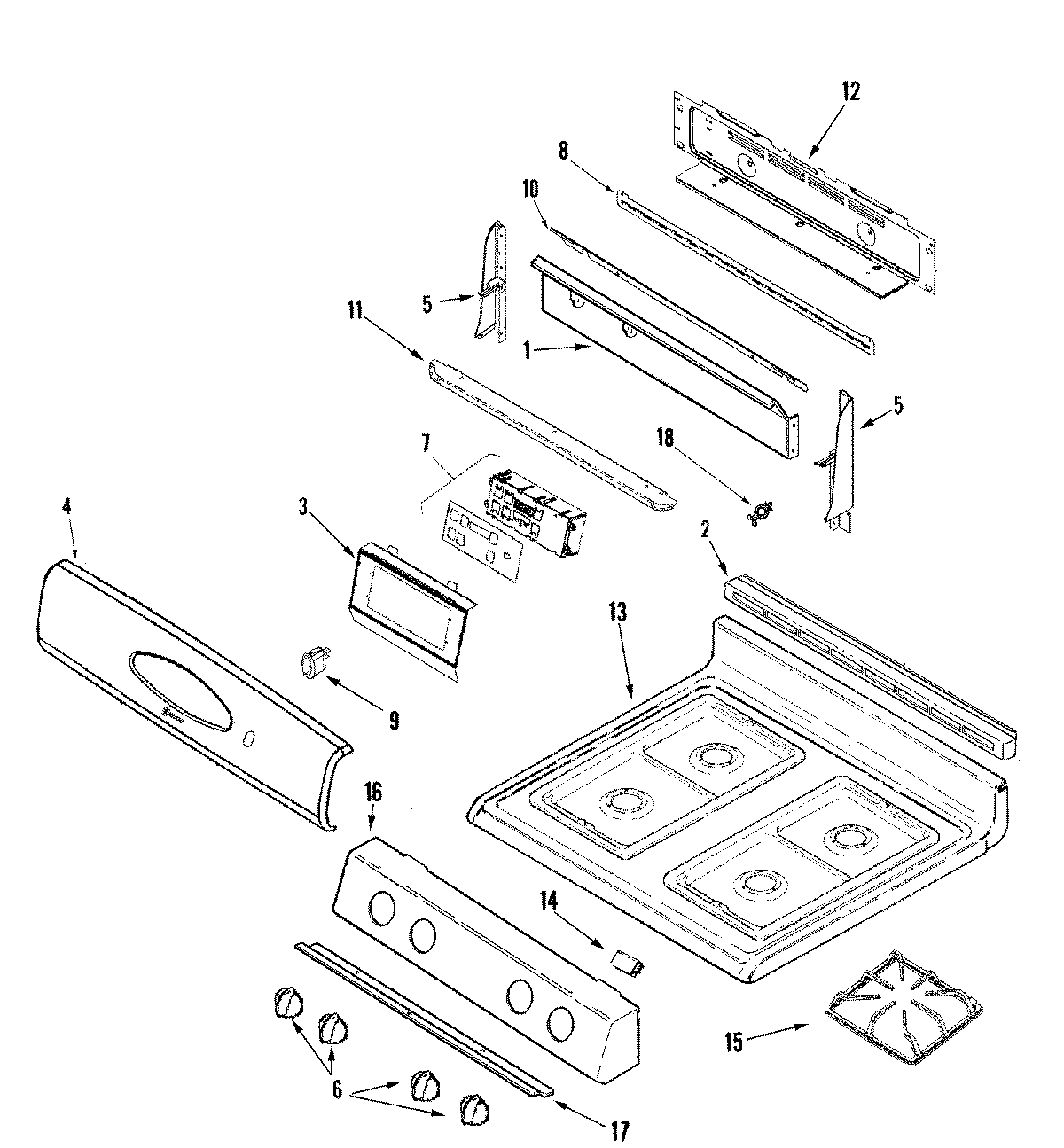

MGR4452BDQ 02 – CONTROL PANEL/TOP ASSEMBLY

MGR4452BDQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGR4452BDQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 7101P147-60
1MAY 74009779
2SCREW (10ABX1/4P TR ZN)
2MAY 74009796
3BRACKET, CLOCK
4MAY 74009110
5MAY 74010714
5WP74009541 Whirlpool Screw Assembly
5MAY 74010712
674009774 Whirlpool Oven Knob Bisque
7MAY 74009881
7WP74003976 Whirlpool Screw
8MAY 74009780
97403P984-60 Whirlpool RO Switch
10MAY 74009978
11MAY 74009798
11MAY 74009803
12MAY 74006536
12MAY 74010804
12WP90767 Whirlpool Screw
12MAY 71001394
13W11189172 Whirlpool Glide Drawer
13WP74005546 Whirlpool RU Spacer
13MAY 74004964
14MAY 74004827
15MAY 74003514
16MAY 74009830
17SCREW
17MAY 74002447
18CLIP, WIRE LOCK
