MGR4452BDQ 04 – DOOR/DRAWER (SERIES 13)

MGR4452BDQ 04 – DOOR/DRAWER (SERIES 13)

Written by

in

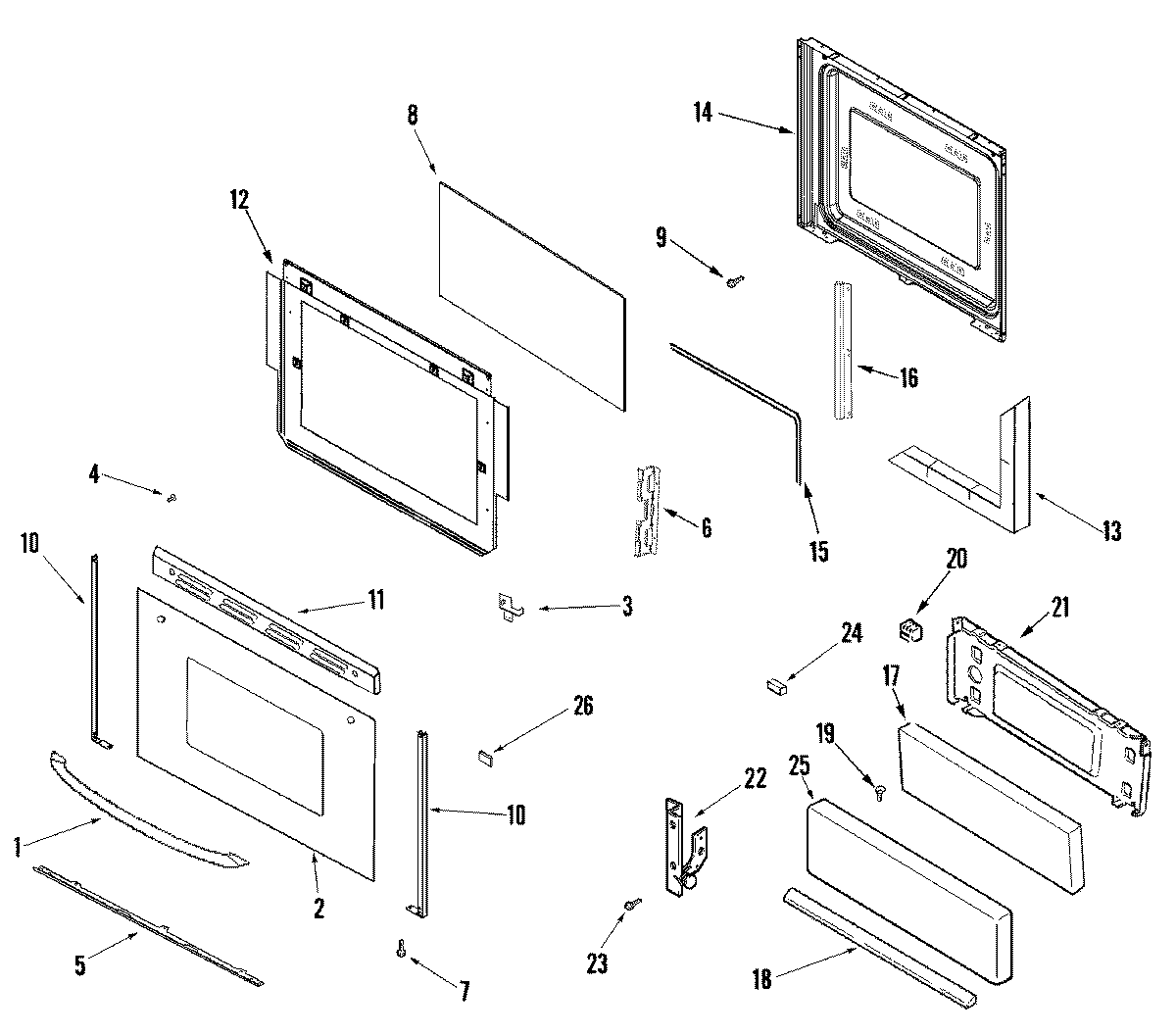

MGR4452BDQ 04 – DOOR/DRAWER (SERIES 13)

Products

PositionProduct
1MAY 74011107
1WP74011675 Whirlpool Door Handle
1HANDLE, DOOR (BSQ)
2MAY 74009733
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4WP74006515 Whirlpool Washer Screw
5SUPPORT, GLASS (BSQ)
6MAY 74003650
7WP74009541 Whirlpool Screw Assembly
874003645 Whirlpool Range Oven Door Inner Glass
10TRIM, DOOR (BSQ-LT)
10TRIM, DOOR (BSQ-RT)
11MAY 74009691
12MAY 74009502
123601F373-51 Whirlpool Baffle
12SCREW
13INSULATION, OVEN DOOR
14LINING, OVEN DOOR
14MAY 74009909
14NUT, SNAP (ROUND-BLK)
15WP7212P043-60 Whirlpool Oven Door Seal Gasket
16FRAME, GLASS
17MAY 74001814
18MAY 74007089
20MAY 74001663
21MAY 74007553
25MAY 74005046
