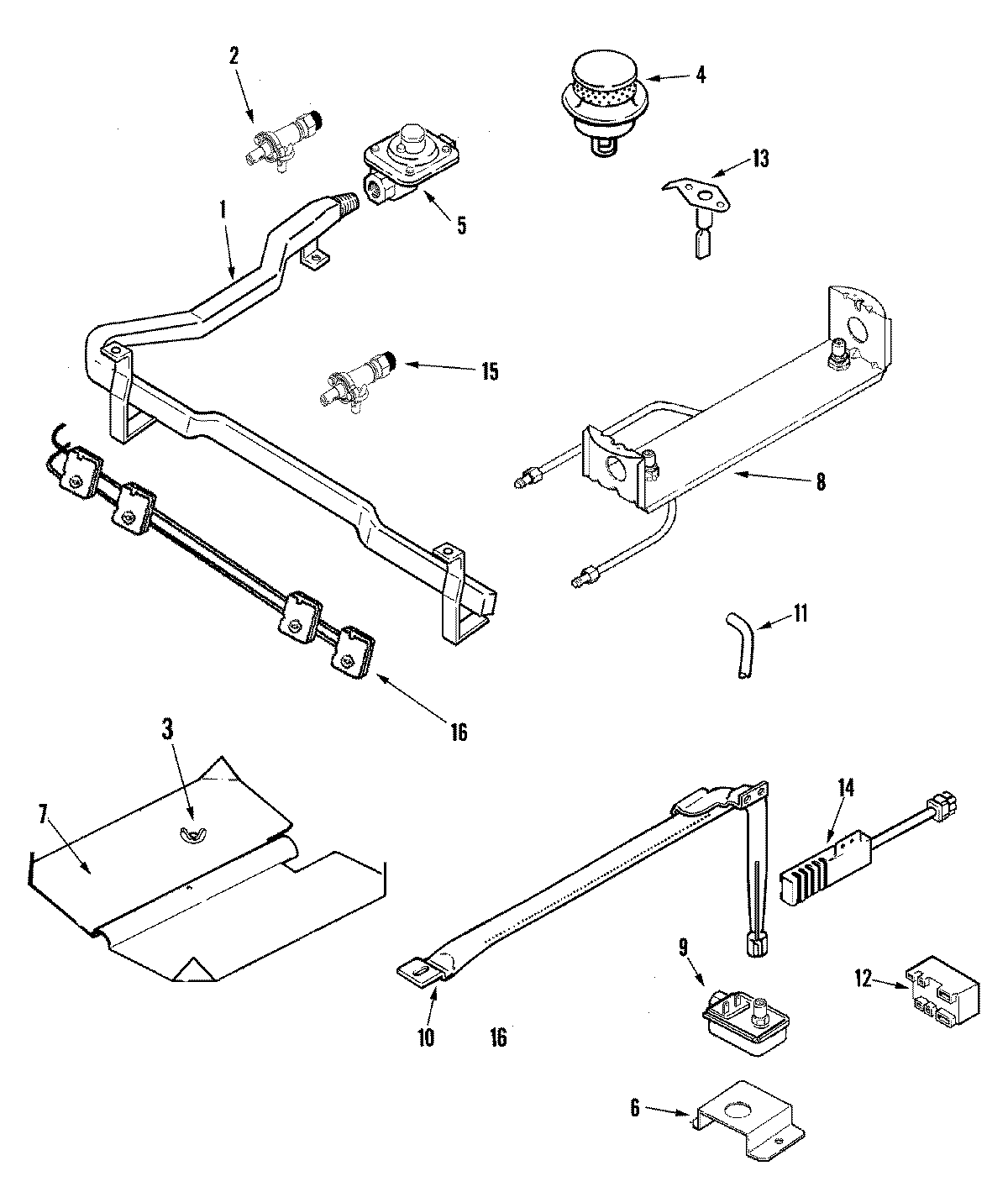

MGR4452BDS 05 – GAS CONTROLS

Products

Position	Product
1	MAY 74009886
2	MAY 74009770
2	MAY 74009462
3	NUT, WING
4	WP3412D024-09 Whirlpool Oven Burner Head
4	WP3412D021-09 Whirlpool Burner Assembly
5	MAY 74006282
6	MAY 74005051
7	MAY 74002393
8	WP5787D105-60 Whirlpool Orifice
8	WP5787D104-60 Whirlpool Orifice
9	MAY 74009416
9	MAY 74009891
10	SCREW
10	MAY 74002434
11	MAY 74006417
12	Module, Spark (4+0)
12	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
13	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
13	MAY 74004410
14	SCREW (10-24X5/16-NI)
14	74007498 Whirlpool Range Flat Igniter
15	MAY 74009427
15	MAY 74009460
16	WPW10180490 Whirlpool Wire Harness
17	WP7509P129-60 Whirlpool Conversion Kit
