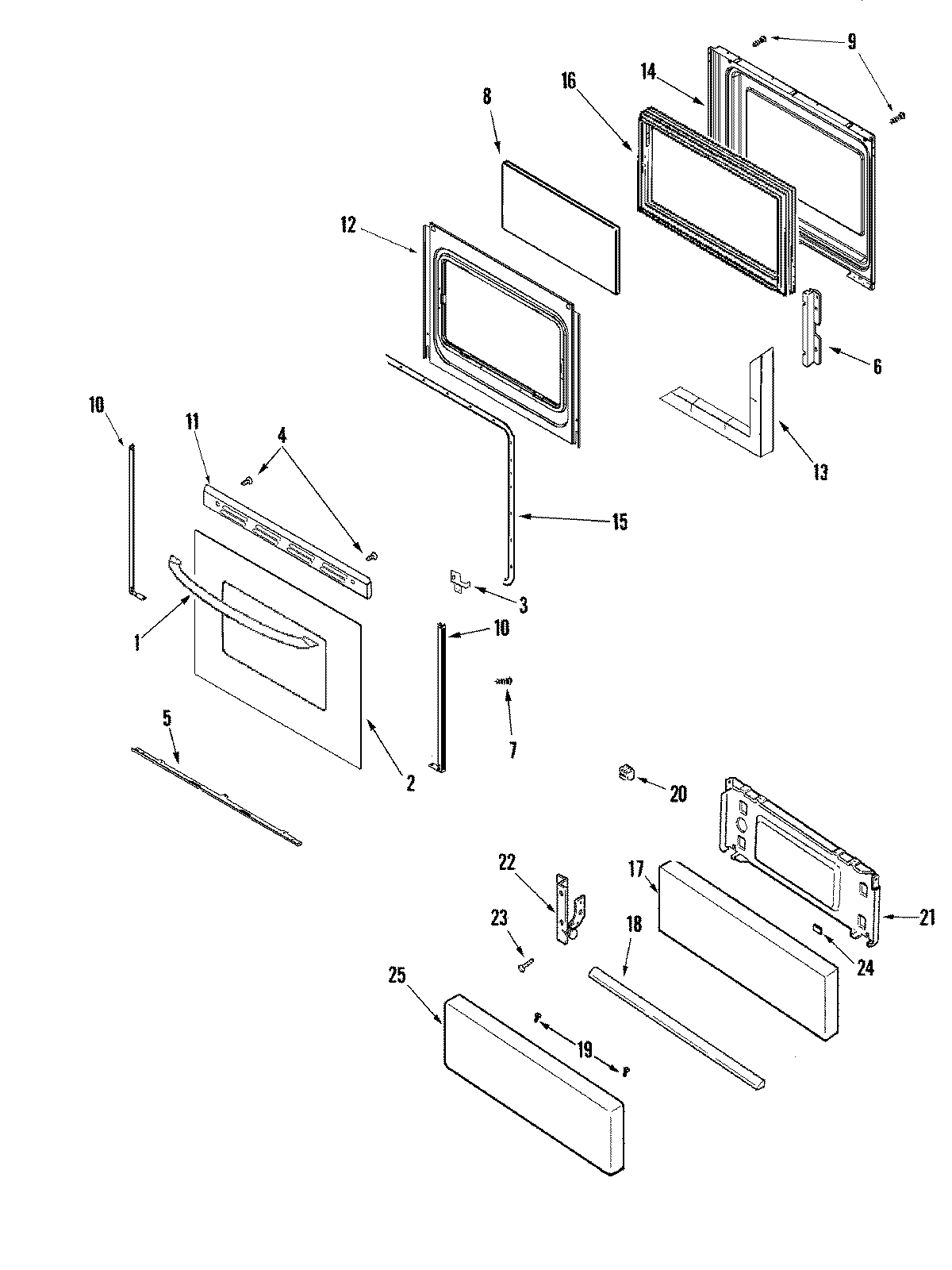

MGR4452BDW 03 – DOOR/DRAWER

Products

Position	Product
1	WP74011675 Whirlpool Door Handle
1	TAPE, FOIL 29`` X 2``
2	MAY 74009732
3	3801F831-45 Whirlpool Bracket Assembly
3	3801F832-45 Whirlpool Bracket
4	WP74006515 Whirlpool Washer Screw
5	WP3807F708-71 Whirlpool Support
6	MAY 74003650
7	WP98008544 Whirlpool Screw Assembly
8	74003645 Whirlpool Range Oven Door Inner Glass
9	SCREW
10	WP3608F117-71 Whirlpool Door Trim
10	WP3608F116-71 Whirlpool Door Trim
10	WP74009014 Whirlpool Double Tape
11	SPACER, RUBBER (BLK-SQUARE)
11	WP3608F141-71 Whirlpool Door Trim
12	MAY 74009502
12	MAY 7101P356-60
13	INSULATION, OVEN DOOR
14	MAY 74009909
14	NUT, SNAP (ROUND-BLK)
15	WP7212P043-60 Whirlpool Oven Door Seal Gasket
16	FRAME, GLASS
17	MAY 74001814
18	WP2411F013-71 Whirlpool Door Handle
20	MAY 74001663
21	MAY 74007553
23	MAY 74009897
24	WP74005546 Whirlpool RU Spacer
25	MAY 74001729
