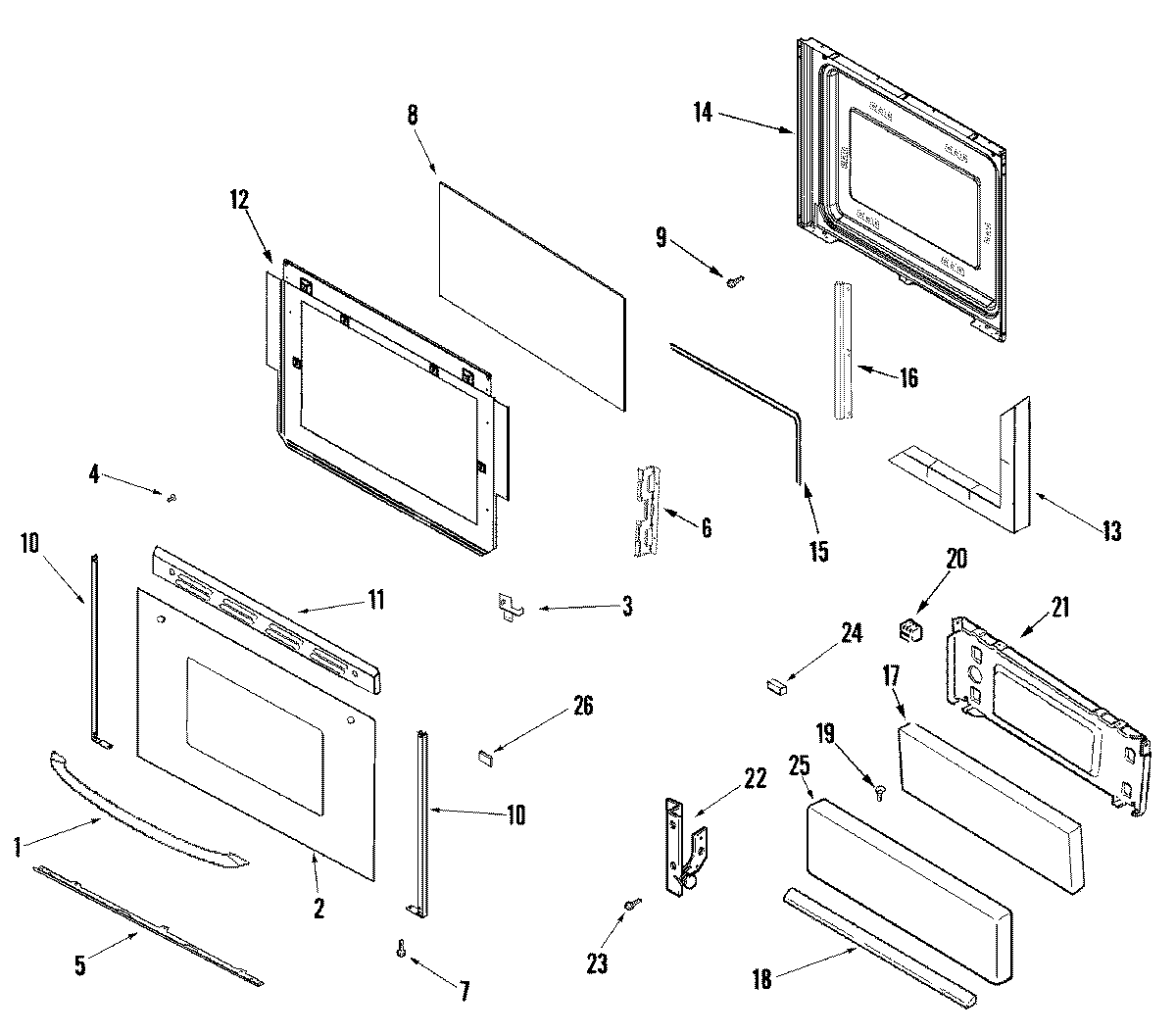

MGR4452BDW 04 – DOOR/DRAWER (SERIES 13)

MGR4452BDW 04 – DOOR/DRAWER (SERIES 13)

Written by

in

MGR4452BDW 04 – DOOR/DRAWER (SERIES 13)

Products

PositionProduct
1WP74011675 Whirlpool Door Handle
2MAY 74009732
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4WP74006515 Whirlpool Washer Screw
5WP3807F708-71 Whirlpool Support
6MAY 74003650
7WP98008544 Whirlpool Screw Assembly
874003645 Whirlpool Range Oven Door Inner Glass
10WP3608F116-71 Whirlpool Door Trim
10WP3608F117-71 Whirlpool Door Trim
11WP3608F141-71 Whirlpool Door Trim
123601F373-51 Whirlpool Baffle
13INSULATION, OVEN DOOR
14LINING, OVEN DOOR
15WP7212P043-60 Whirlpool Oven Door Seal Gasket
163801F886-51 Whirlpool Mounting Bracket
16SCREW
17MAY 74001814
18WP2411F013-71 Whirlpool Door Handle
20MAY 74001663
21MAY 74007553
23MAY 74009897
24WP74005546 Whirlpool RU Spacer
25MAY 74001729
26SPACER, RUBBER (BLK-SQUARE)
