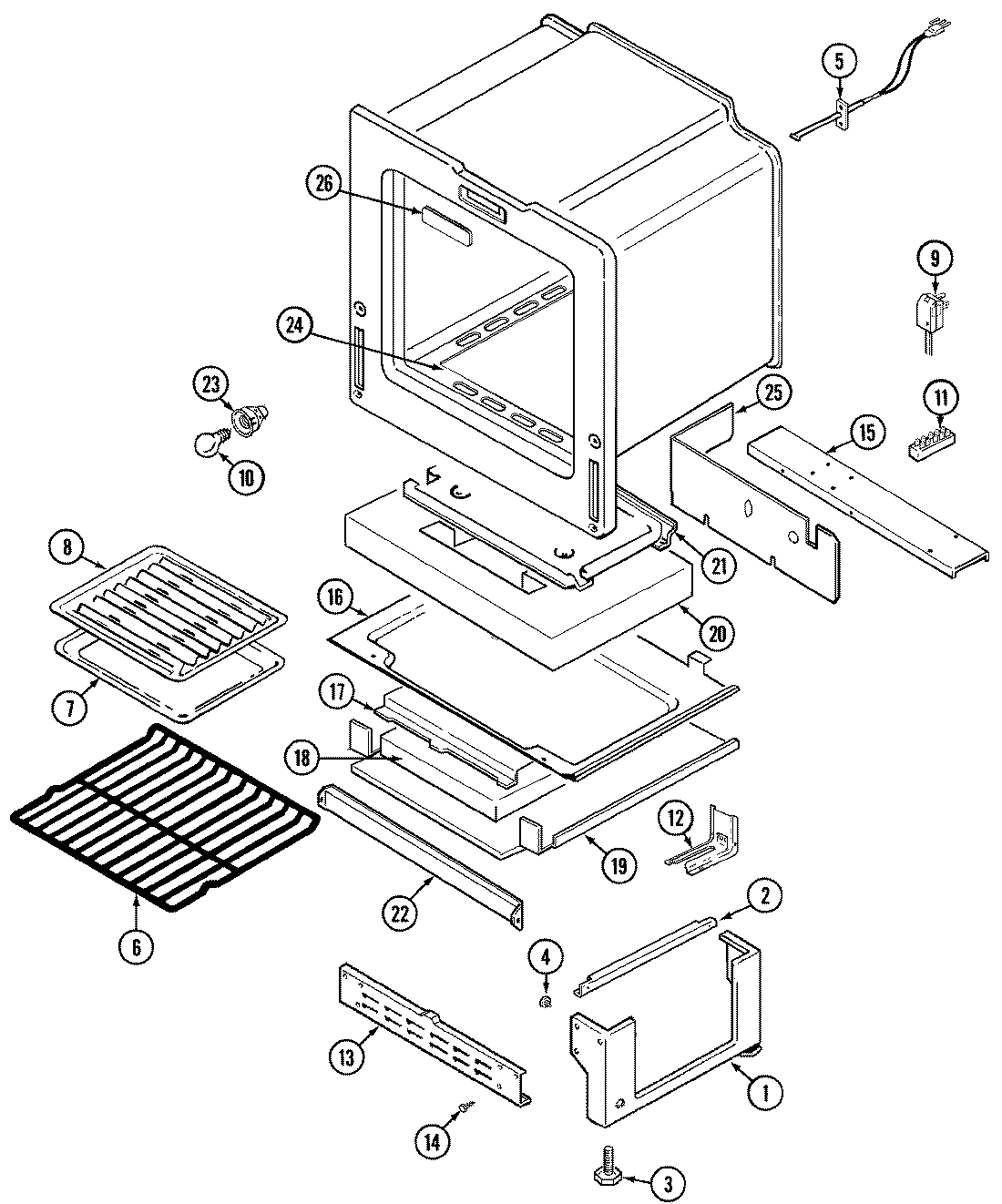

MGR4770ADW 05 – OVEN/BASE – Aparts

MGR4770ADW 05 – OVEN/BASE

Products

Position	Product
1	MAY 74003405
2	RUNNER, DRAWER
3	W11665456 Whirlpool Range Level Foot
4	MAY 74003566
5	MAY 74003413
6	WPW10282492 Whirlpool Oven Rack
7	MAY Y3401F02019
8	MAY Y3413F01619
9	MAY 7402P043-60
10	RANGE ONLY 40W 120V APPL BULB
11	MAY 7401P037-60
12	MAY 7101P344-60
12	MAY 74002311
13	MAY 4020F001-80
14	MAY 7101P290-60
15	MAY 74002593
16	MAY 74003242
17	MAY 3604F204-51
18	INSULATION, DRAWER & SHIELD
19	MAY 3604F205-51
20	MAY 74003503
21	MAY 74001651
22	BAFFLE, OVEN FRONT
23	MAY 74003387
23	SCREW
23	WP7407P182-60 Whirlpool Lamp
24	MAY 5504M004-19
24	BAFFLE, OVEN BOTTOM
25	MAY 74003329
26	MAY 7718P013-60
27	MAY 74003388
