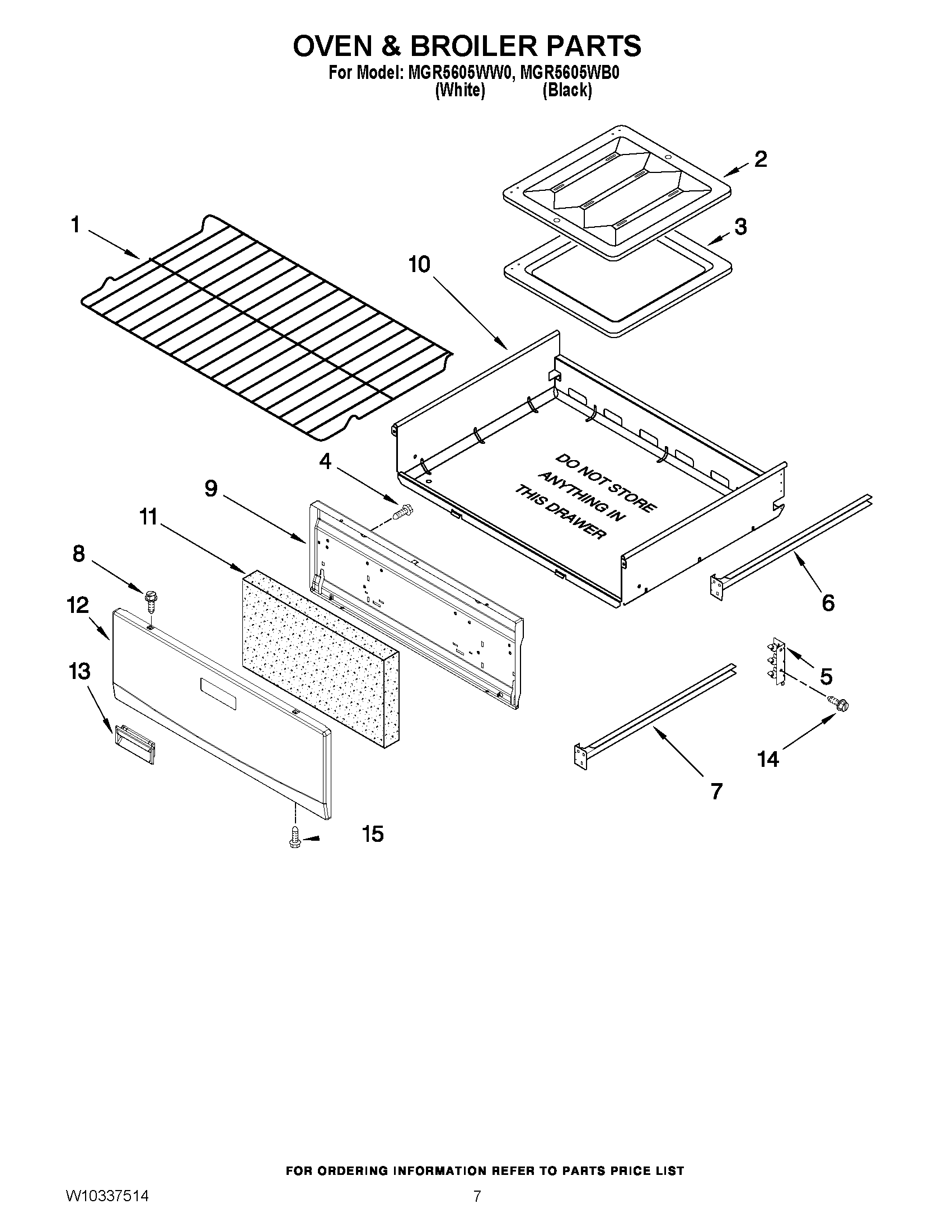

MGR5605WW0 05 – OVEN & BROILER PARTS

Products

Position	Product
1	RACK, OVEN
2	MAY 98003480
3	MAY 98016005
4	MAY 8533843
5	SUPPORT, TRAY (RIGHT)
5	SUPPORT, TRAY (LEFT)
6	GUIDE, FIXED (LEFT)
6	GUIDE, FIXED (RIGHT)
7	GUIDE, MOBILE (RIGHT)
7	GUIDE, MOBILE (LEFT)
8	SCREW (WHITE)
9	MAY W10162118
10	Storage, Drawer
11	MAY W10137230
12	MAY W10174741
12	MAY W10174742
13	Handle, Brlr Door (White)
13	MAY 98015643
14	SCREW (BLACK)
15	SCREW
