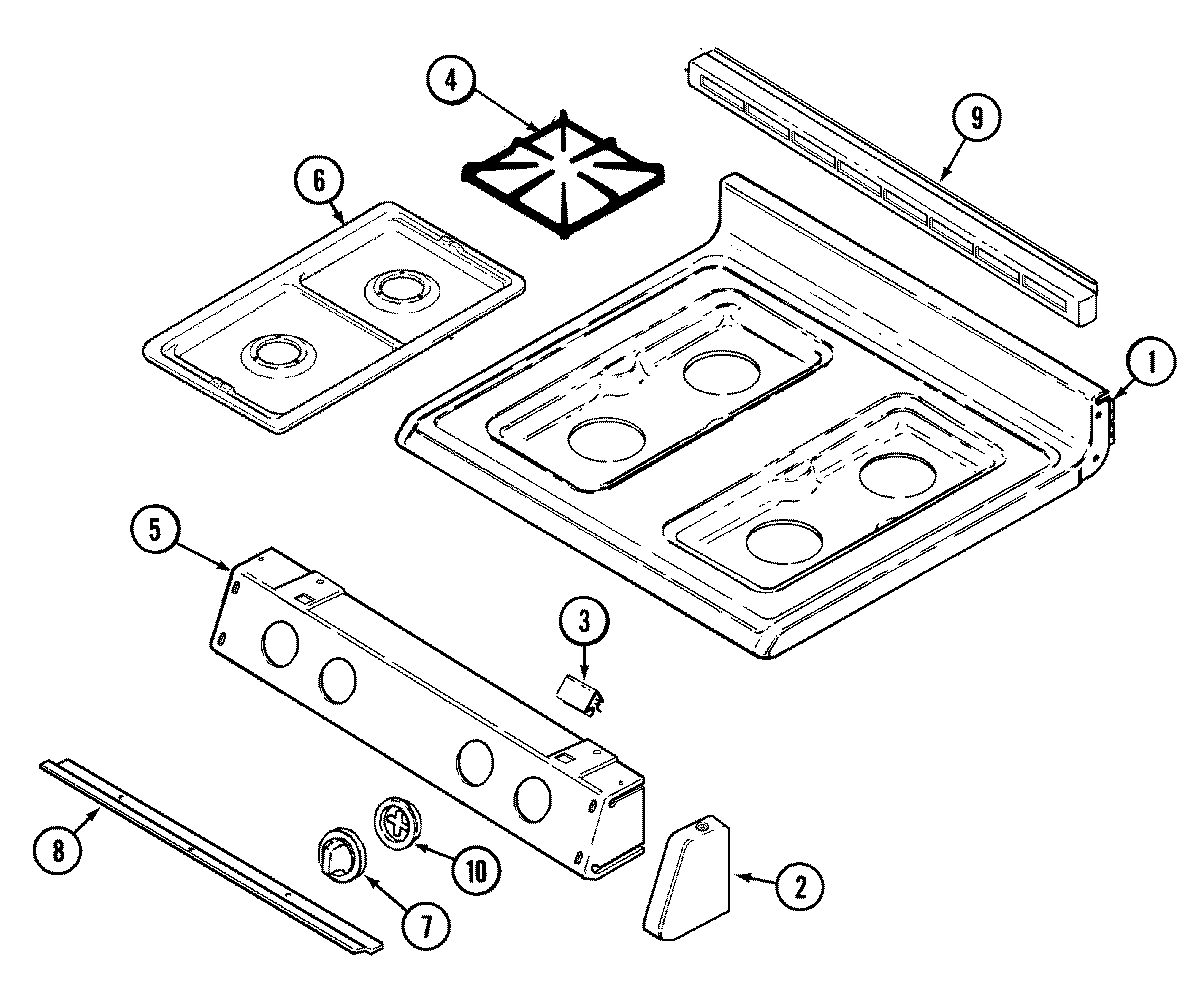

MGR5710ADQ 06 – TOP ASSEMBLY

MGR5710ADQ 06 – TOP ASSEMBLY

Written by

in

MGR5710ADQ 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74004964
1MAY 74001428
2W10828565 Whirlpool Screw
2MAY 74004968
2MAY 74004967
3MAY 74004827
4MAY 74003514
5MAY 74004969
5SCREW (8BX3/8-NI)
6MAY 5401A452-60
7MAY 74004970
7MAY 74005687
8SCREW
8MAY 74002447
9SCREW (10ABX1/4P TR ZN)
9MAY 74003520
10MAY 74004971
10MAY 74005436
