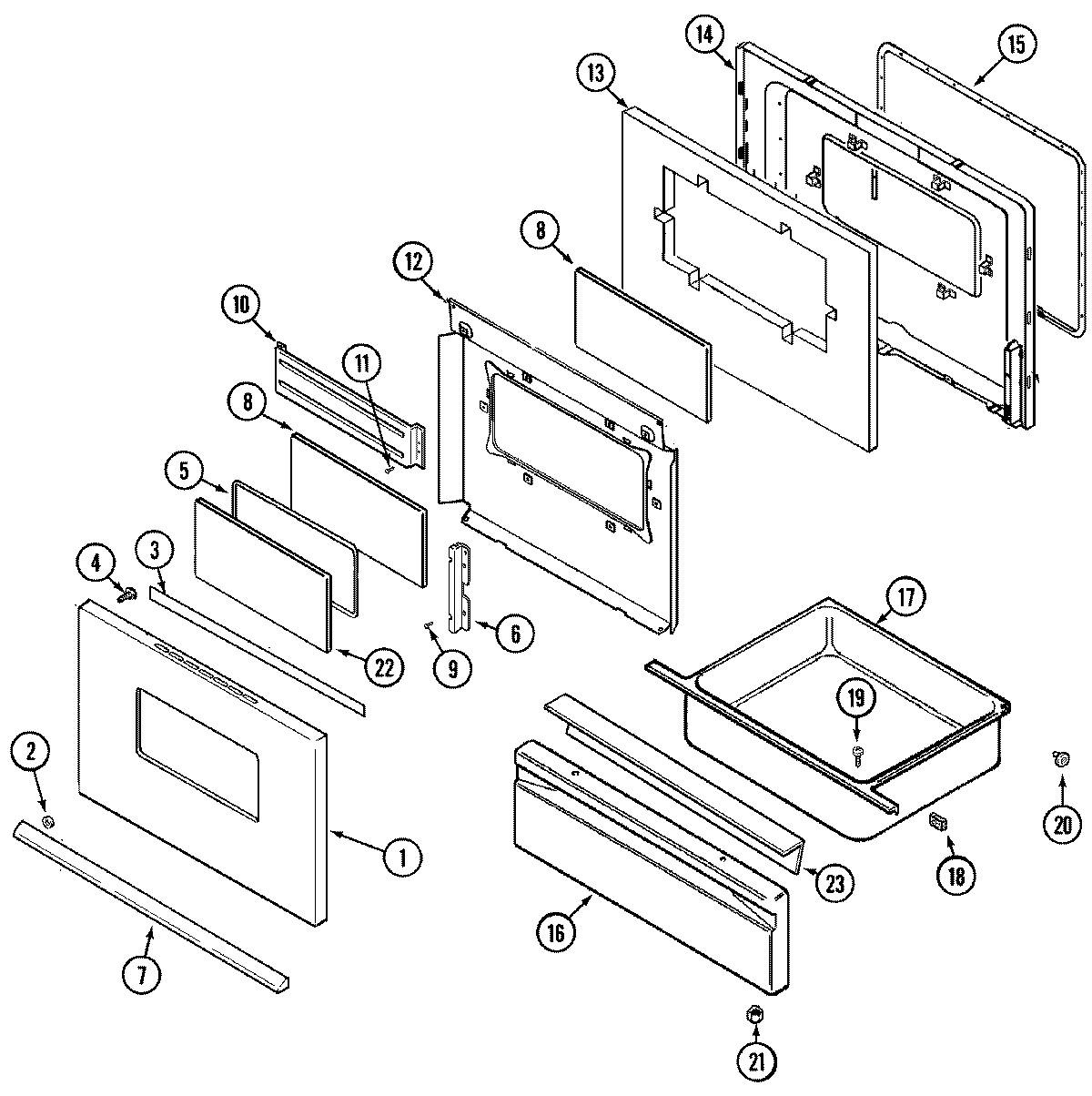

MGR5710ADW 03 – DOOR/DRAWER (ADW)

MGR5710ADW 03 – DOOR/DRAWER (ADW)

Written by

in

MGR5710ADW 03 – DOOR/DRAWER (ADW)

Products

PositionProduct
1WP98008544 Whirlpool Screw Assembly
1MAY 74005267
1MAY 74003470
2WP74005058 Whirlpool Spacer Assembly
3MAY 74003472
3TAPE, FOIL (3“ WIDE)
4WP3387230 Whirlpool Screw
5GASKET, WINDOW
6MAY 74003048
7WP2411F013-71 Whirlpool Door Handle
8GLASS, INNER
10MAY 74004901
11MAY 7101P356-60
12SCREW
12MAY 74001843
13MAY 74001842
14MAY 74003244
15GASKT-DOOR OVEN
16PANEL, DRAWER (WHT)
17MAY 71003042
18WP854334 Whirlpool Air Conditioner Sealing Strip
20WP74004078 Whirlpool Door Roller
20WP488130 Whirlpool Air Conditioner Nut
21WPW10131078 Whirlpool Nut Assembly
22MAY 74003049
23LINING, DRAWER PANEL
