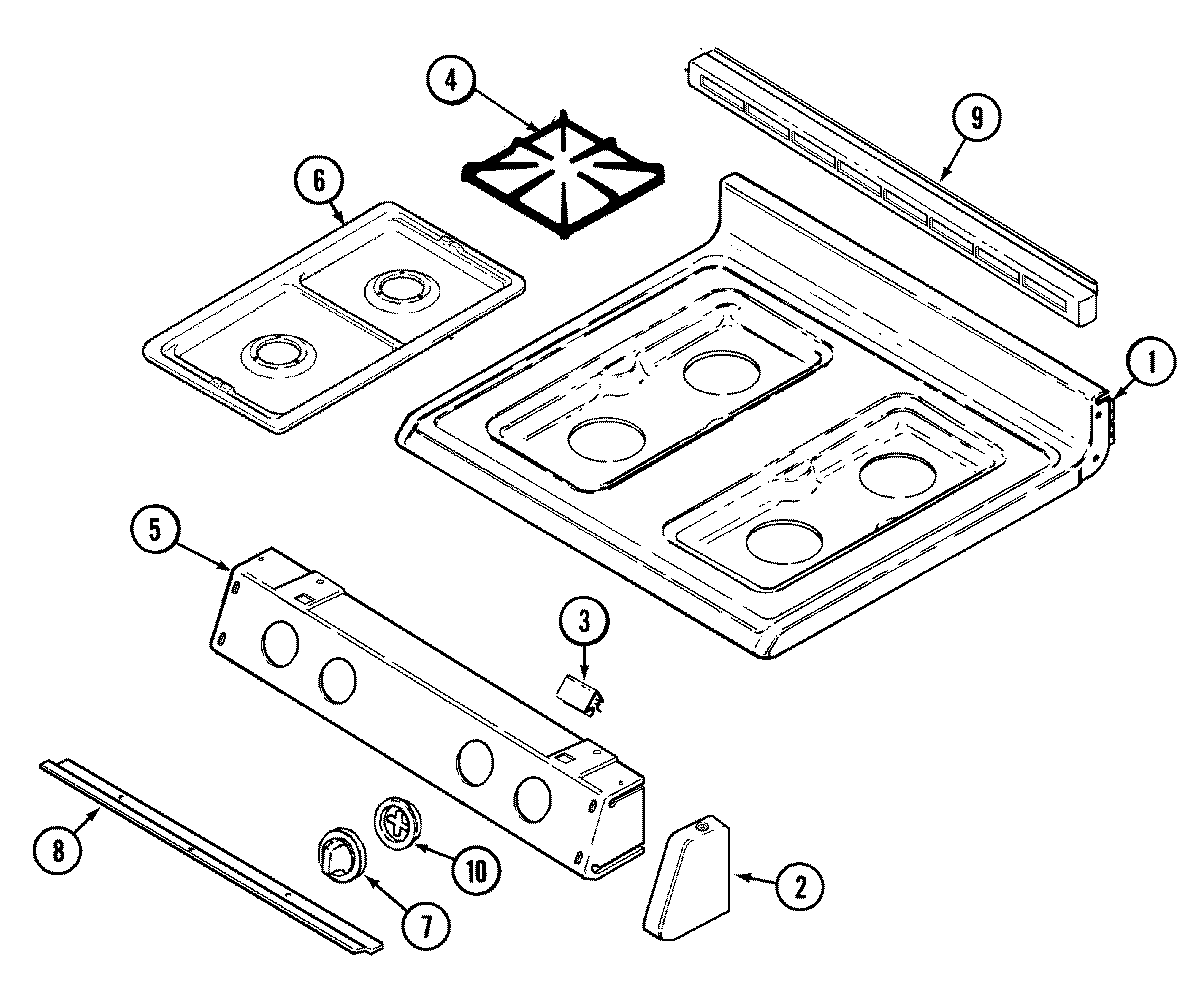

MGR5710ADW 07 – TOP ASSEMBLY

MGR5710ADW 07 – TOP ASSEMBLY

Written by

in

MGR5710ADW 07 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74001428
1MAY 74003512
2MAY 74003515
2W10828565 Whirlpool Screw
2MAY 74003516
3MAY 74004827
4MAY 74001061
5MAY 74003526
5SCREW (8BX3/8-NI)
6MAY 5401A452-60
7MAY 74005682
7WP74003769 Whirlpool Valve Knob
8SCREW
8MAY 74002447
9SCREW (10ABX1/4P TR ZN)
9MAY 74003519
10W10856847 Whirlpool Knob Bezel
10MAY 74005306
