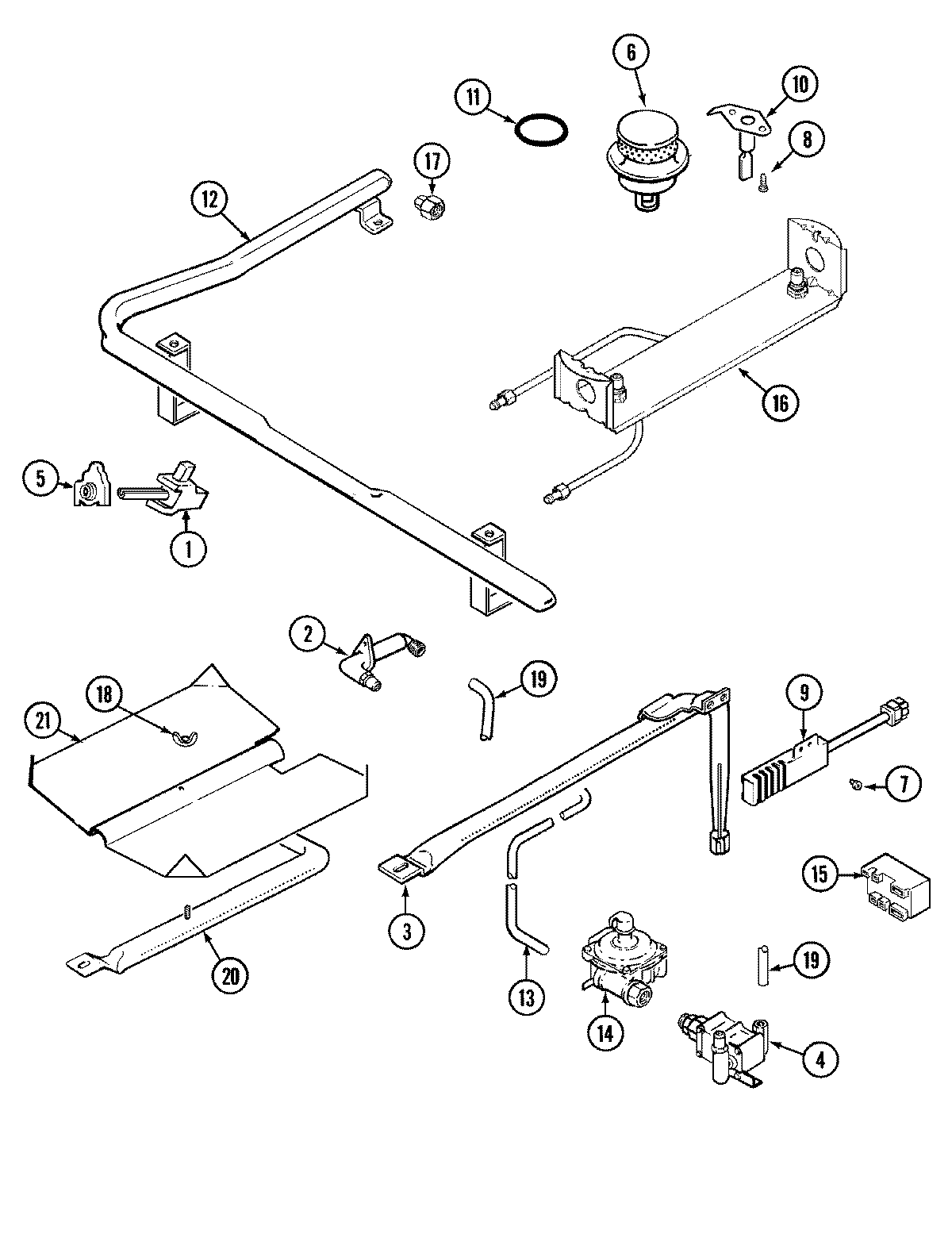

MGR5720ADL 04 – GAS CONTROLS

Products

Position	Product
1	MAY 7101P044-60
1	MAY 7502P251-60
2	MAY 3605F186-45
2	MAY 7507P088-60
3	MAY 3807F446-45
3	MAY 3403D043-45
4	WP74006427 Whirlpool Oven Valve
5	WP7403P279-60 Whirlpool Igniter Switch
6	MAY 3412D018-09
6	WP3412D024-09 Whirlpool Oven Burner Head
7	WP3351614 Whirlpool Screw
8	MAY 7101P315-60
9	MAY 4005F421-45
9	MAY 7432P076-60
10	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
11	MAY 74002745
12	SCREW
12	MAY 74003504
13	MAY 3414F103-44
14	WP74006429 Whirlpool Regulator
15	MAY 74003288
16	WP5787M052-60 Whirlpool Fitting
16	MAY 74003528
17	MAY 7103P121-60
18	NUT, WING
19	MAY 1555258K
19	MAY 3414F102-44
20	MAY 3403D024-45
21	MAY 3601F217-47
22	MAY 74002305
22	MAY 74002306
22	MAY 5125A312-60
23	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
