MGR5720ADL 06 – TOP ASSEMBLY – Aparts

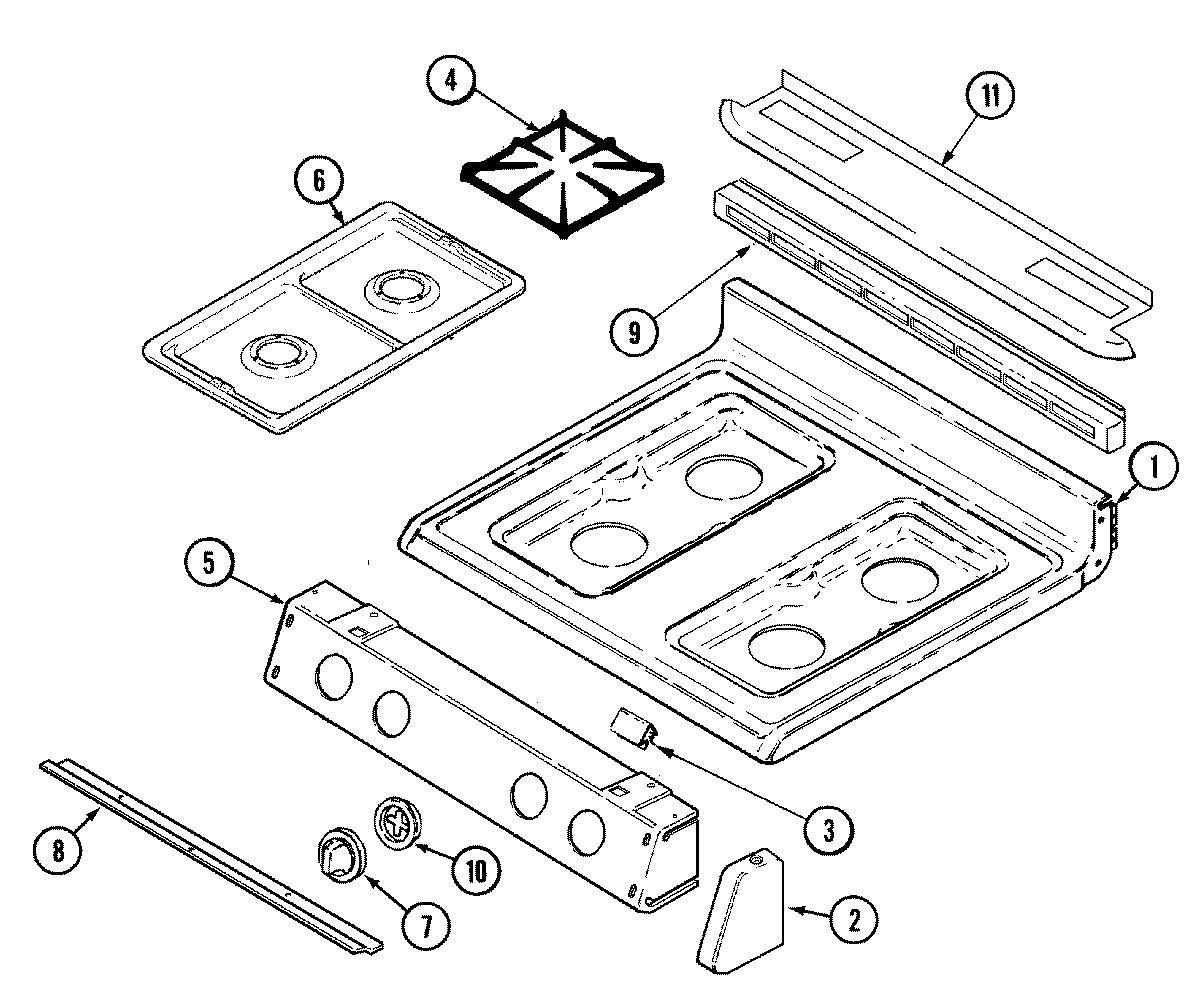

MGR5720ADL 06 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74003513
1	MAY 74001428
2	MAY 74003498
2	MAY 74003497
3	MAY 7112P087-60
3	MAY 74004827
4	WP7518P464-60 Whirlpool Burner Grate
5	MAY 74003802
5	MAY 7101P074-60
5	SCREW (8BX3/8-NI)
6	MAY 5401A452-60
7	WP74003781 Whirlpool Valve Knob
8	SCREW
8	MAY 74002447
9	SCREW (10ABX1/4P TR ZN)
9	MAY 74003501
10	WP74003782 Whirlpool Knob Bezel
