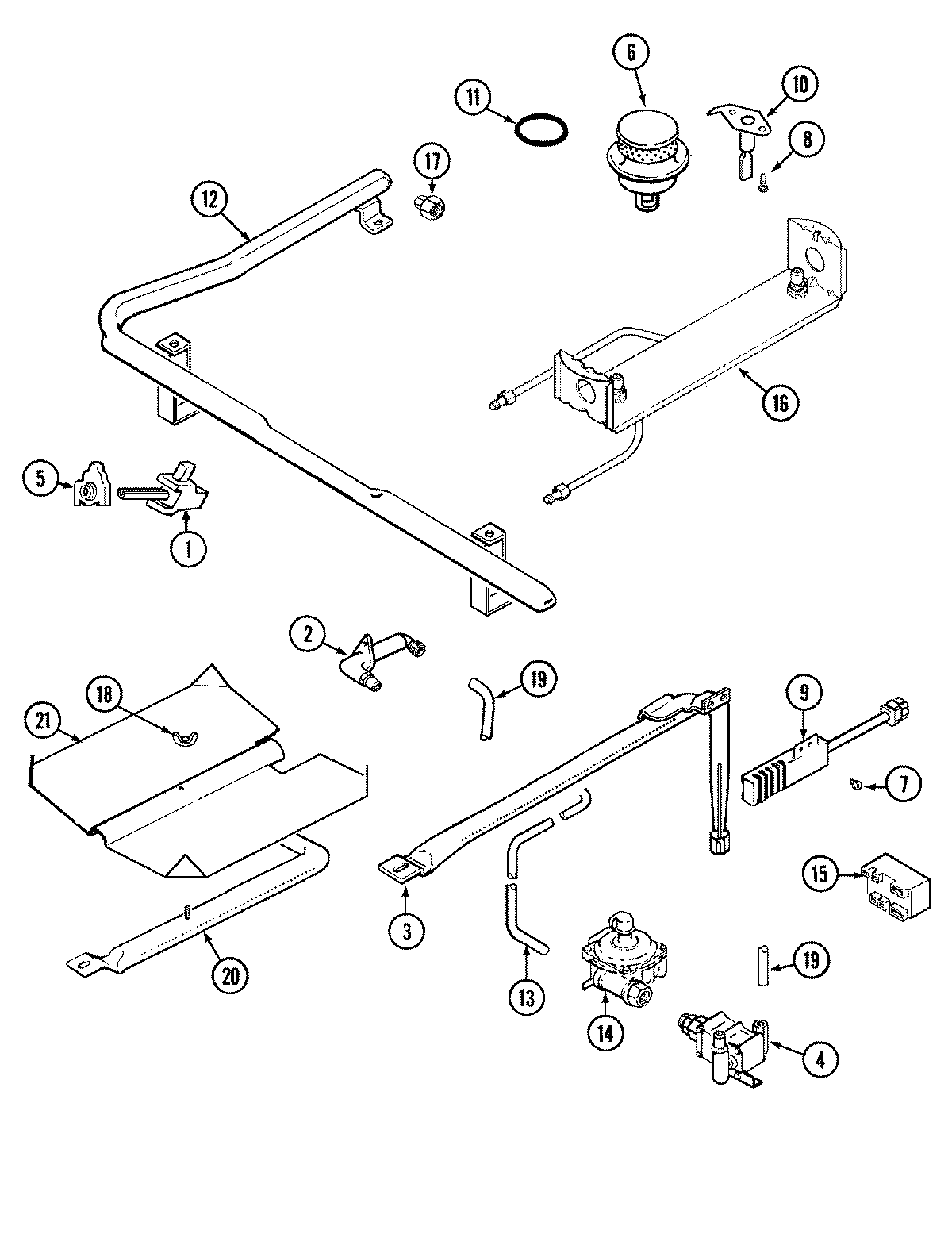

MGR5720ADT 04 – GAS CONTROLS

Products

PositionProduct
1MAY 71003231
1MAY 74004303
1MAY 74003924
1WP8273096 Whirlpool Screw
2MAY 7507P088-60
2MAY 74004307
3MAY 3807F446-45
3MAY 74003960
4WP74006427 Whirlpool Oven Valve
5MAY 74002533
5WP7403P279-60 Whirlpool Igniter Switch
6WP3412D024-09 Whirlpool Oven Burner Head
7SCREW (10-24X5/16-NI)
8MAY Y707113
9MAY 7432P075-60
9MAY 4005F421-45
1074004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
12MAY 74005681
12MAY 74003504
12SCREW
13MAY 3414F103-44
14WP74006429 Whirlpool Regulator
158215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
16WP5787M052-60 Whirlpool Fitting
16MAY 74003528
17MAY 7103P130-60
18NUT, WING
19MAY 1555258K
19MAY 3414F102-44
20MAY 74004076
21MAY 3601F217-47
22MAY 71003540
23NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
