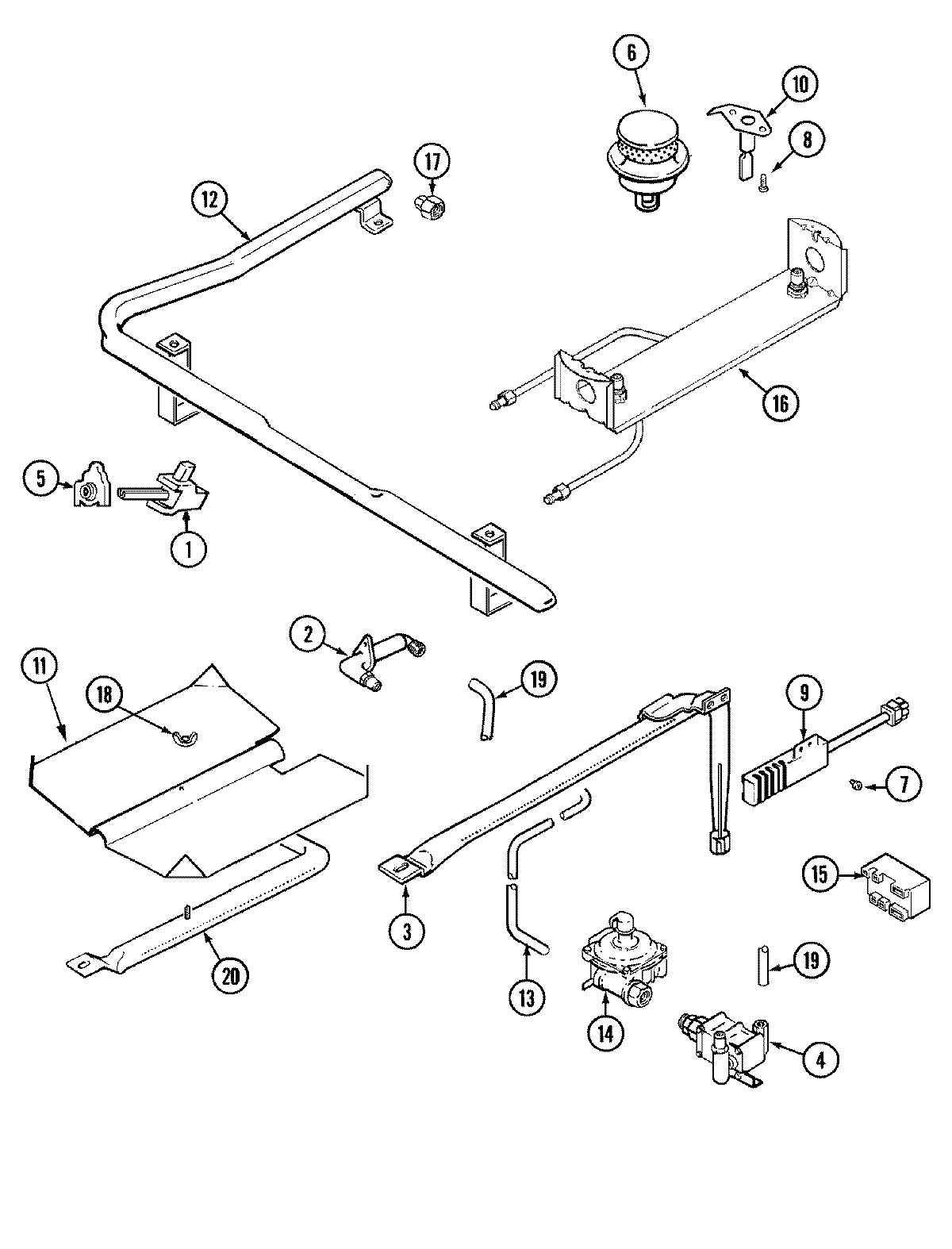

MGR5720BDQ 04 – GAS CONTROLS

Products

Position	Product
1	WP8273096 Whirlpool Screw
1	MAY 71003231
1	MAY 74003924
1	MAY 74004303
2	MAY 74004307
2	MAY 74006421
3	MAY 74003960
3	MAY 3807F446-45
4	WP74006427 Whirlpool Oven Valve
5	MAY 74002533
5	WP7403P279-60 Whirlpool Igniter Switch
6	MAY 74003966
7	SCREW (10-24X5/16-NI)
8	MAY Y707113
9	MAY 7432P075-60
9	MAY 4005F421-45
10	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
11	MAY 3601F217-47
12	MAY 74006422
13	MAY 74006428
14	WP74006429 Whirlpool Regulator
15	MAY 74006458
15	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
16	MAY 74003506
16	WP5787M052-60 Whirlpool Fitting
17	MAY 7103P130-60
18	NUT, WING
19	MAY 1555258K
19	MAY 74006430
20	MAY 74004076
21	MAY 12001323
22	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
