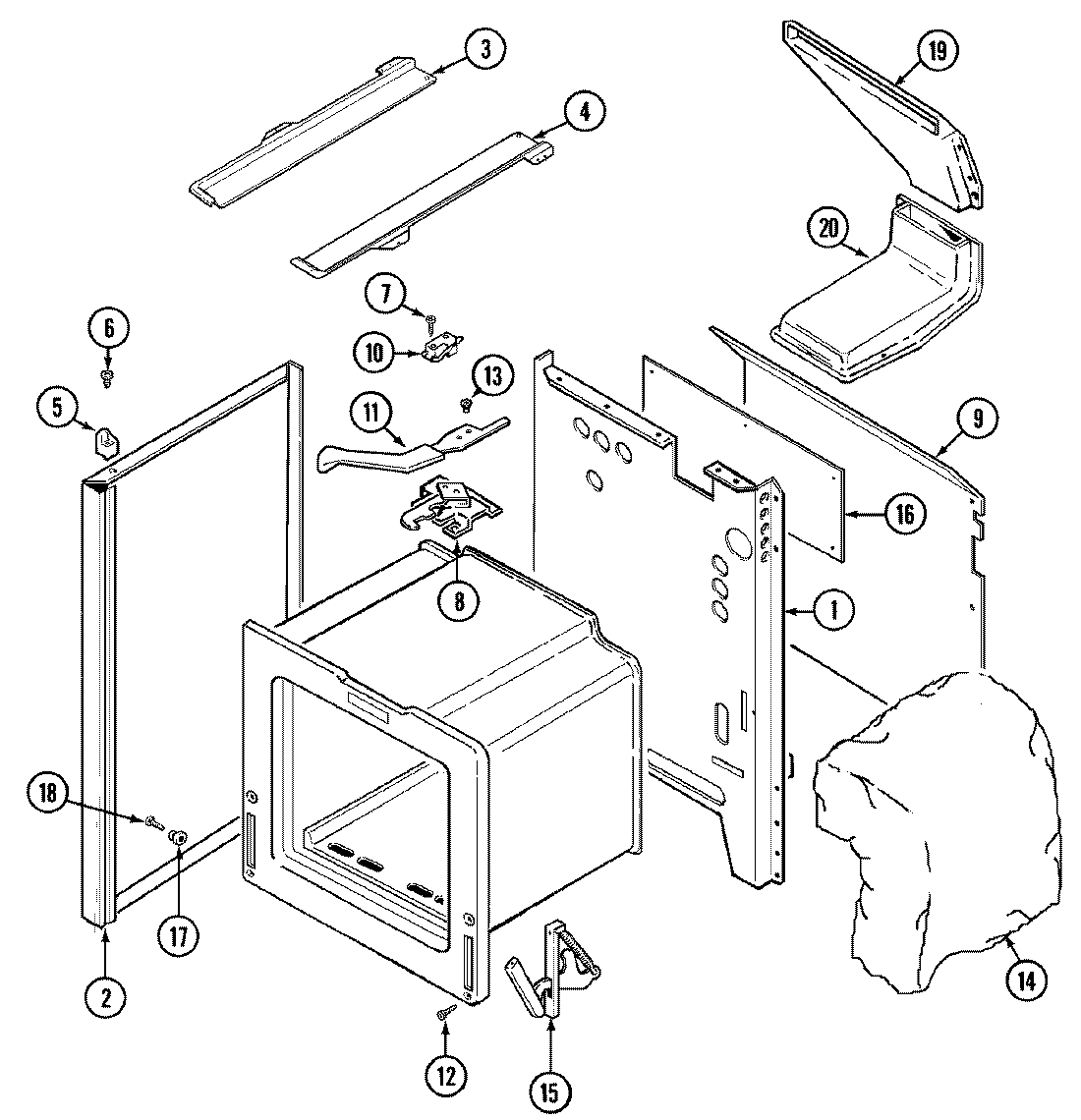

MGR5729ADA 01 – BODY (ADA, ADH, ADL, ADQ, ADW)

MGR5729ADA 01 – BODY (ADA, ADH, ADL, ADQ, ADW)

Written by

in

MGR5729ADA 01 – BODY (ADA, ADH, ADL, ADQ, ADW)

Products

PositionProduct
1MAY 74003451
2MAY 74003237
2MAY 8270P078-60
3MAY 74002633
4MAY 74002632
5SPACER, MAIN TOP (RT)
5SPACER, MAIN TOP (LT)
6MAY 7101P313-60
7MAY 7101P330-60
8MAY 74001084
8MAY 74003502
9MAY 4005F331-51
10MAY 74003383
11MAY 74001057
11MAY 74003006
12SCREW (10-24X5/16-NI)
13SCREW, LEVER
14WP74010942 Whirlpool Insulation
14MAY 74003381
14MAY 74003385
15WP74011140 Whirlpool Oven Hinge
16MAY 3604F165-51
17MAY 8004P024-60
18SCREW
19MAY 4022W007-19
19SCREW (8BX3/8-NI)
20WP74003976 Whirlpool Screw
20MAY 74002367
