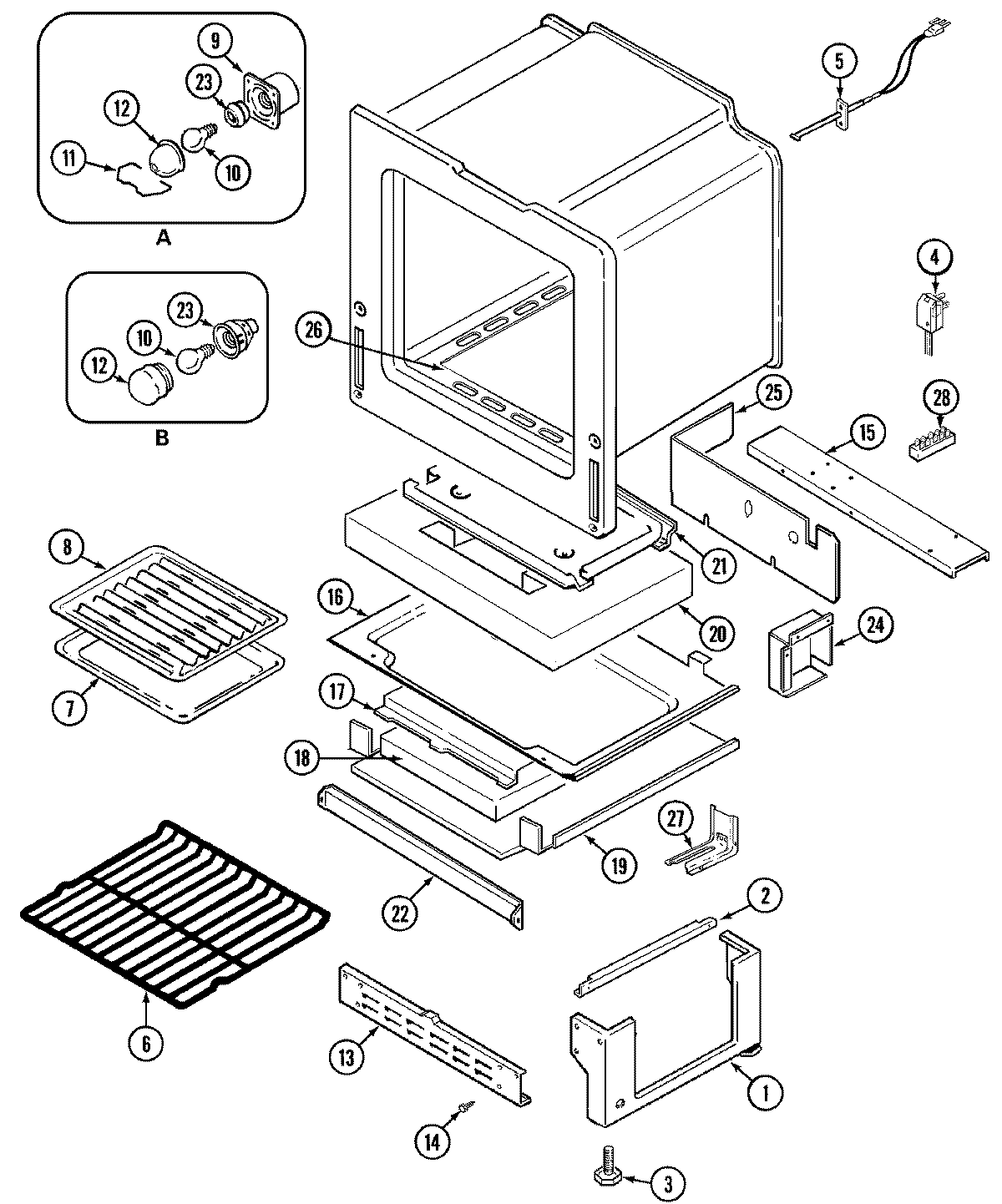

MGR5729ADL 05 – OVEN/BASE (ADA, ADH, ADL, ADQ, ADW)

MGR5729ADL 05 – OVEN/BASE (ADA, ADH, ADL, ADQ, ADW)

Written by

in

MGR5729ADL 05 – OVEN/BASE (ADA, ADH, ADL, ADQ, ADW)

Products

PositionProduct
1MAY 74003405
2RUNNER, DRAWER
3W11665456 Whirlpool Range Level Foot
4MAY 7402P043-60
5MAY 74003413
6WPW10282492 Whirlpool Oven Rack
7MAY Y3401F02019
8MAY Y3413F01619
9MAY 74003388
10RANGE ONLY 40W 120V APPL BULB
11MAY 74003391
12WP9781049 Whirlpool Light Lens
12MAY 74003389
13MAY 4020F001-80
15MAY 74002593
16MAY 74003242
17MAY 3604F204-51
18INSULATION, DRAWER & SHIELD
19MAY 3604F205-51
20MAY 74003503
21MAY 74001651
22BAFFLE, OVEN FRONT
22WP74003976 Whirlpool Screw
23WP7407P182-60 Whirlpool Lamp
23MAY 74003387
24MAY 3807F473-51
25MAY 74003329
25SCREW
26MAY 5504M004-19
27MAY 74002311
27MAY 7101P344-60
28MAY 7401P037-60
