MGR5729ADT 01 – BODY (ADT) – Aparts

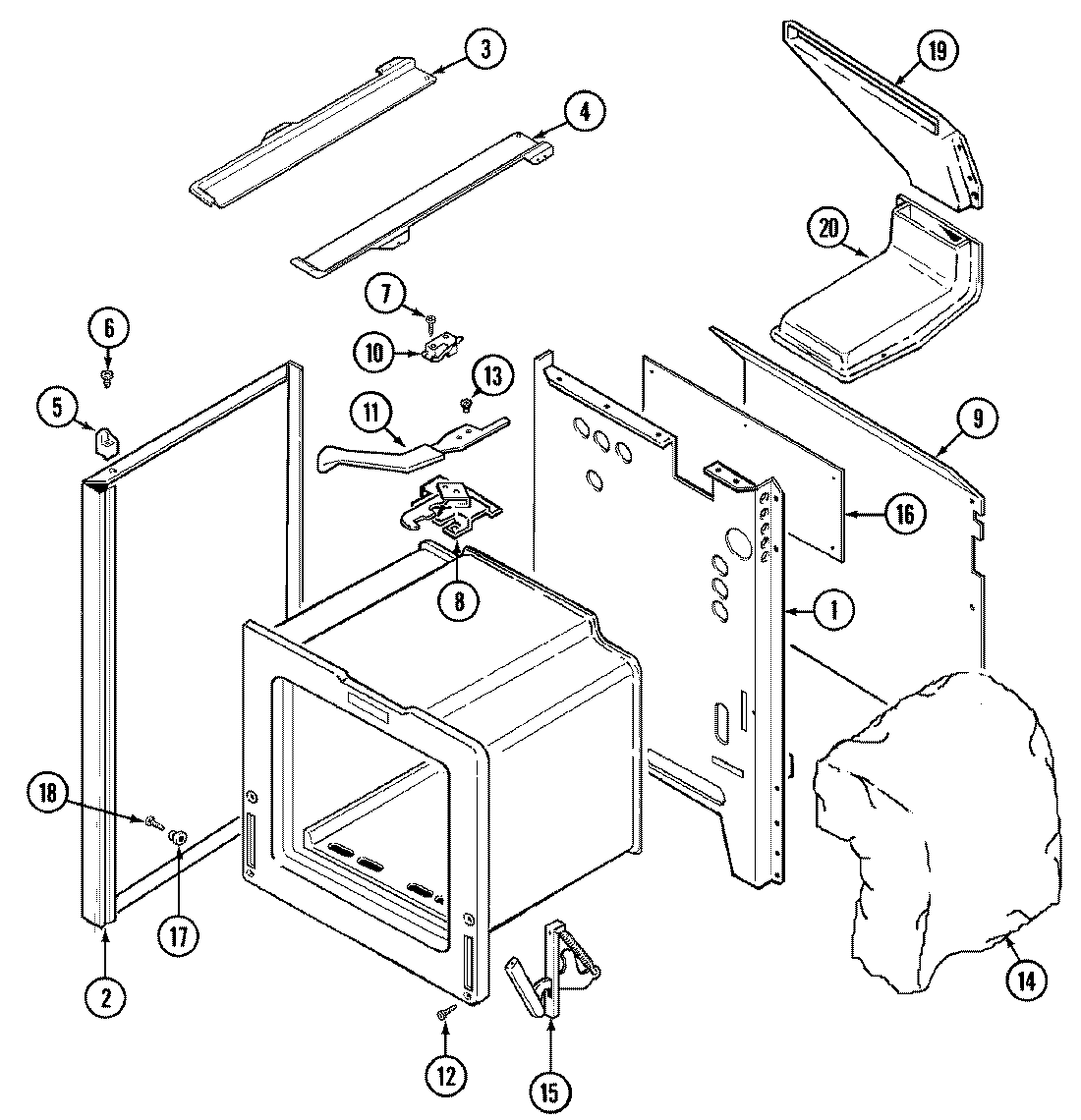

MGR5729ADT 01 – BODY (ADT)

Products

Position	Product
1	MAY 74005216
2	TAPE, FOIL (3`` WIDE)
2	MAY 74004965
3	MAY 74002633
4	MAY 74002632
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7101P313-60
7	MAY 7101P330-60
8	MAY 74003502
8	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
8	MAY 74001084
9	MAY 74003816
10	MAY 74003383
11	LEVER, LATCH (BLK)
12	SCREW (10-24X5/16-NI)
13	SCREW, LEVER
14	WP74010942 Whirlpool Insulation
14	MAY 74003385
14	MAY 74003381
15	WP74011140 Whirlpool Oven Hinge
16	MAY 3604F165-51
16	SCREW
17	MAY 8004P024-60
18	W11693756 Whirlpool Screw Assembly
18	MAY 74001449
19	MAY 4022W007-19
19	SCREW (8BX3/8-NI)
20	MAY 74002367
20	WP74003976 Whirlpool Screw
