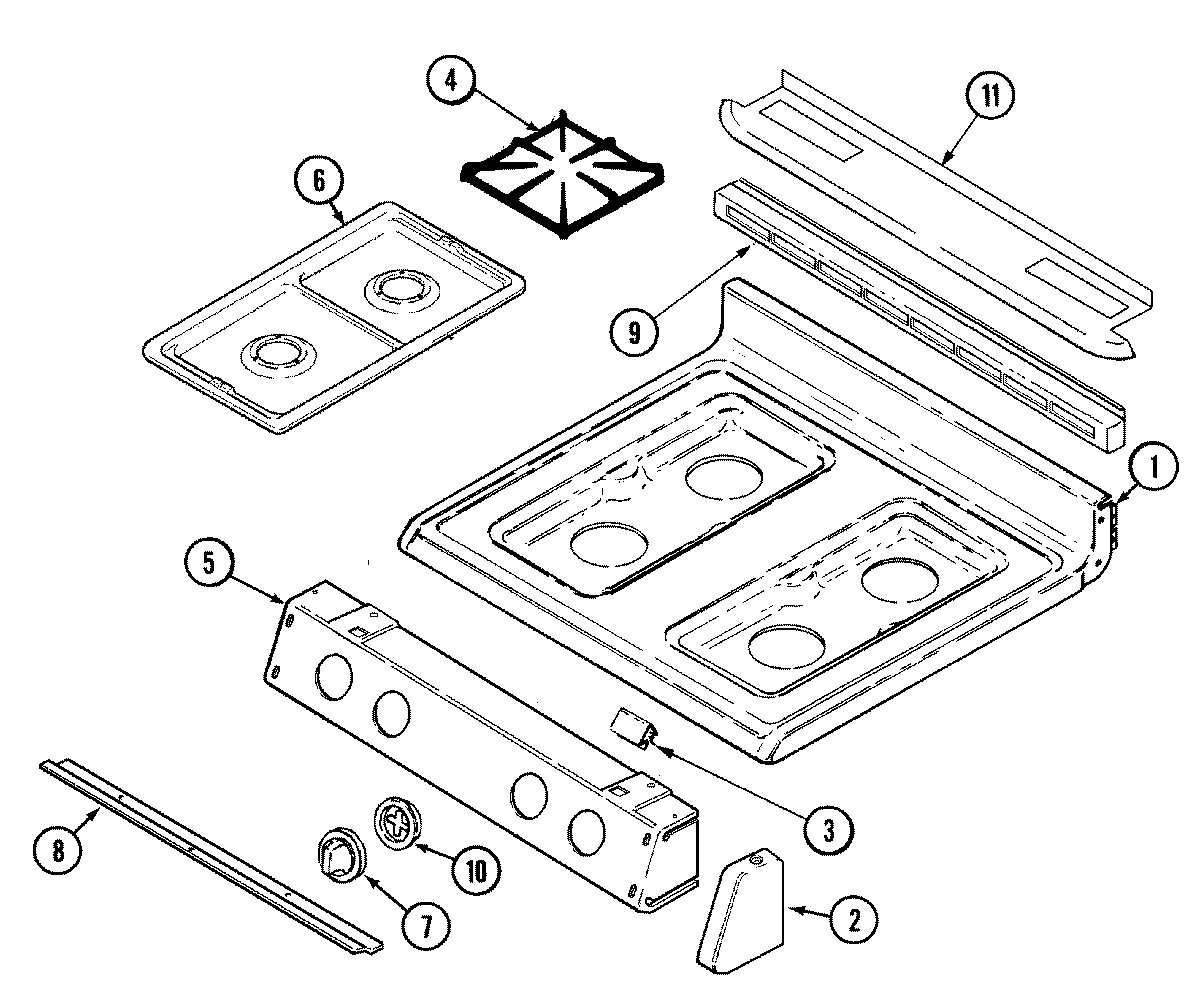

MGR5730ADH 06 – TOP ASSEMBLY

MGR5730ADH 06 – TOP ASSEMBLY

Written by

in

MGR5730ADH 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74003512
2MAY 74003497
2MAY 74003860
2MAY 74003498
3MAY 7112P087-60
3MAY 74004827
4MAY 74003779
5MAY 74003780
5SCREW (8BX3/8-NI)
6MAY 5401A452-60
7WP74003781 Whirlpool Valve Knob
7MAY 74005689
8MAY 74002447
9MAY 74003501
9SCREW (10ABX1/4P TR ZN)
10WP74003782 Whirlpool Knob Bezel
10MAY 74005690
