MGR5730ADQ 03 – DOOR/DRAWER

MGR5730ADQ 03 – DOOR/DRAWER

Written by

in

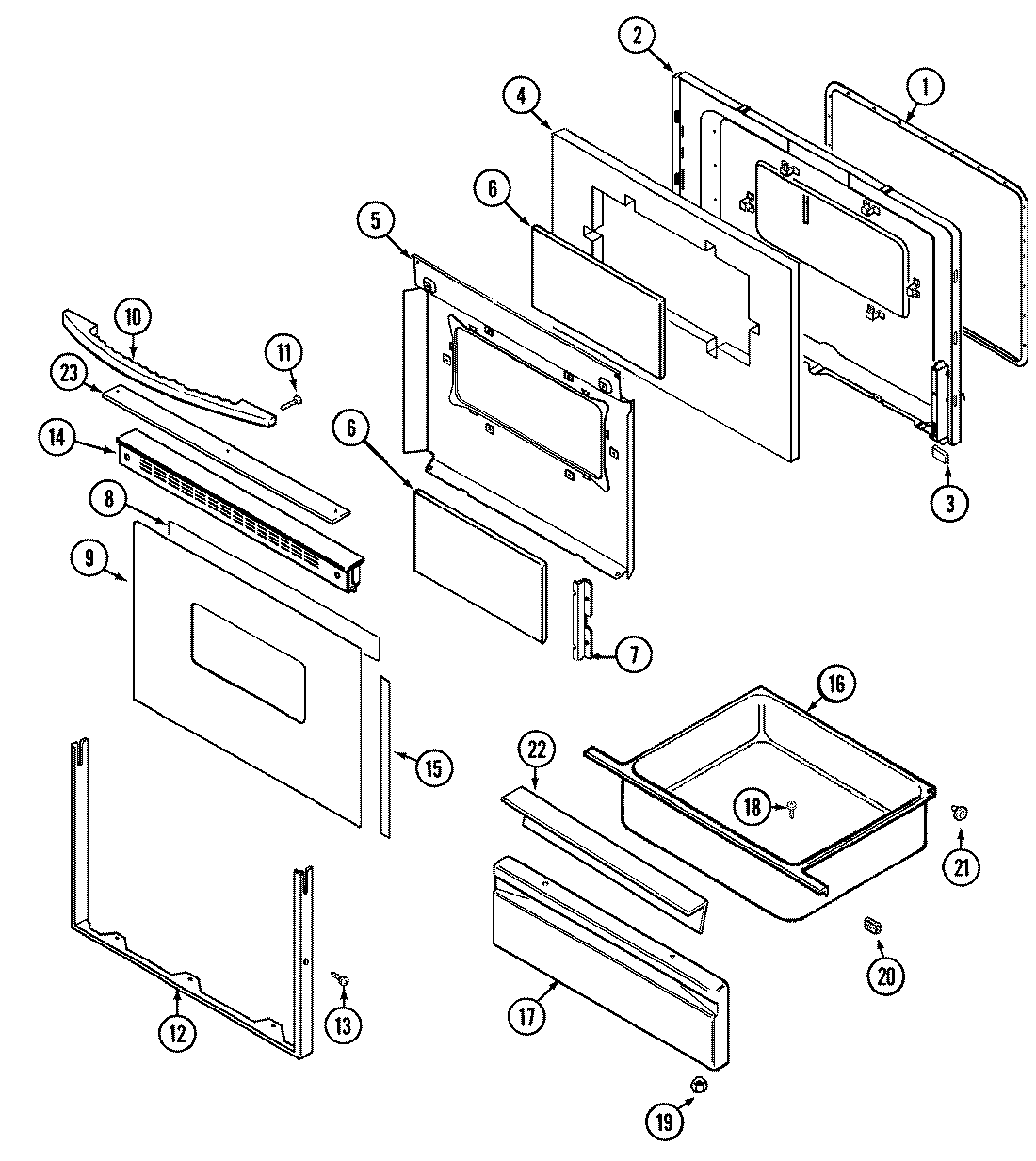

MGR5730ADQ 03 – DOOR/DRAWER

Products

PositionProduct
1GASKT-DOOR OVEN
2LINING, OVEN DOOR
3MAY 8010P085-60
4MAY 74001842
5MAY 74001843
6GLASS, INNER
7MAY 74001844
8TAPE, FOIL (3“ WIDE)
9MAY 74004973
10MAY 74004974
11WP179051 Whirlpool Screw
12MAY 74004975
12SCREW
14MAY 74004977
15MAY 74003660
16MAY 71003042
17PANEL, DRAWER (BSQ)
19WPW10131078 Whirlpool Nut Assembly
20WP854334 Whirlpool Air Conditioner Sealing Strip
21WP74004078 Whirlpool Door Roller
21MAY 74004079
22LINING, DRAWER PANEL
23MAY 74004978
23WP74009541 Whirlpool Screw Assembly
