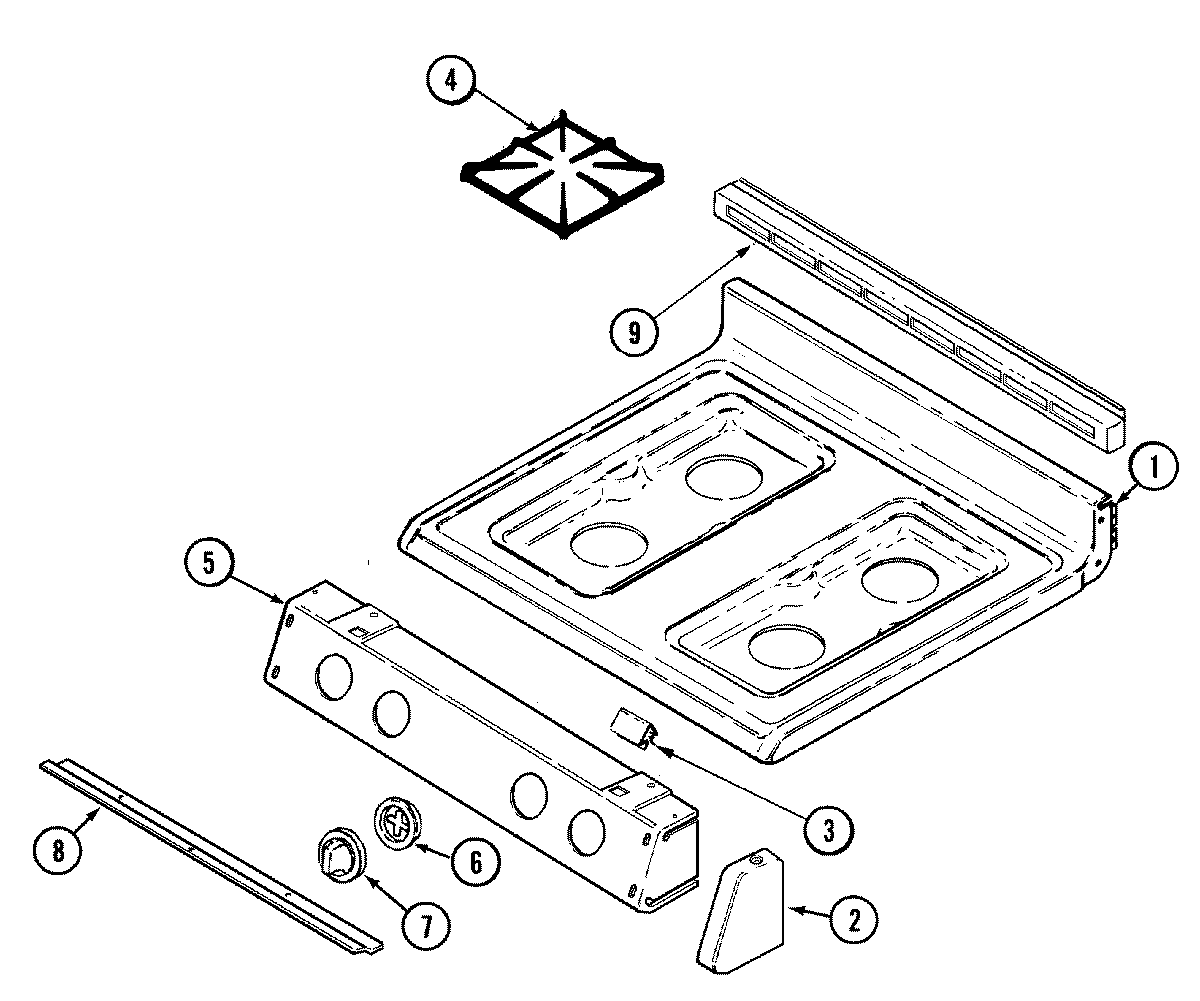

MGR5730BDB 06 – TOP ASSEMBLY

MGR5730BDB 06 – TOP ASSEMBLY

Written by

in

MGR5730BDB 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 71003047
2MAY 74003498
2MAY 74003497
3MAY 74004827
4MAY 74003779
5MAY 74006426
5MAY 7101P074-60
5SCREW (8BX3/8-NI)
6MAY 74006423
6MAY 74006424
7WP74003781 Whirlpool Valve Knob
7MAY 74005689
8MAY 74002447
9MAY 74003501
10MAY 74003186
