MGR5730BDQ 02 – CONTROL PANEL

MGR5730BDQ 02 – CONTROL PANEL

Written by

in

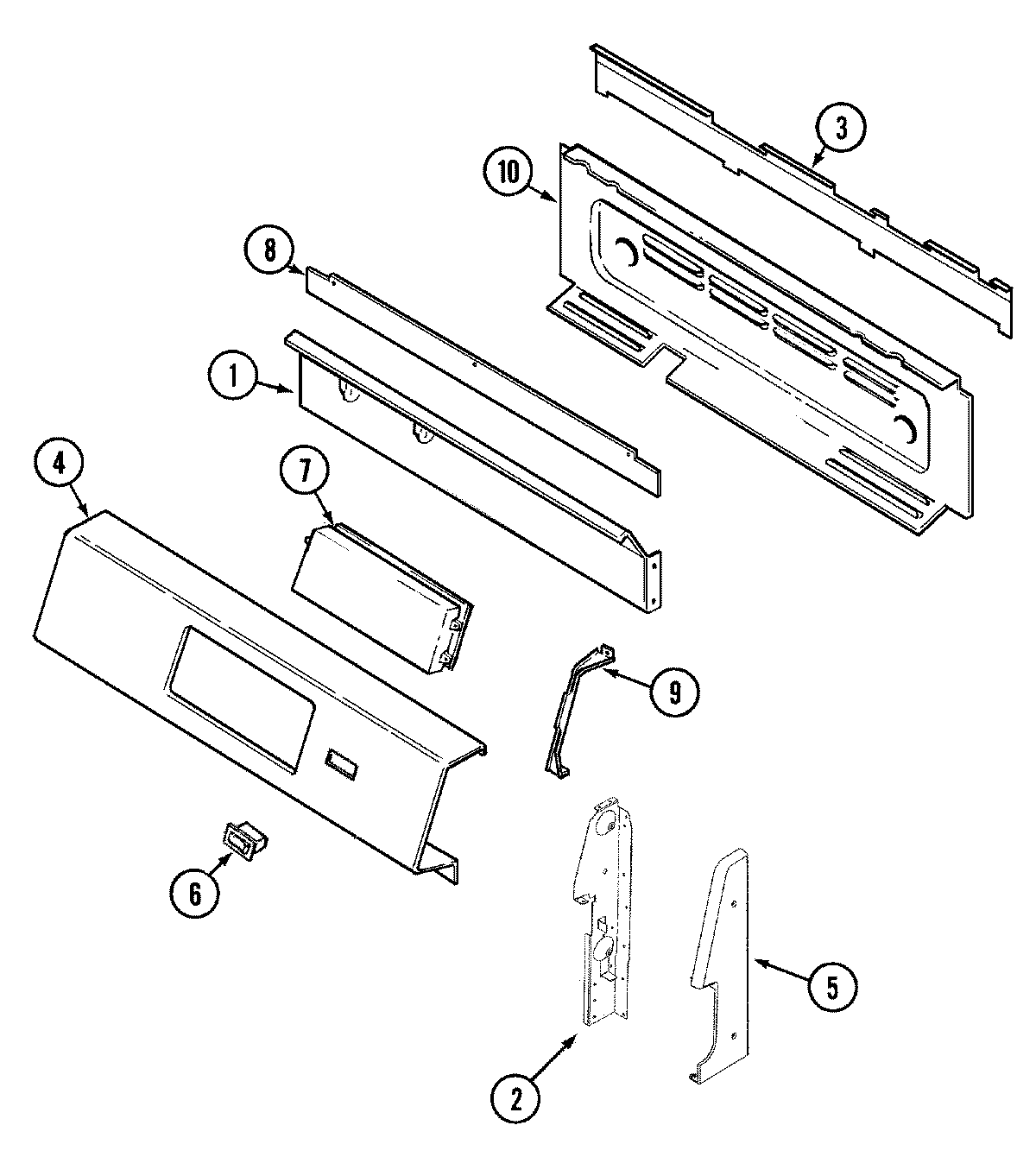

MGR5730BDQ 02 – CONTROL PANEL

Products

PositionProduct
1MAY 74003488
2MAY 74003489
2SCREW (8ABX1/2“-BLK)
2MAY 74003490
3MAY 74006376
3MAY 74004551
4MAY 74006433
5MAY 74004980
5MAY 74004979
5MAY 74004982
5WP74009541 Whirlpool Screw Assembly
674008765 Whirlpool Range Oven Rocker Switch Bisque
7WP59002061 Whirlpool Microwave Screw
7MAY 74006194
8MAY 8036P003-60
9MAY 74003627
9MAY 74004985
10MAY 74004963
10SCREW (8BX3/8-NI)
11MAY 74004945
11MAY 12001323
12MAY 74005913
13MAY 71002782
14MAY 16010161
