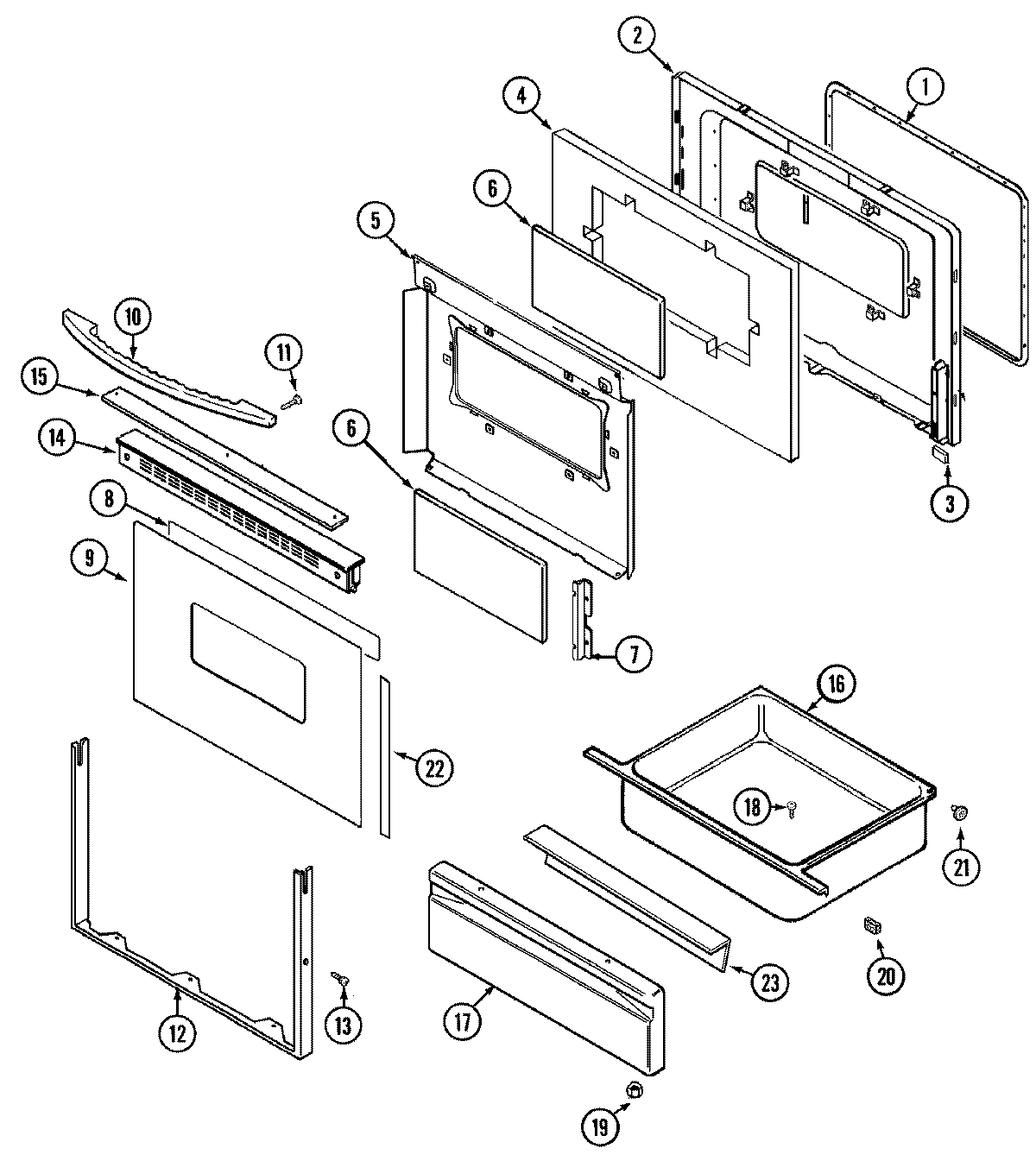

MGR5730BDQ 03 – DOOR/DRAWER

Products

Position	Product
1	GASKT-DOOR OVEN
2	NUT, SNAP (ROUND-WHT)
2	MAY 74003643
2	LINING, OVEN DOOR
2	NUT, SNAP (ROUND-BLK)
3	MAY 8010P085-60
4	MAY 74001842
5	MAY 74001843
6	GLASS, INNER
7	MAY 74001844
8	TAPE, FOIL (3`` WIDE)
9	MAY 74006396
10	MAY 74006377
11	MAY 74006394
11	MAY 74001521
12	MAY 74004975
14	MAY 74006378
14	SCREW
15	WP74009541 Whirlpool Screw Assembly
15	MAY 74004978
16	MAY 71003042
17	PANEL, DRAWER (BSQ)
19	74005230 Whirlpool Oven Lock Nut (8-32)
20	WP854334 Whirlpool Air Conditioner Sealing Strip
21	WP488130 Whirlpool Air Conditioner Nut
21	WP74004078 Whirlpool Door Roller
21	SHAFT, STORAGE DRAWER ROLLER
22	MAY 74003660
23	LINING, DRAWER PANEL
