MGR5730BDW 05 – OVEN/BASE

MGR5730BDW 05 – OVEN/BASE

Written by

in

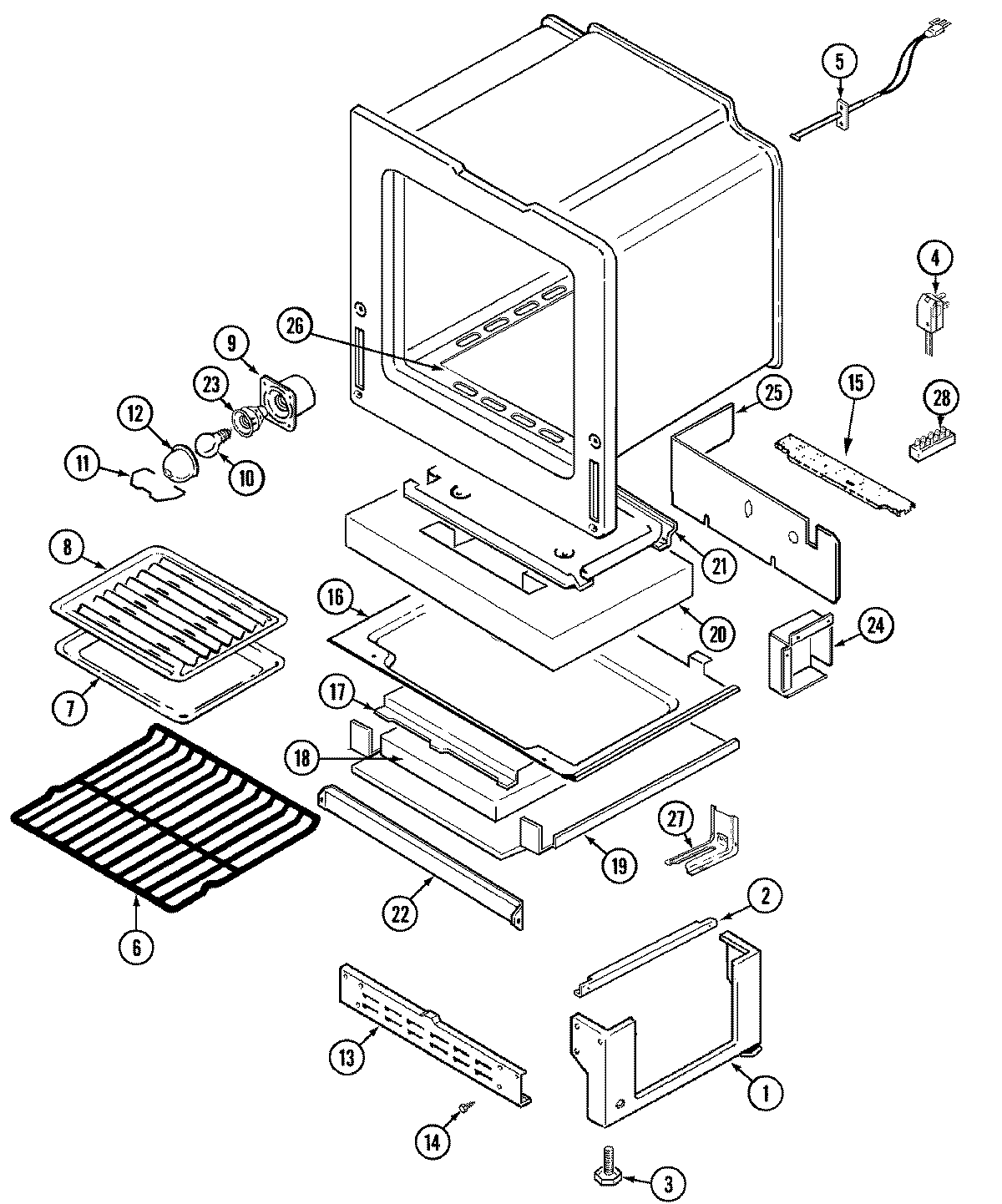

MGR5730BDW 05 – OVEN/BASE

Products

PositionProduct
1MAY 74005772
2RUNNER, DRAWER
3W11665456 Whirlpool Range Level Foot
4MAY 7402P043-60
512001655 Whirlpool Oven Sensor
6WPW10282492 Whirlpool Oven Rack
7MAY Y3401F02019
8MAY Y3413F01619
9MAY 74003388
10RANGE ONLY 40W 120V APPL BULB
11MAY 74003391
12MAY 74003389
13MAY 4020F001-80
15MAY 74006324
16MAY 74004296
17MAY 74006323
18INSULATION, DRAWER & SHIELD
19MAY 3604F205-51
20MAY 74003503
21PAN, BAKE BURNER
22BAFFLE, OVEN FRONT
23MAY 74003387
24MAY 74004499
25MAY 74003329
25SCREW
26MAY 5504M004-19
27MAY 7101P344-60
27MAY 74002311
28MAY 7401P037-60
