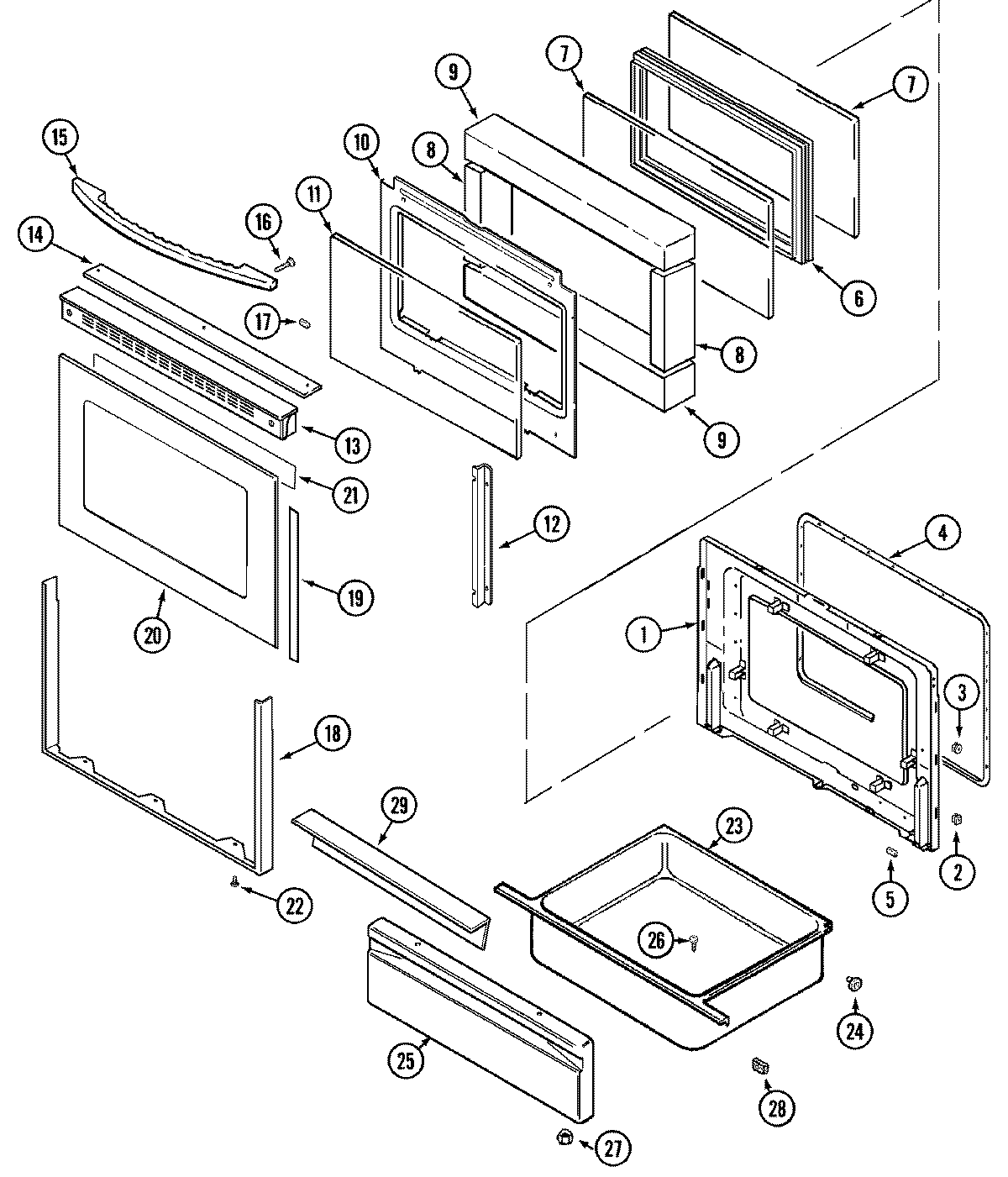

MGR5745ADA 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74003642
2	MAY 74003643
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	MAY 74003646
9	INSULATION, OVEN DOOR
10	MAY 74003648
11	GLASS, DOOR
12	MAY 74003650
13	MAY 74003651
14	MAY 7728P095-60
15	MAY 74003619
16	WP179051 Whirlpool Screw
17	MAY 71002092
18	MAY 74004843
18	WP74009541 Whirlpool Screw Assembly
19	MAY 74003660
20	MAY 74003672
21	TAPE, FOIL 29“ X 2“
22	SCREW
23	MAY 71003042
24	MAY 74003566
24	WP488130 Whirlpool Air Conditioner Nut
25	MAY 74003522
26	WP7101P072-60 Whirlpool Screw
27	WPW10131078 Whirlpool Nut Assembly
28	MAY 8010P085-60
29	LINING, DRAWER PANEL
