MGR5750ADQ 03 – DOOR/DRAWER

MGR5750ADQ 03 – DOOR/DRAWER

Written by

in

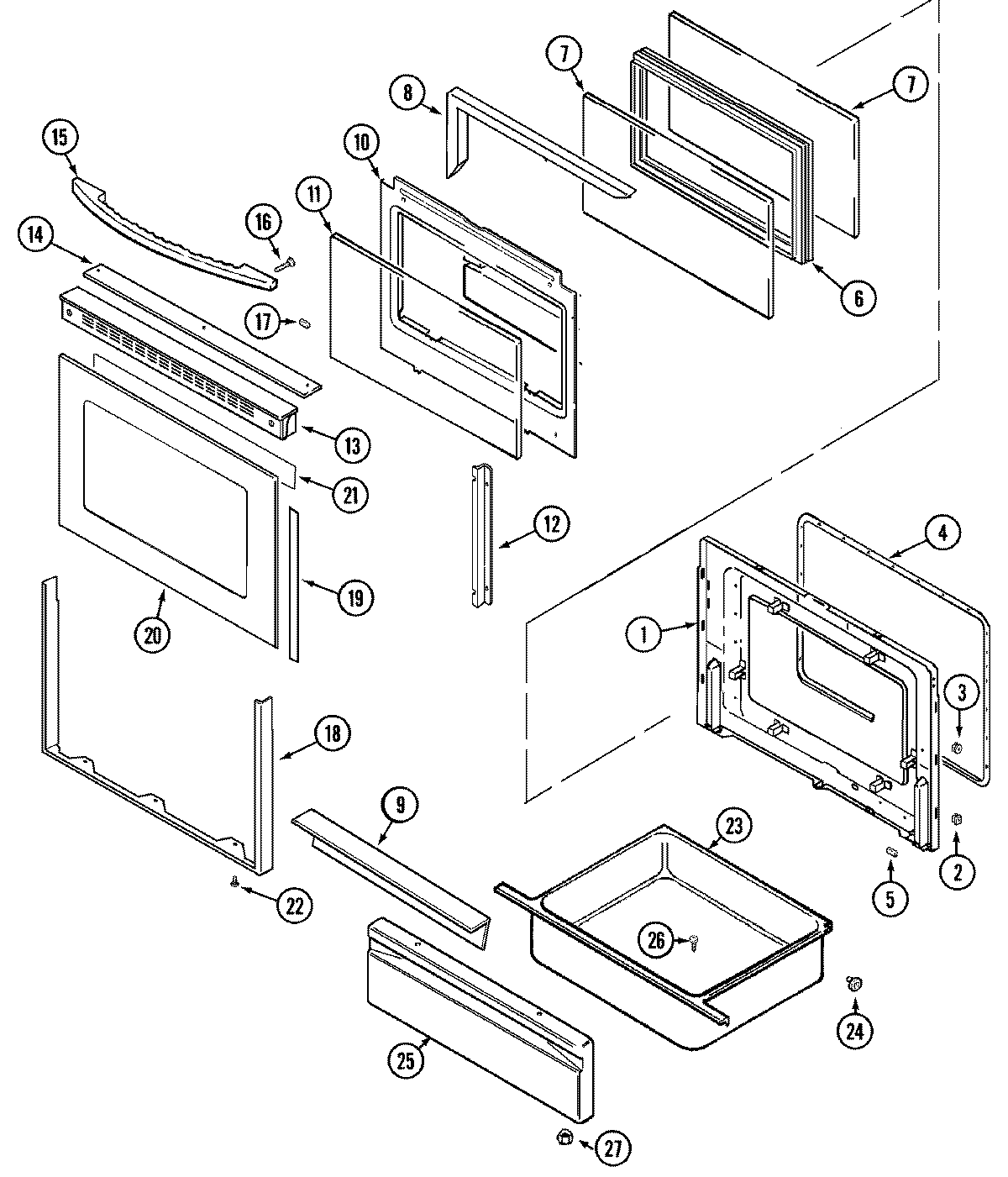

MGR5750ADQ 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74003642
2MAY 74003643
3NUT, SNAP (ROUND-BLK)
3NUT, SNAP (ROUND-WHT)
4GASKT-DOOR OVEN
5MAY 8010P085-60
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8INSULATION, OVEN DOOR
9LINING, DRAWER PANEL
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13MAY 74005006
14MAY 74004978
15MAY 74004974
16WP179051 Whirlpool Screw
17MAY 71002092
18WP74009541 Whirlpool Screw Assembly
18MAY 74005007
19MAY 74003660
20MAY 74005008
21TAPE, FOIL 29“ X 2“
22SCREW
23MAY 71003042
24MAY 74004079
24WP74004078 Whirlpool Door Roller
24WP488130 Whirlpool Air Conditioner Nut
25PANEL, DRAWER (BSQ)
26WP7101P072-60 Whirlpool Screw
27WPW10131078 Whirlpool Nut Assembly
