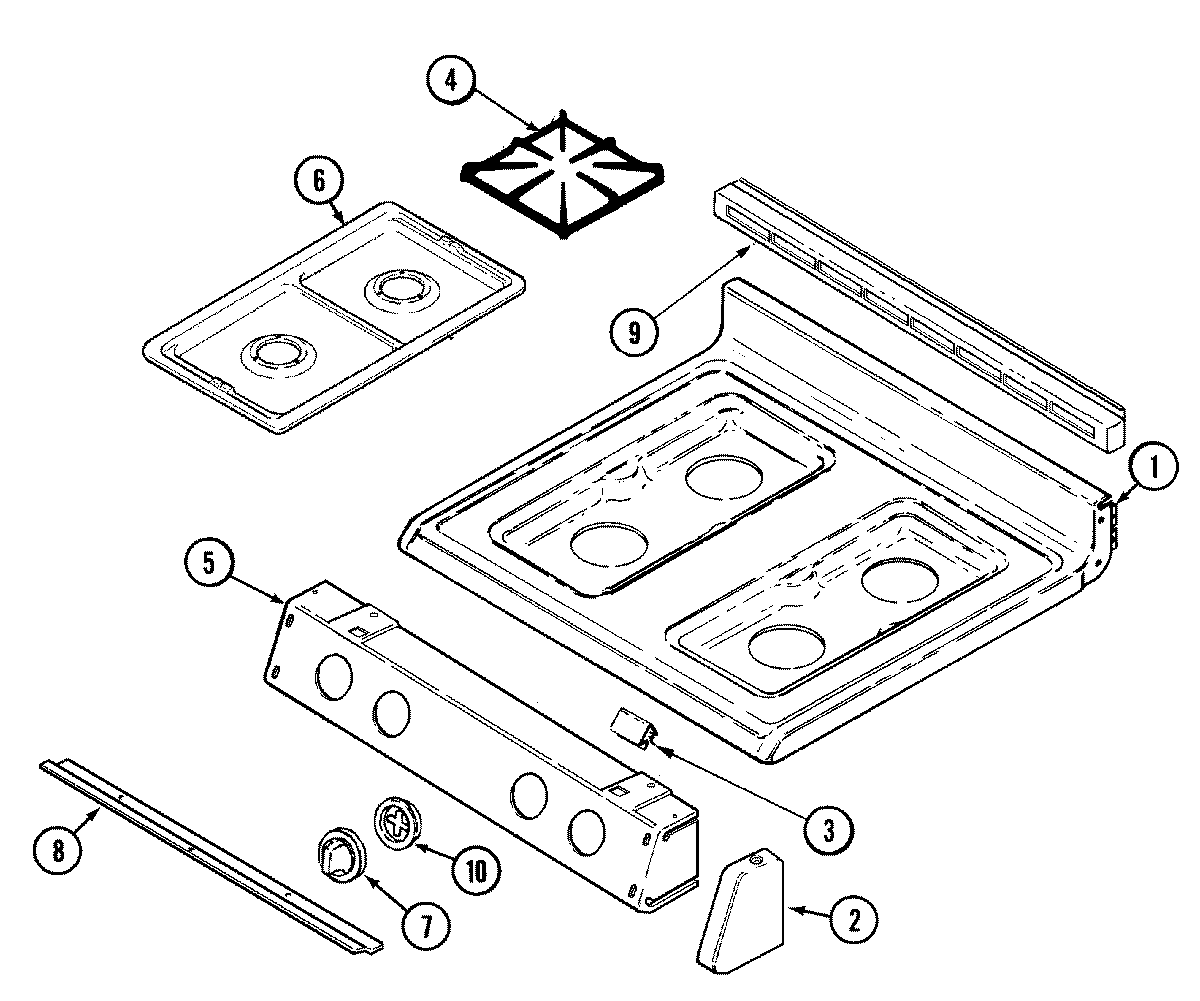

MGR5750ADW 06 – TOP ASSEMBLY

MGR5750ADW 06 – TOP ASSEMBLY

Written by

in

MGR5750ADW 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74001428
1MAY 74003512
2MAY 74003860
2MAY 74003516
2MAY 74003515
3MAY 74004827
3MAY 7112P087-60
4MAY 74003766
5MAY 74003768
5MAY 7101P074-60
5SCREW (8BX3/8-NI)
6MAY 5401A452-60
7WP74003769 Whirlpool Valve Knob
7MAY 74005688
8MAY 74002447
8SCREW
9MAY 74003519
9SCREW (10ABX1/4P TR ZN)
10MAY 74003771
10MAY 74005307
