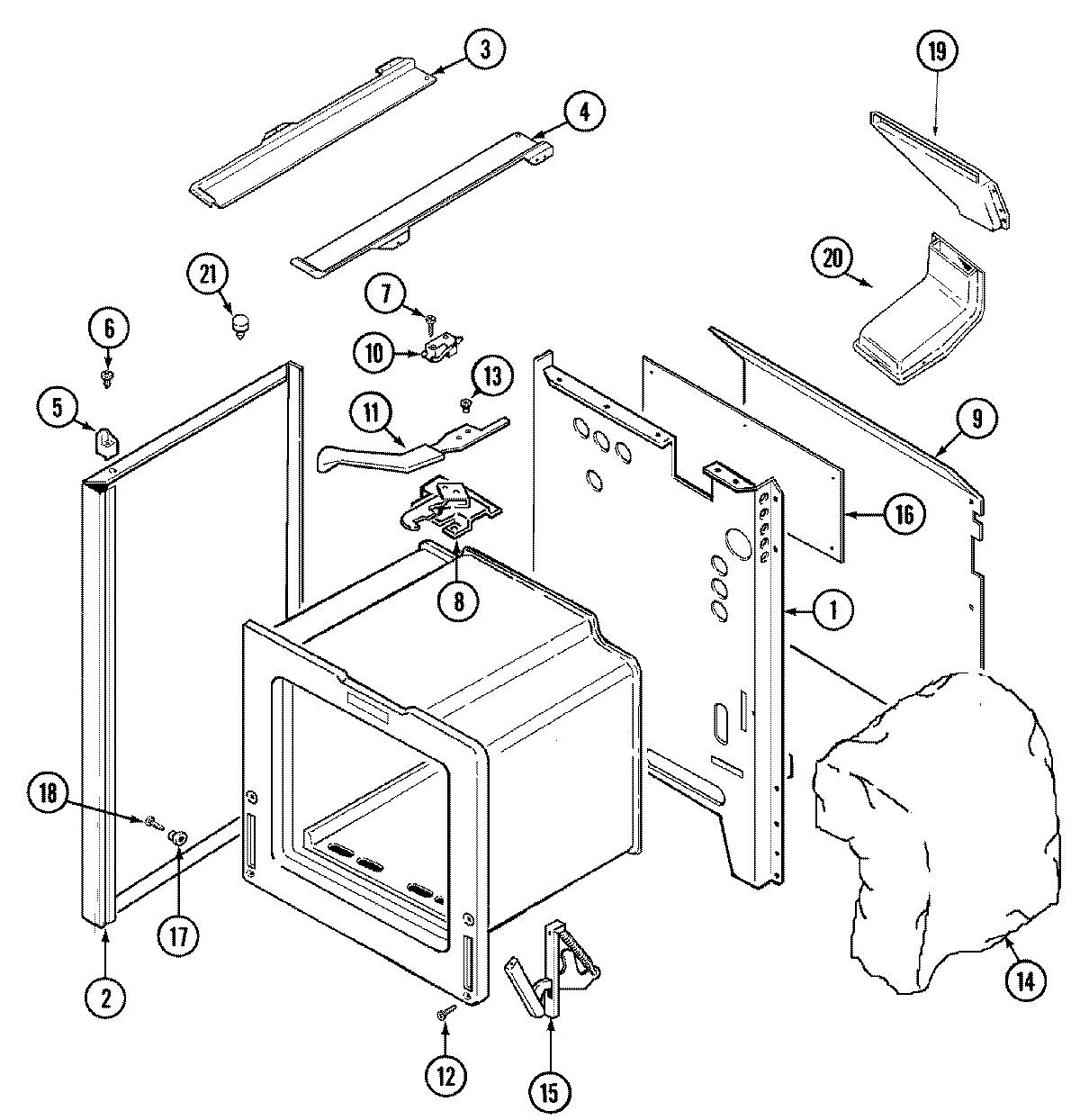

MGR5750BDQ 01 – BODY

MGR5750BDQ 01 – BODY

Written by

in

MGR5750BDQ 01 – BODY

Products

PositionProduct
1MAY 74006548
1GROMMET
1MAY 8008P021-60
2TAPE, FOIL (3“ WIDE)
2MAY 74004965
3MAY 74002633
4MAY 74002632
5SPACER, MAIN TOP (RT)
5SPACER, MAIN TOP (LT)
6MAY 7101P313-60
7MAY 7101P330-60
8MAY 74001084
8MAY 74003502
8MAY 74003139
9MAY 74003816
10MAY 74003383
11MAY 74001057
12SCREW (10-24X5/16-NI)
13SCREW, LEVER
14MAY 74003385
14WP74010942 Whirlpool Insulation
14MAY 74005771
15HINGE-OVEN DOOR
16SCREW
16MAY 3604F165-51
17MAY 8004P024-60
18W11693756 Whirlpool Screw Assembly
18MAY 74001449
19MAY 4022W007-19
19SCREW (8BX3/8-NI)
20WP74003976 Whirlpool Screw
20MAY 74006420
21MAY 8010P048-60
