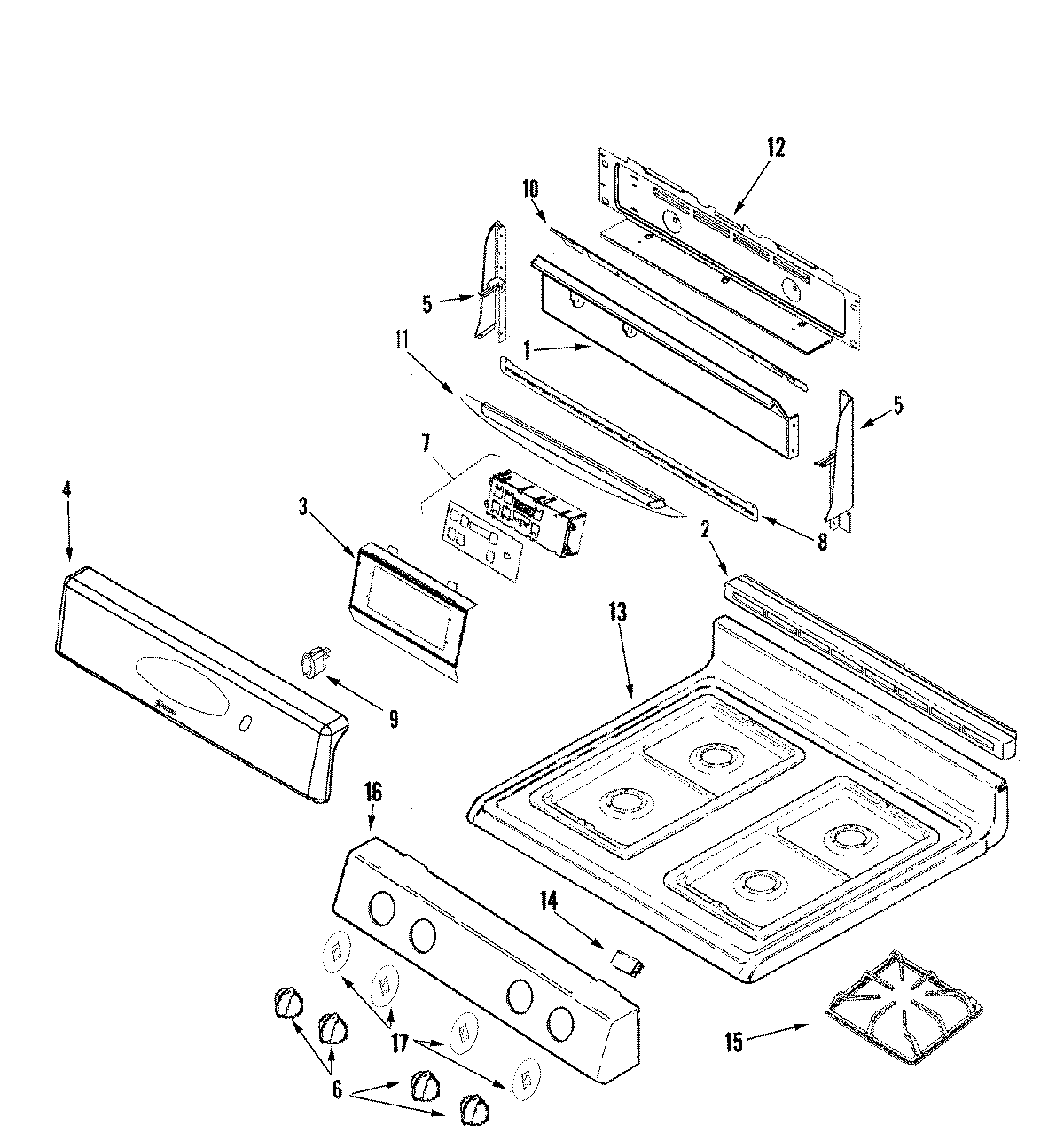

MGR5751ADB 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	SCREW (8BX3/8-NI)
1	MAY 74009779
2	MAY 74009797
2	SCREW (10ABX1/4P TR ZN)
3	BRACKET, CLOCK
4	MAY 74009108
4	MAY 74009093
5	WP98008545 Whirlpool Screw
5	MAY 74009670
5	MAY 74009673
6	KNOB (BLK)
6	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
7	5701M754-60 Whirlpool Electronic Control Board
7	WP74003976 Whirlpool Screw
8	MAY 74009780
9	7403P985-60 Whirlpool Rocker Switch (Black)
10	MAY 74009708
10	SCREW
11	MAY 74009800
11	MAY 74009801
12	MAY 74006536
12	WP90767 Whirlpool Screw
12	MAY 74009335
12	MAY 71001394
13	WP74005546 Whirlpool RU Spacer
13	MAY 71003047
14	MAY 74004827
15	WP7518P464-60 Whirlpool Burner Grate
16	MAY 74009827
17	MAY 74009846
