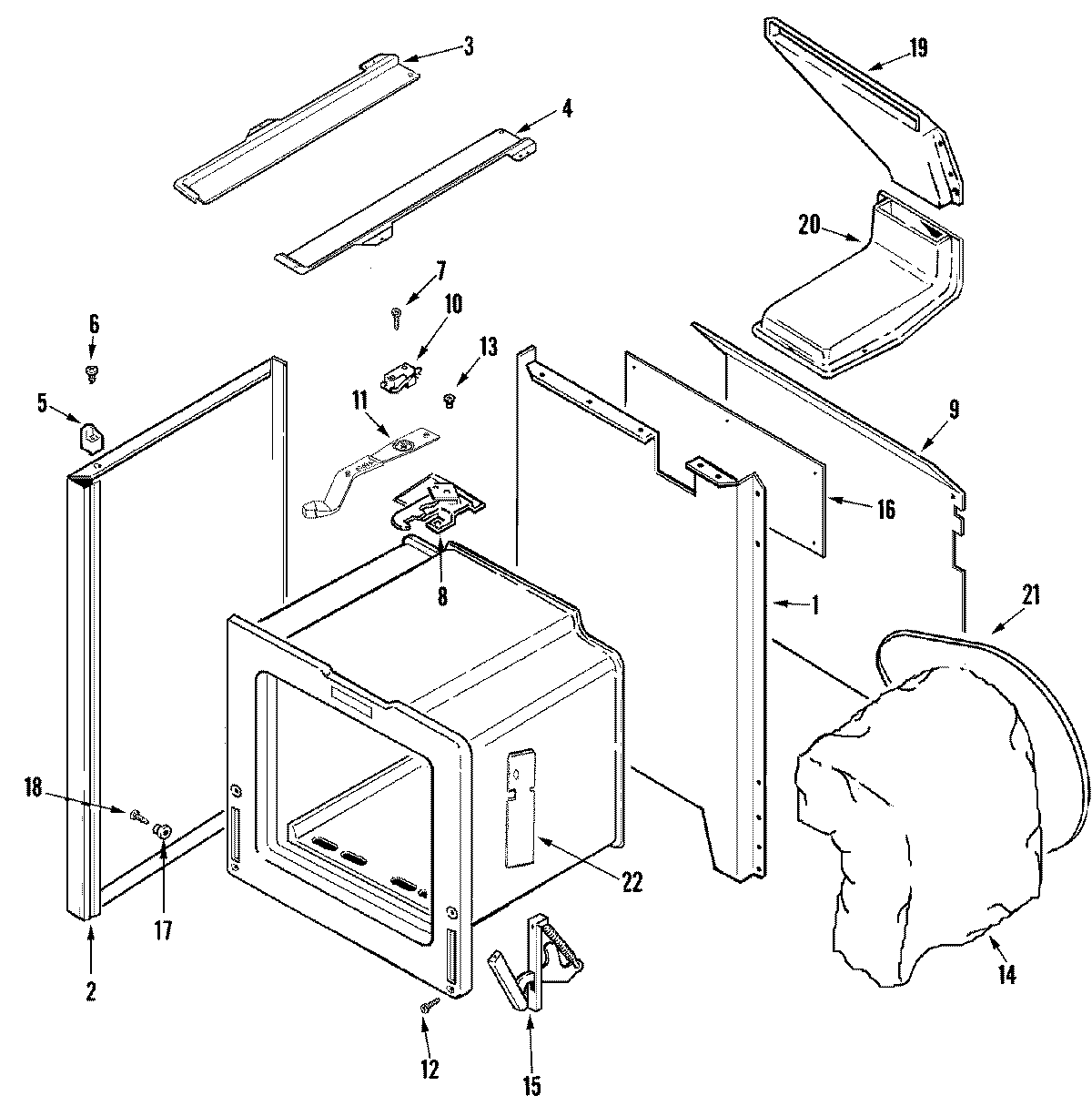

MGR5751ADQ 01 – BODY

MGR5751ADQ 01 – BODY

Written by

in

MGR5751ADQ 01 – BODY

Products

PositionProduct
1MAY 74006548
1GROMMET
1CLIP, WIRE LOCK
2TAPE, FOIL (3“ WIDE)
2MAY 74004965
2MAY 71001394
3MAY 74009768
4MAY 74009767
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
7MAY 7101P330-60
874003975 Whirlpool Screw P1 (8ABX3/8-BLK)
8MAY 74009764
9MAY 74003816
10MAY 74009591
11MAY 74001057
12SCREW (10-24X5/16-NI)
13SCREW, LEVER
14MAY 74009201
14WP74010942 Whirlpool Insulation
15WP74011140 Whirlpool Oven Hinge
16MAY 3604F165-51
17MAY 8004P024-60
18SCREW
18MAY 74007476
19MAY 4022W007-19
19SCREW (8BX3/8-NI)
20WP74003976 Whirlpool Screw
20MAY 74006420
21MAY 74003385
22MAY 74009569
