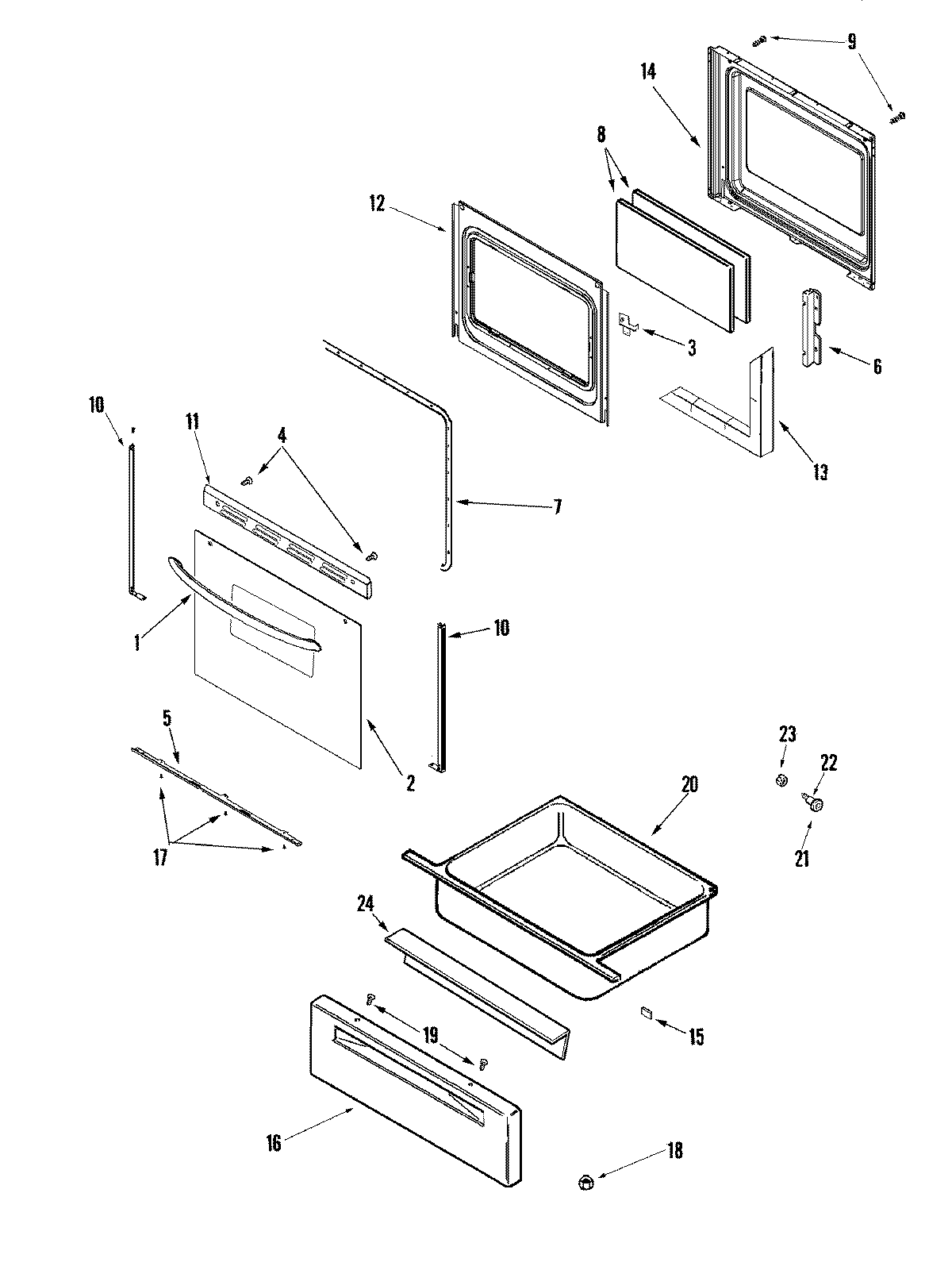

MGR5751ADQ 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74011107
1	MAY 74009185
2	MAY 74009728
2	MAY 74003146
3	3801F832-45 Whirlpool Bracket
3	3801F831-45 Whirlpool Bracket Assembly
4	WP74006515 Whirlpool Washer Screw
4	WP98008545 Whirlpool Screw
5	SUPPORT, GLASS (BSQ)
6	MAY 74001844
7	GASKT-DOOR OVEN
8	GLASS, INNER
9	SCREW
10	WP74009014 Whirlpool Double Tape
10	TRIM, DOOR (BSQ-RT)
10	TRIM, DOOR (BSQ-LT)
11	MAY 74009691
12	MAY 7101P356-60
12	BAFFLE, OVEN DOOR
13	MAY 74001842
14	LINING, OVEN DOOR
15	WP74005546 Whirlpool RU Spacer
16	PANEL, DRAWER (BSQ)
17	WP74009541 Whirlpool Screw Assembly
18	WPW10131078 Whirlpool Nut Assembly
20	MAY 74008337
21	WP74004078 Whirlpool Door Roller
22	SHAFT, STORAGE DRAWER ROLLER
23	WP488130 Whirlpool Air Conditioner Nut
24	LINING, DRAWER PANEL
