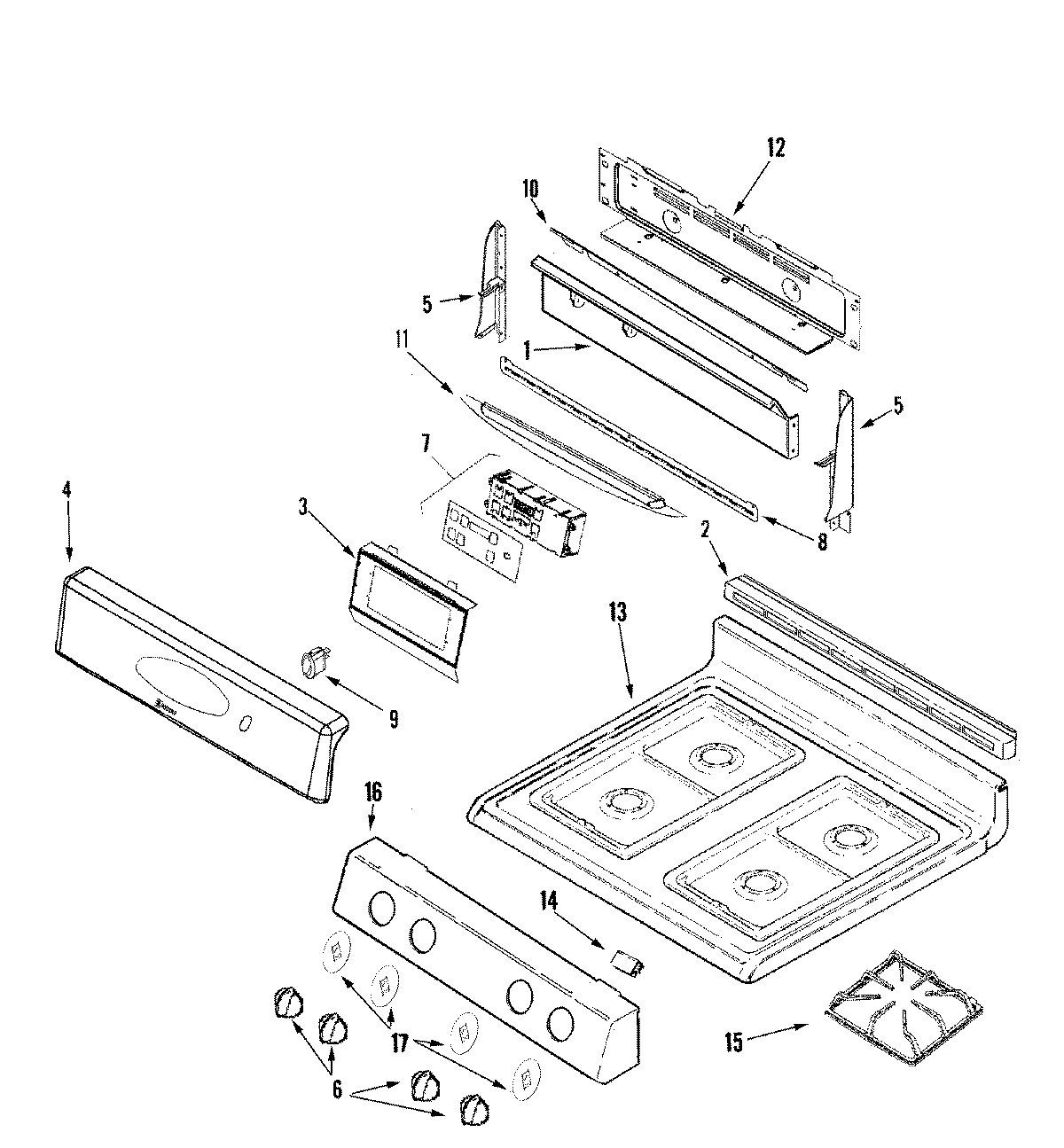

MGR5751ADW 02 – CONTROL PANEL/TOP ASSEMBLY

MGR5751ADW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGR5751ADW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1SCREW (8BX3/8-NI)
1MAY 74009779
2MAY 74009797
2SCREW (10ABX1/4P TR ZN)
3BRACKET, CLOCK
4MAY 74009093
4MAY 74009109
5WP98008544 Whirlpool Screw Assembly
5MAY 74009672
5MAY 74009669
6WP74009775 Whirlpool Burner Knob
6NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
75701M754-60 Whirlpool Electronic Control Board
7WP74003976 Whirlpool Screw
8MAY 74009780
9WP74010226 Whirlpool RO Switch
10MAY 74009708
10SCREW
11MAY 74009799
11MAY 74009802
12WP90767 Whirlpool Screw
12MAY 74009335
12MAY 71001394
12MAY 74006536
13WP74005546 Whirlpool RU Spacer
13MAY 74003512
14MAY 74004827
15WP7518P464-60 Whirlpool Burner Grate
16MAY 74009829
17MAY 74009846
