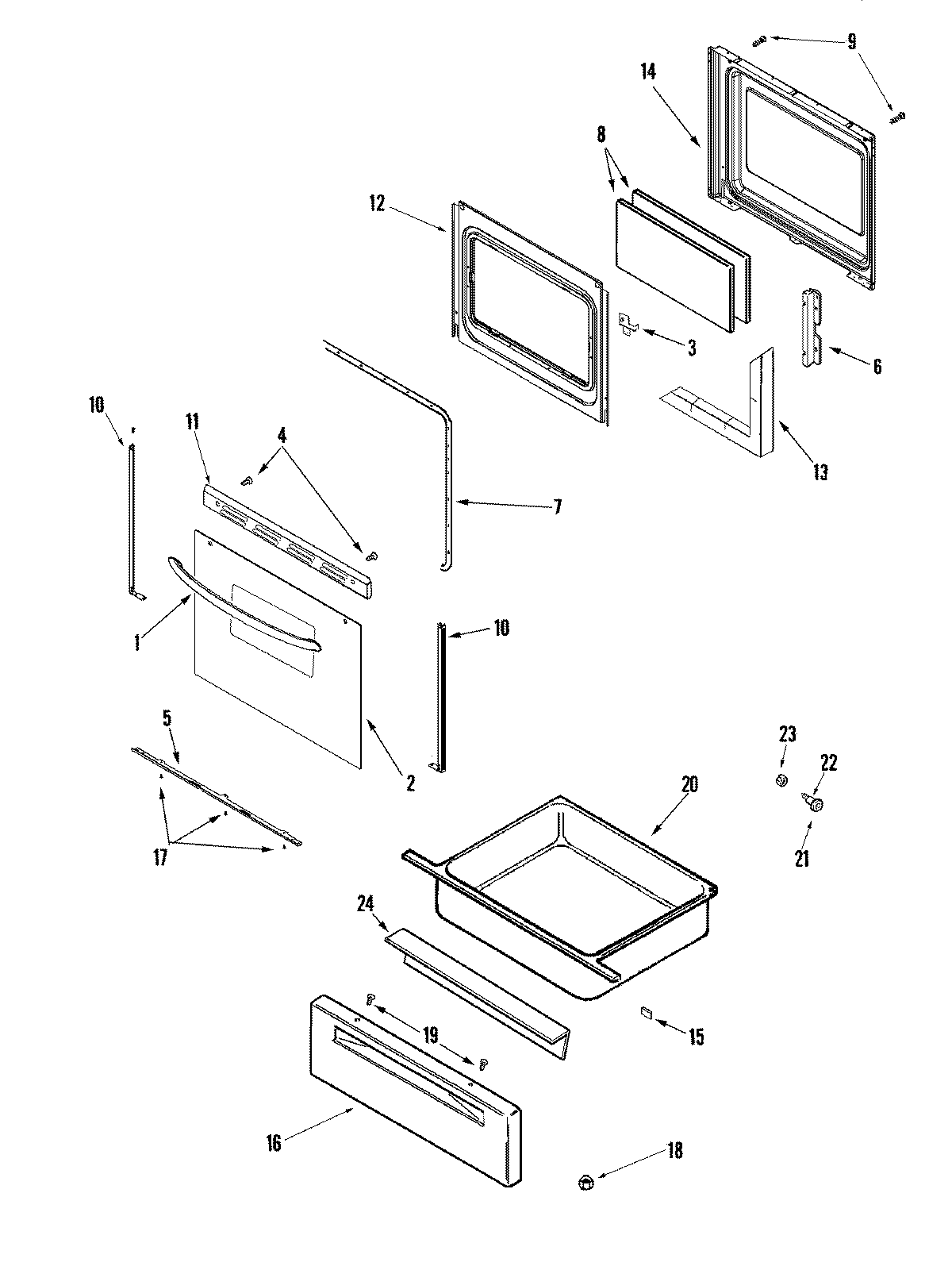

MGR5751ADW 03 – DOOR/DRAWER

Products

Position	Product
1	WP74011675 Whirlpool Door Handle
2	MAY 74009727
2	MAY 74003146
3	3801F832-45 Whirlpool Bracket
3	3801F831-45 Whirlpool Bracket Assembly
4	WP74006515 Whirlpool Washer Screw
4	WP98008545 Whirlpool Screw
5	WP3807F708-71 Whirlpool Support
6	MAY 74001844
7	GASKT-DOOR OVEN
8	GLASS, INNER
9	SCREW
10	WP3608F116-71 Whirlpool Door Trim
10	WP3608F117-71 Whirlpool Door Trim
10	WP74009014 Whirlpool Double Tape
11	WP3608F141-71 Whirlpool Door Trim
12	MAY 7101P356-60
12	BAFFLE, OVEN DOOR
13	MAY 74001842
14	LINING, OVEN DOOR
15	WP74005546 Whirlpool RU Spacer
16	PANEL, DRAWER (WHT)
17	WP98008544 Whirlpool Screw Assembly
18	WPW10131078 Whirlpool Nut Assembly
20	MAY 74008337
21	WP74004078 Whirlpool Door Roller
22	SHAFT, STORAGE DRAWER ROLLER
23	WP488130 Whirlpool Air Conditioner Nut
24	LINING, DRAWER PANEL
