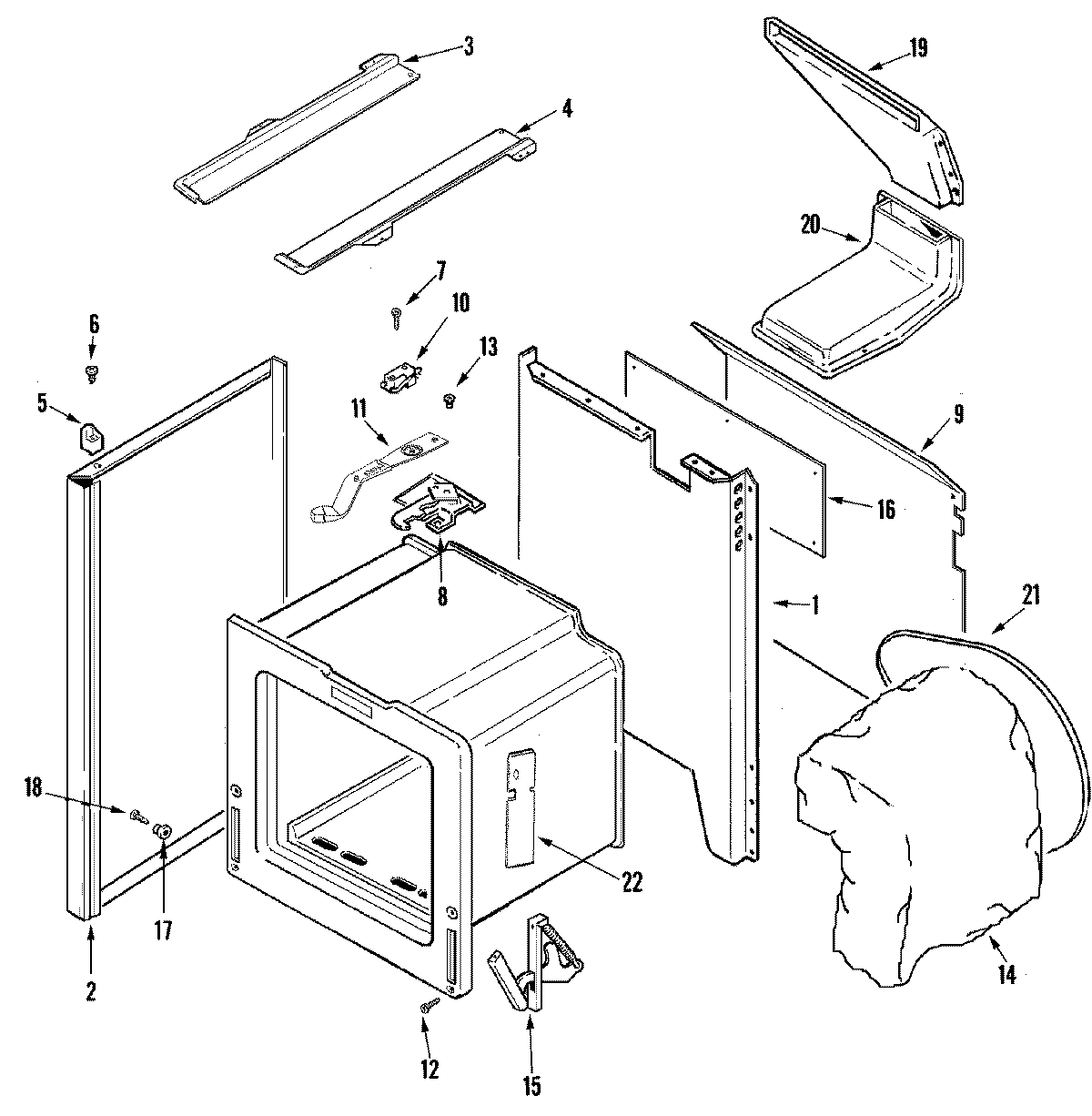

MGR5751BDB 01 – BODY

MGR5751BDB 01 – BODY

Written by

in

MGR5751BDB 01 – BODY

Products

PositionProduct
1GROMMET
1CLIP, WIRE LOCK
1MAY 74009884
2MAY 71001394
2TAPE, FOIL (3“ WIDE)
2MAY 74003283
3MAY 74009768
4MAY 74009767
5SPACER, MAIN TOP (RT)
5SPACER, MAIN TOP (LT)
7MAY 7101P330-60
8MAY 74009764
874003975 Whirlpool Screw P1 (8ABX3/8-BLK)
9MAY 74009654
10MAY 74009591
11MAY 74003005
12SCREW (10-24X5/16-NI)
13SCREW, LEVER
14WP74010942 Whirlpool Insulation
14MAY 74009201
15HINGE-OVEN DOOR
16MAY 3604F165-51
17MAY 8004P024-60
18MAY 74007476
18SCREW
19MAY 4022W007-19
19SCREW (8BX3/8-NI)
20MAY 74006420
20WP74003976 Whirlpool Screw
21MAY 74003385
22MAY 74009569
