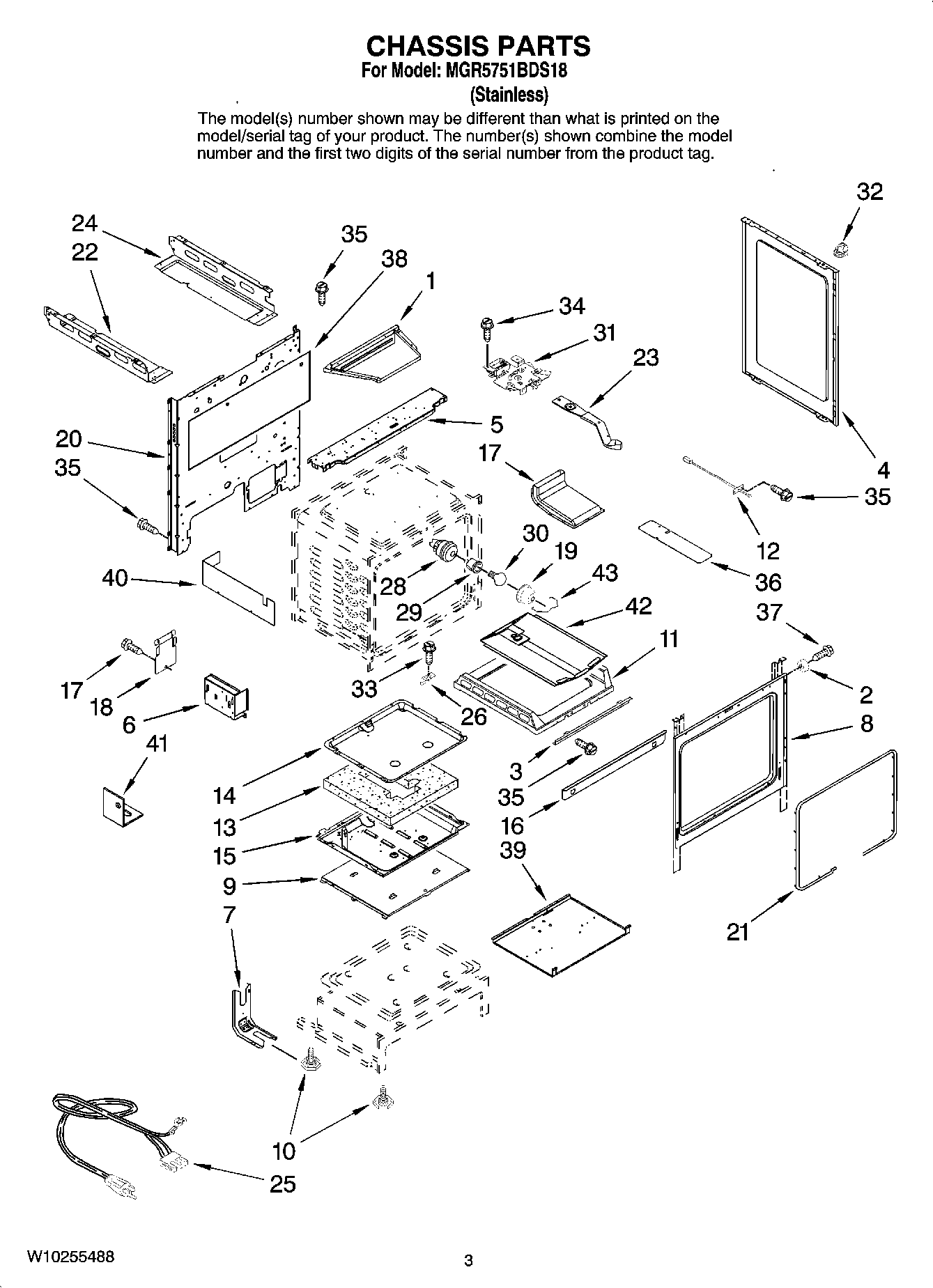

MGR5751BDS18 03 – CHASSIS PARTSadmin2025-04-26T09:12:45+00:00MGR5751BDS18 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, DRAWER & SHIELD |
| NI | MAY 74009201 |
| NI | WP74010942 Whirlpool Insulation |
| 1 | MAY 4022W007-19 |
| 3 | MAY 8004P024-60 |
| 4 | MAY 74003283 |
| 5 | SUPPORT, VALVE REGULATOR |
| 6 | MAY 74009583 |
| 7 | WP3801F656-51 Whirlpool Range Anti-Tip Bracket |
| 9 | MAY 74006574 |
| 10 | W11665456 Whirlpool Range Level Foot |
| 11 | MAY 74011228 |
| 12 | 12001655 Whirlpool Oven Sensor |
| 13 | MAY 74003503 |
| 14 | PAN, BAKE BURNER |
| 15 | RETAINER, BOTTOM INSULATION |
| 16 | BAFFLE, OVEN FRONT |
| 17 | MAY 74006420 |
| 18 | COVER, BROIL ACCESS FITTING |
| 19 | MAY 74003389 |
| 20 | MAY 74009884 |
| 21 | GASKT-DOOR OVEN |
| 22 | MAY 74009767 |
| 23 | MAY 74010244 |
| 24 | MAY 74009768 |
| 25 | MAY 74009826 |
| 26 | MAY 74010812 |
| 28 | MAY 74003388 |
| 29 | MAY 74003387 |
| 30 | MAY W10132113 |
| 31 | MAY 74009764 |
| 32 | SPACER, MAIN TOP (LT) |
| 32 | SPACER, MAIN TOP (RT) |
| 33 | WP74003976 Whirlpool Screw |
| 34 | 74003975 Whirlpool Screw P1 (8ABX3/8-BLK) |
| 35 | SCREW |
| 36 | MAY 74009569 |
| 37 | MAY 74007476 |
| 38 | MAY 3604F165-51 |
| 39 | SHIELD, WARMING DRAWER |
| 40 | COVER, VALVE/REGULATOR |
| 41 | Support, Bake |
| 42 | Baffle, Burner |
| 43 | MAY 74003391 |
