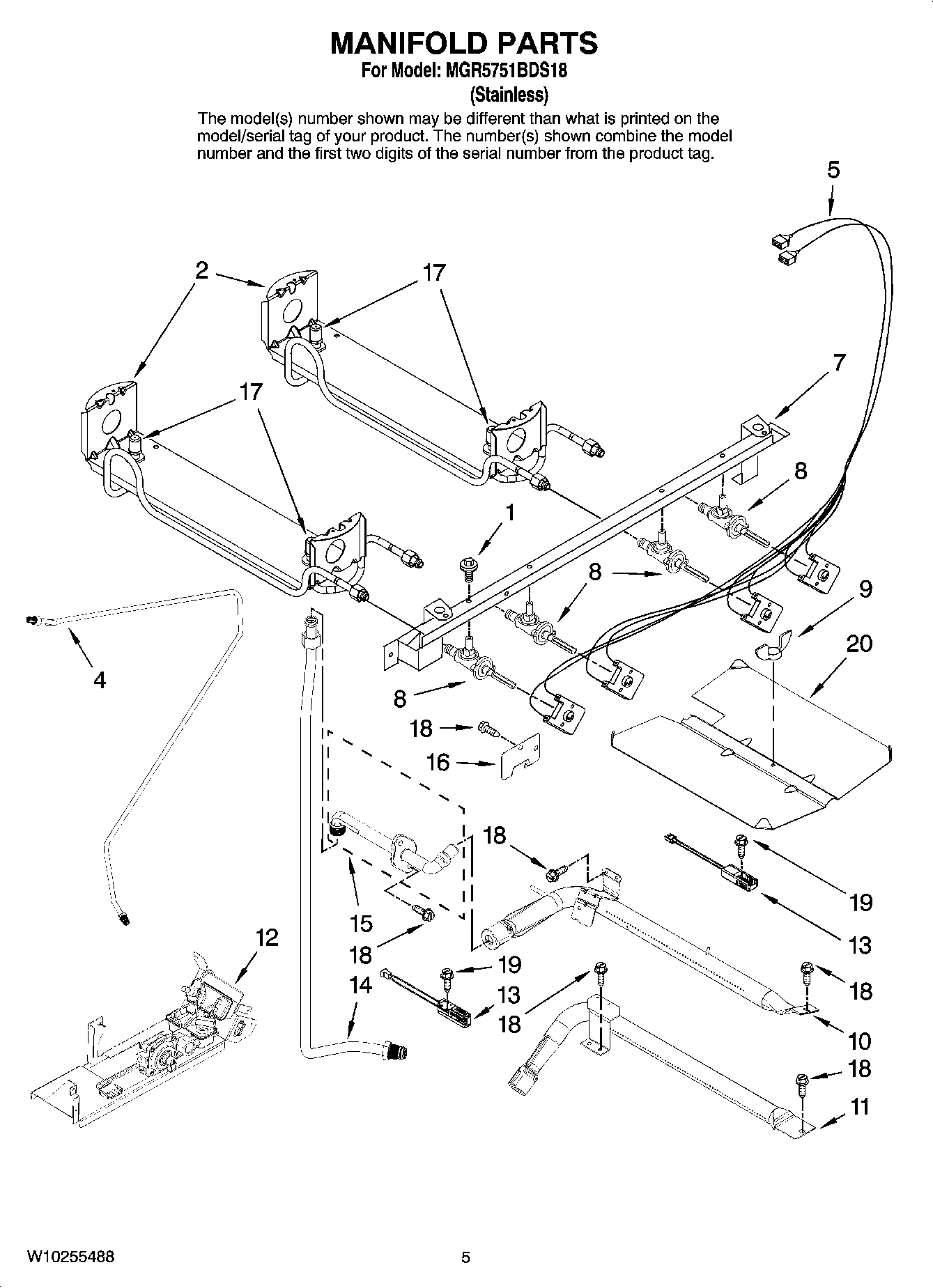

MGR5751BDS18 04 – MANIFOLD PARTS

Products

PositionProduct
NIWP7509P129-60 Whirlpool Conversion Kit
1MAY 74009416
2WP5787D105-60 Whirlpool Orifice
2WP5787D104-60 Whirlpool Orifice
4MAY 74009766
5MAY W10180489
7MAY 74010271
8MAY 74009462
8MAY 74009770
9Nut
10MAY 74004076
11MAY 74003960
12MAY 74007780
1374007498 Whirlpool Range Flat Igniter
14MAY 74006430
15MAY 74009765
16MAY 4005F421-45
17MAY 74010723
17MAY 74010724
17MAY 74010719
17MAY 74010720
18SCREW
19SCREW (10-24X5/16-NI)
20Baffle, Broil Burner
