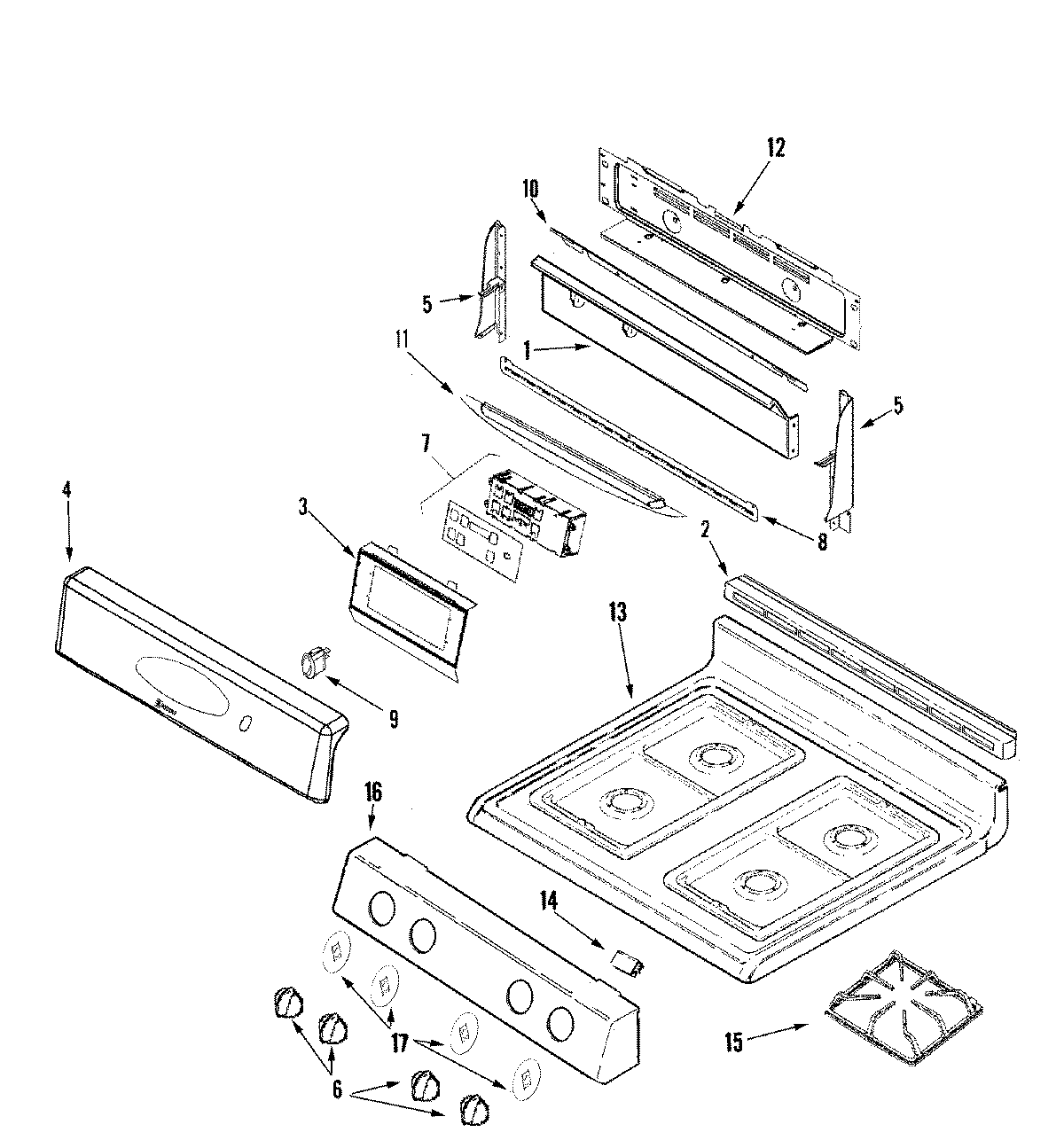

MGR5752ADS 02 – CONTROL PANEL/TOP ASSEMBLY

MGR5752ADS 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGR5752ADS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1SCREW (8BX3/8-NI)
1MAY 74009779
2MAY 74009797
2SCREW (10ABX1/4P TR ZN)
3BRACKET, CLOCK
4MAY 74009108
4MAY 74009093
5WP98008545 Whirlpool Screw
5MAY 74009670
5MAY 74009673
6KNOB (BLK)
6NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
75701M754-60 Whirlpool Electronic Control Board
7WP74003976 Whirlpool Screw
8MAY 74009780
97403P985-60 Whirlpool Rocker Switch (Black)
10MAY 74009708
10SCREW
11MAY 74009800
11MAY 74009801
12MAY 74006536
12WP90767 Whirlpool Screw
12MAY 74009335
12MAY 71001394
13WP74005546 Whirlpool RU Spacer
13MAY 71003047
14MAY 74004827
15WP7518P464-60 Whirlpool Burner Grate
16MAY 74009828
17MAY 74009846
