MGR5752ADW 03 – DOOR/DRAWER

MGR5752ADW 03 – DOOR/DRAWER

Written by

in

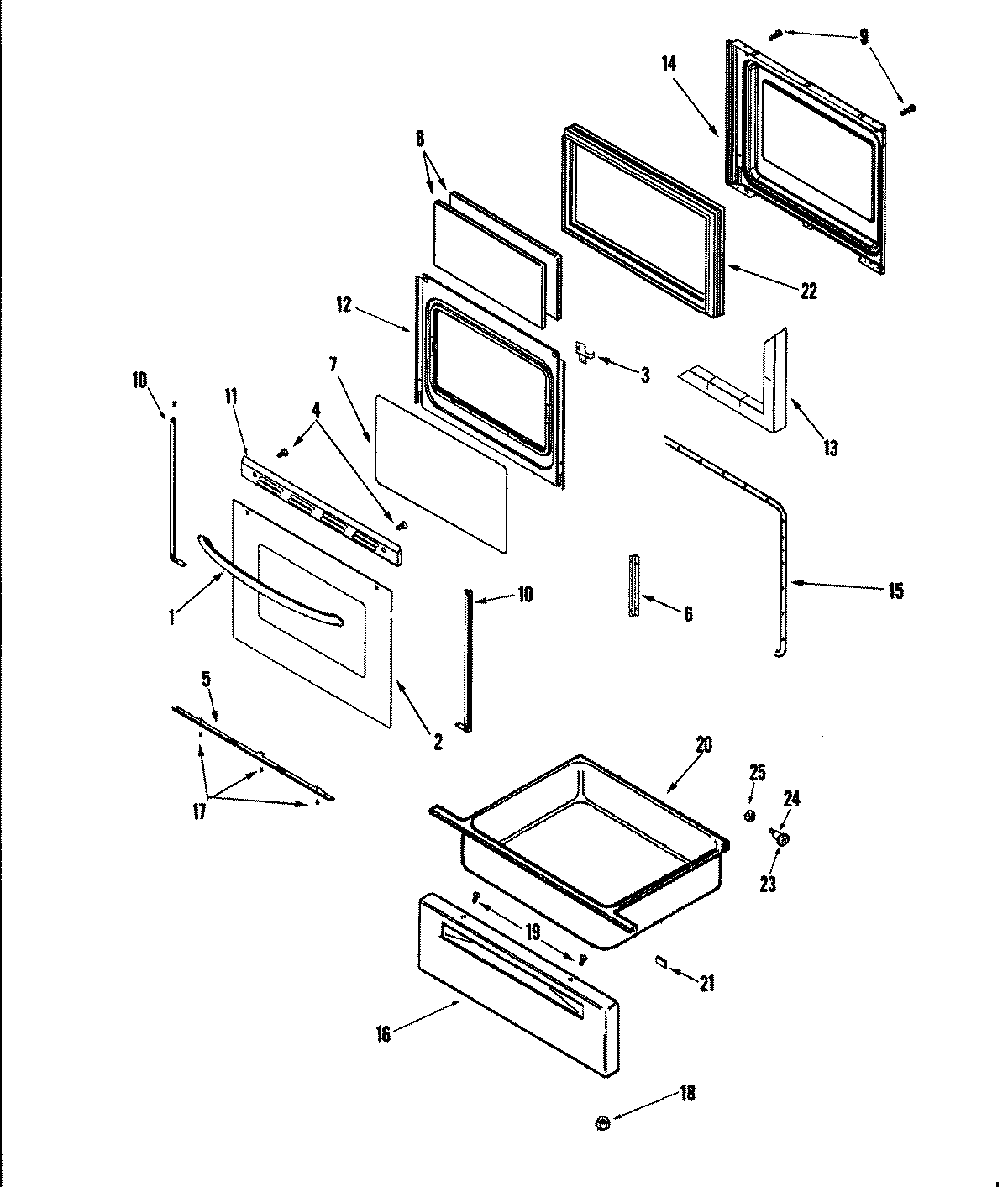

MGR5752ADW 03 – DOOR/DRAWER

Products

PositionProduct
1WP74011675 Whirlpool Door Handle
2MAY 74009732
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4WP74006515 Whirlpool Washer Screw
4WP98008545 Whirlpool Screw
5WP3807F708-71 Whirlpool Support
6MAY 74003650
7GLASS, DOOR
874003645 Whirlpool Range Oven Door Inner Glass
9SCREW
10WP3608F117-71 Whirlpool Door Trim
10WP3608F116-71 Whirlpool Door Trim
10WP74009014 Whirlpool Double Tape
11WP3608F141-71 Whirlpool Door Trim
12MAY 74009502
12MAY 7101P356-60
13INSULATION, OVEN DOOR
14SPACER, RUBBER (BLK-SQUARE)
14MAY 74003642
15GASKT-DOOR OVEN
16PANEL, DRAWER (WHT)
17WP98008544 Whirlpool Screw Assembly
18WPW10131078 Whirlpool Nut Assembly
20MAY 74008337
21WP74005546 Whirlpool RU Spacer
22FRAME, GLASS
23WP74004078 Whirlpool Door Roller
24SHAFT, STORAGE DRAWER ROLLER
25WP488130 Whirlpool Air Conditioner Nut
26LINING, DRAWER PANEL
