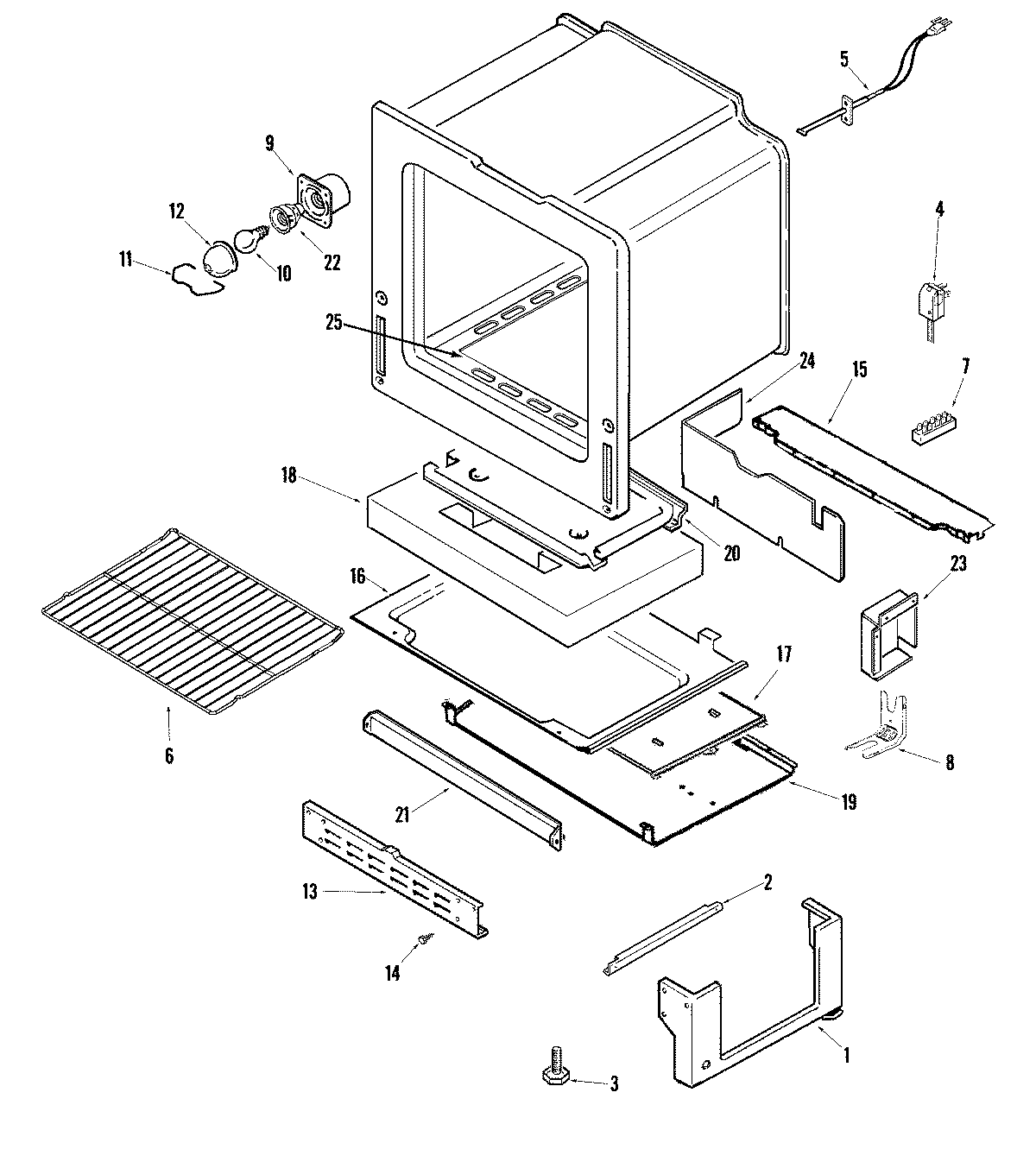

MGR5752BDS 05 – OVEN/BASE

Products

Position	Product
1	MAY 74005772
2	RUNNER, DRAWER
2	74005230 Whirlpool Oven Lock Nut (8-32)
3	W11665456 Whirlpool Range Level Foot
4	MAY 74007556
5	12001655 Whirlpool Oven Sensor
6	WPW10282492 Whirlpool Oven Rack
7	MAY 7401P037-60
8	WP7101P485-60 Whirlpool Anchor Tip
8	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
9	MAY 74003388
10	RANGE ONLY 40W 120V APPL BULB
11	MAY 74003391
12	MAY 74003389
12	INSULATION, OVEN DOOR
13	LINING, DOOR
13	MAY 74003642
13	MAY 4020F001-80
14	GASKT-DOOR OVEN
15	SUPPORT, VALVE REGULATOR
16	RETAINER, BOTTOM INSULATION
17	WP74005546 Whirlpool RU Spacer
18	HANDLE, DRAWER
18	HANDLE, DRAWER (STL)
19	SPACER, RUBBER (BLK-SQUARE)
19	SCREW
19	MAY 74008337
20	MAY 74009840
20	PANEL, DRAWER GAS (STL)
21	WP74004078 Whirlpool Door Roller
22	SHAFT, STORAGE DRAWER ROLLER
23	WP488130 Whirlpool Air Conditioner Nut
26	LINING, DRAWER PANEL
