MGR5754QDS 05 – GAS CONTROLS

MGR5754QDS 05 – GAS CONTROLS

Written by

in

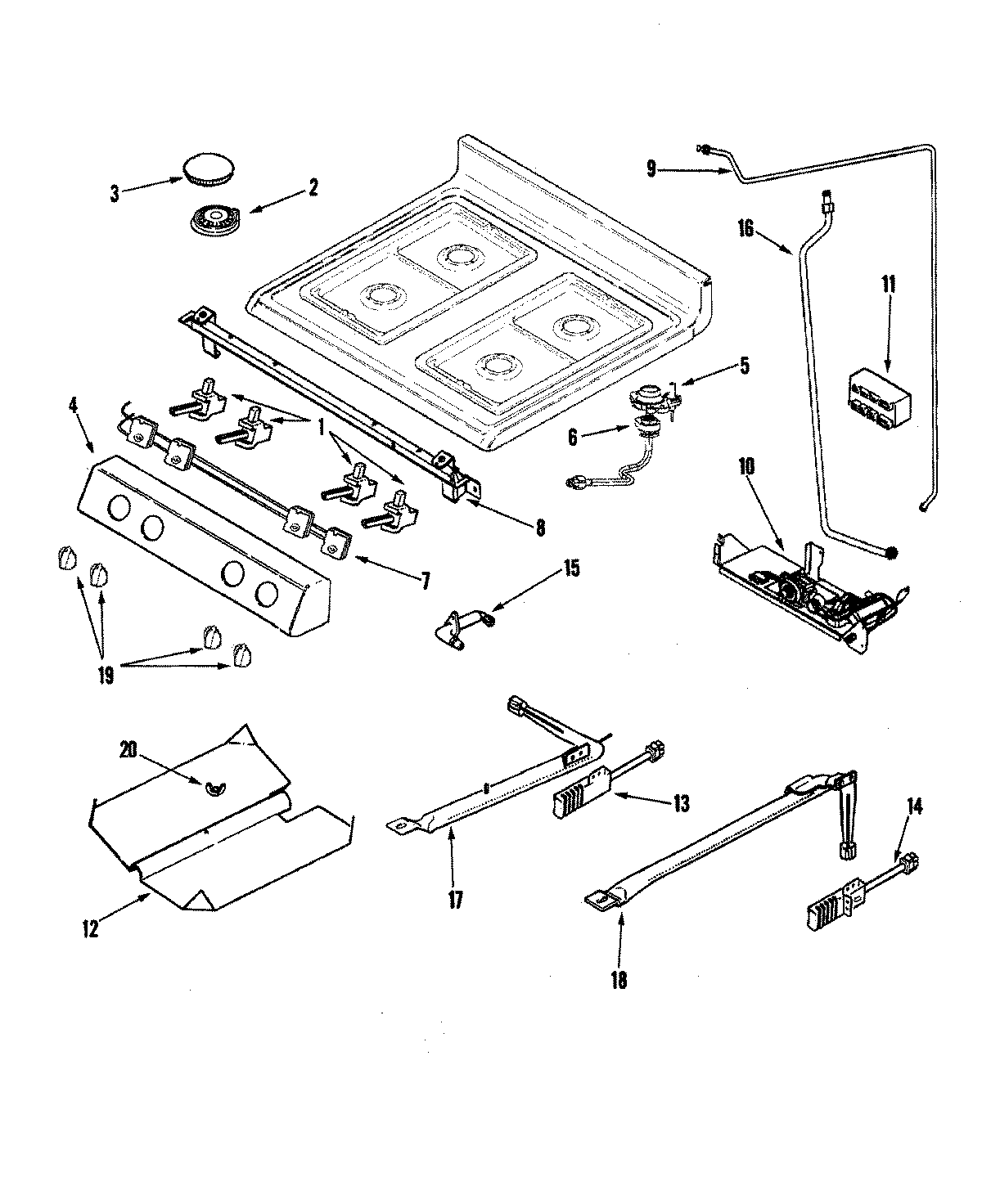

MGR5754QDS 05 – GAS CONTROLS

Products

PositionProduct
1WP74009857 Whirlpool Screw
1MAY 12002235
1MAY 12002236
1MAY 74008810
1MAY 74008811
1MAY 74008812
1VALVE, 12K (COPRECI)
1MAY 74008814
1VALVE, BURNER (5K COPRECI)
1VALVE, 16K (COPRECI)
2WP400021-1 Whirlpool Screw
2WPW10406878 Whirlpool Burner Base (16K)
2WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
2WPW10406243 Whirlpool Burner Head Auxiliary 6K
3WP74007925 Whirlpool Burner Cap
3WPW10154101 Whirlpool Burner Cap
3WP3191898 Whirlpool Surface Burner Cap Black
4MAY 74009128
4W11693756 Whirlpool Screw Assembly
5WP74009958 Whirlpool Spark Electrode Assembly
6MAY 74009040
6MAY 74008838
6MAY 74008840
6MAY 74008841
7MAY 74009394
7WP74010630 Whirlpool Switch Harness
7MAY 74008813
8MAY 74008809
9TUBING, SUPPLY
9MAY 71003231
10MAY 74008808
1174008821 Whirlpool Spark Module
12MAY 74008819
1374007498 Whirlpool Range Flat Igniter
14WP7432P136-60 Whirlpool Oven Igniter
14SCREW (10-24X5/16-NI)
1574008818 Whirlpool Broil Burner Fitting
15SCREW
1674008830 Whirlpool Oven Broil Tubing
17BURNER, BROIL
18MAY 31945701
19MAY 74009094
20NUT, WING
