MGR5755ADW 03 – DOOR/DRAWER

MGR5755ADW 03 – DOOR/DRAWER

Written by

in

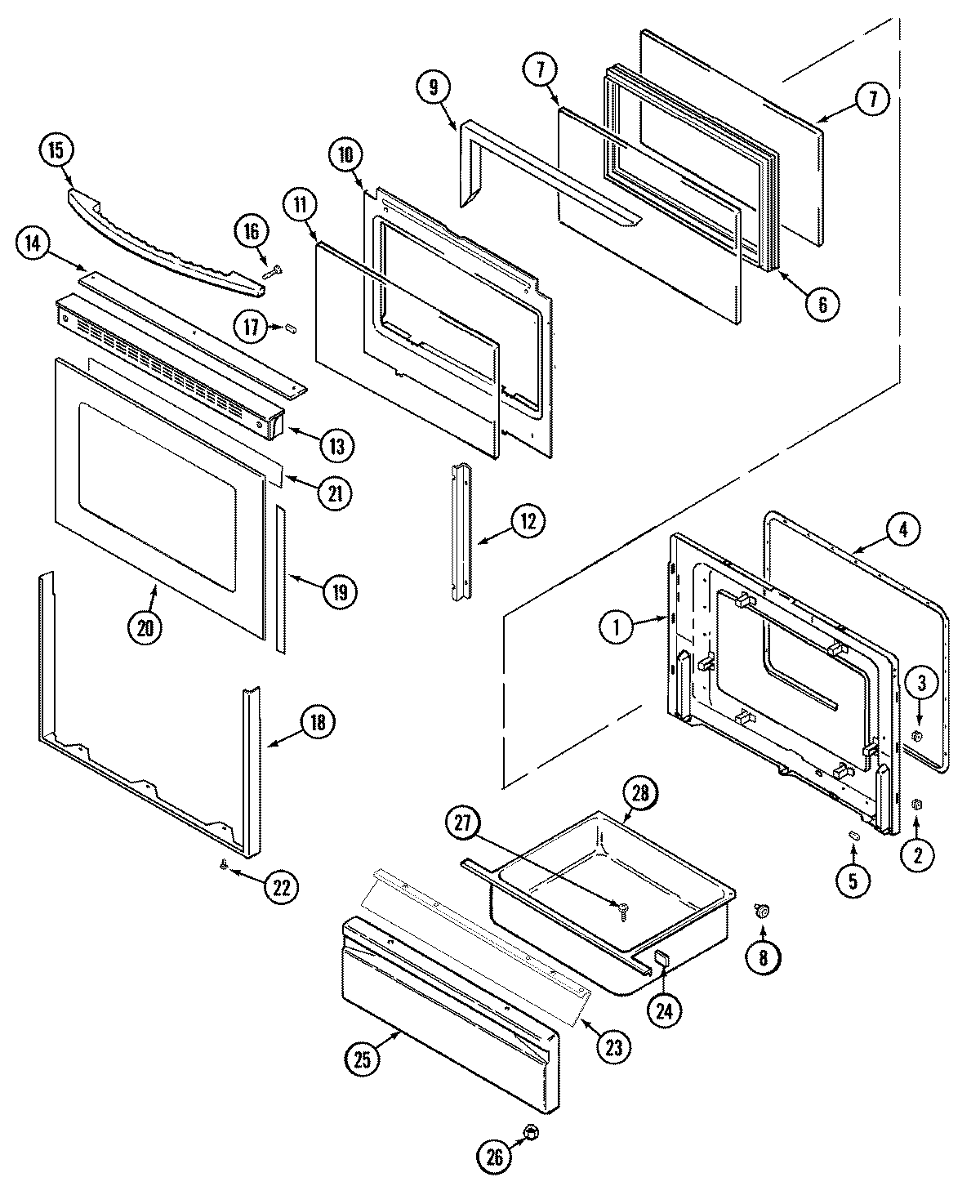

MGR5755ADW 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74003642
2MAY 74003643
3NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8WP74004078 Whirlpool Door Roller
8WP488130 Whirlpool Air Conditioner Nut
8MAY 74004079
9INSULATION, OVEN DOOR
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13WP74003653 Whirlpool Door Trim
14MAY 7728P094-60
14MAY 74001278
15MAY 74003620
16WP179051 Whirlpool Screw
17WP74004224 Whirlpool Tape
18MAY 74004325
18MAY 74003659
18WP98008544 Whirlpool Screw Assembly
19MAY 74003660
20MAY 74003671
21TAPE, FOIL 29“ X 2“
22SCREW
23LINING, DRAWER PANEL
24MAY 8010P085-60
25PANEL, DRAWER (WHT)
26WPW10131078 Whirlpool Nut Assembly
27WP7101P072-60 Whirlpool Screw
28MAY 71003042
