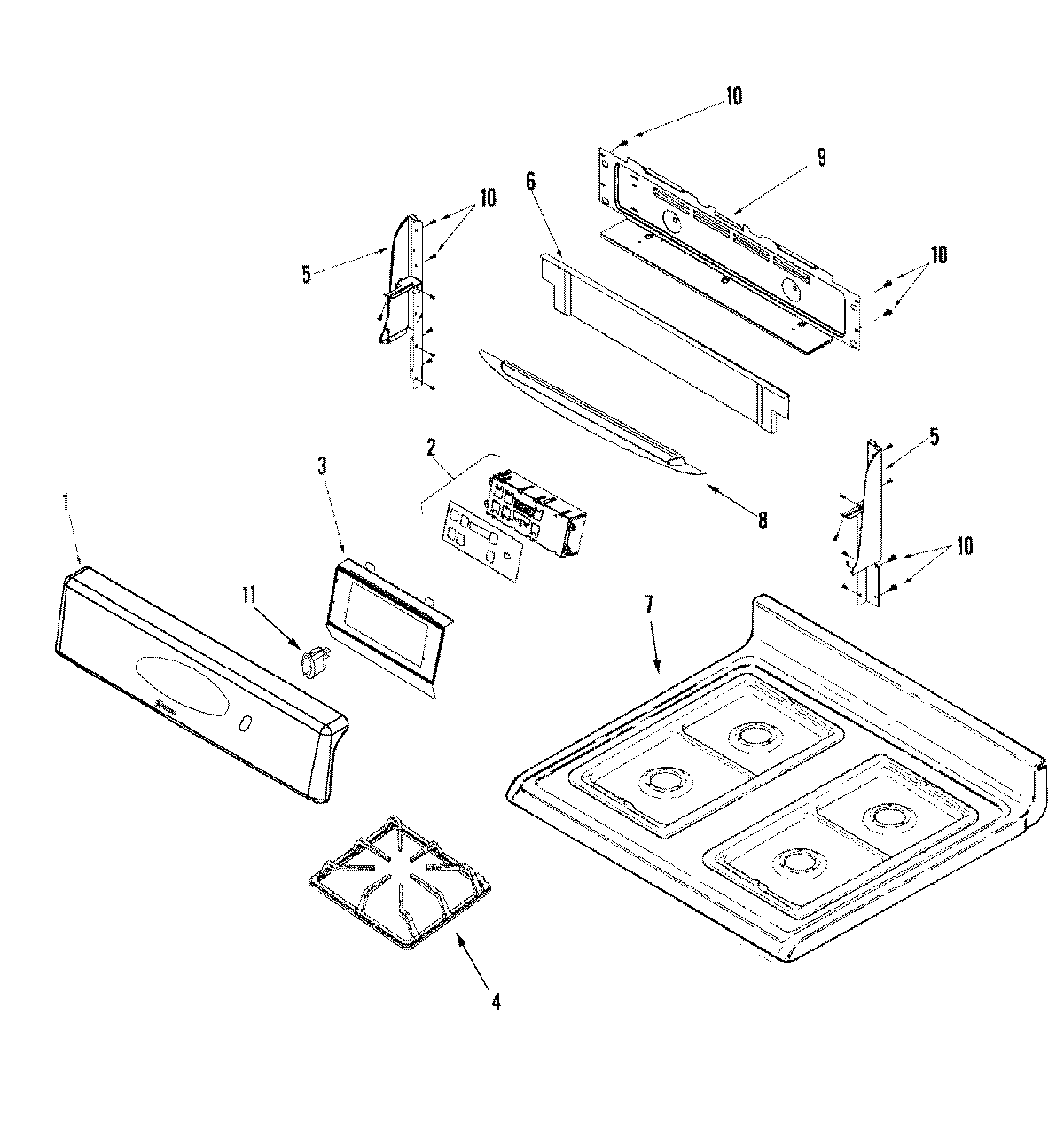

MGR5755QDB 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74009108
2	WP74009217 Whirlpool Control Board
2	MAY 74008669
3	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
3	BRACKET, CLOCK
4	MAY M0275597
4	W10919249 Whirlpool Burner Grate Foot
4	MAY 74009133
5	End Cap (Left Black)
5	End Cap (Right Black)
6	MAY 74009205
6	MAY 74008725
7	MAY 74009125
8	MAY 74008891
8	MAY 74009202
8	SCREW, SHOULDER
9	MAY 74009053
9	MAY 74009093
9	COVER, BROIL ACCESS FITTING
9	SCREW (8BX3/8-NI)
10	SCREW
11	7403P985-60 Whirlpool Rocker Switch (Black)
