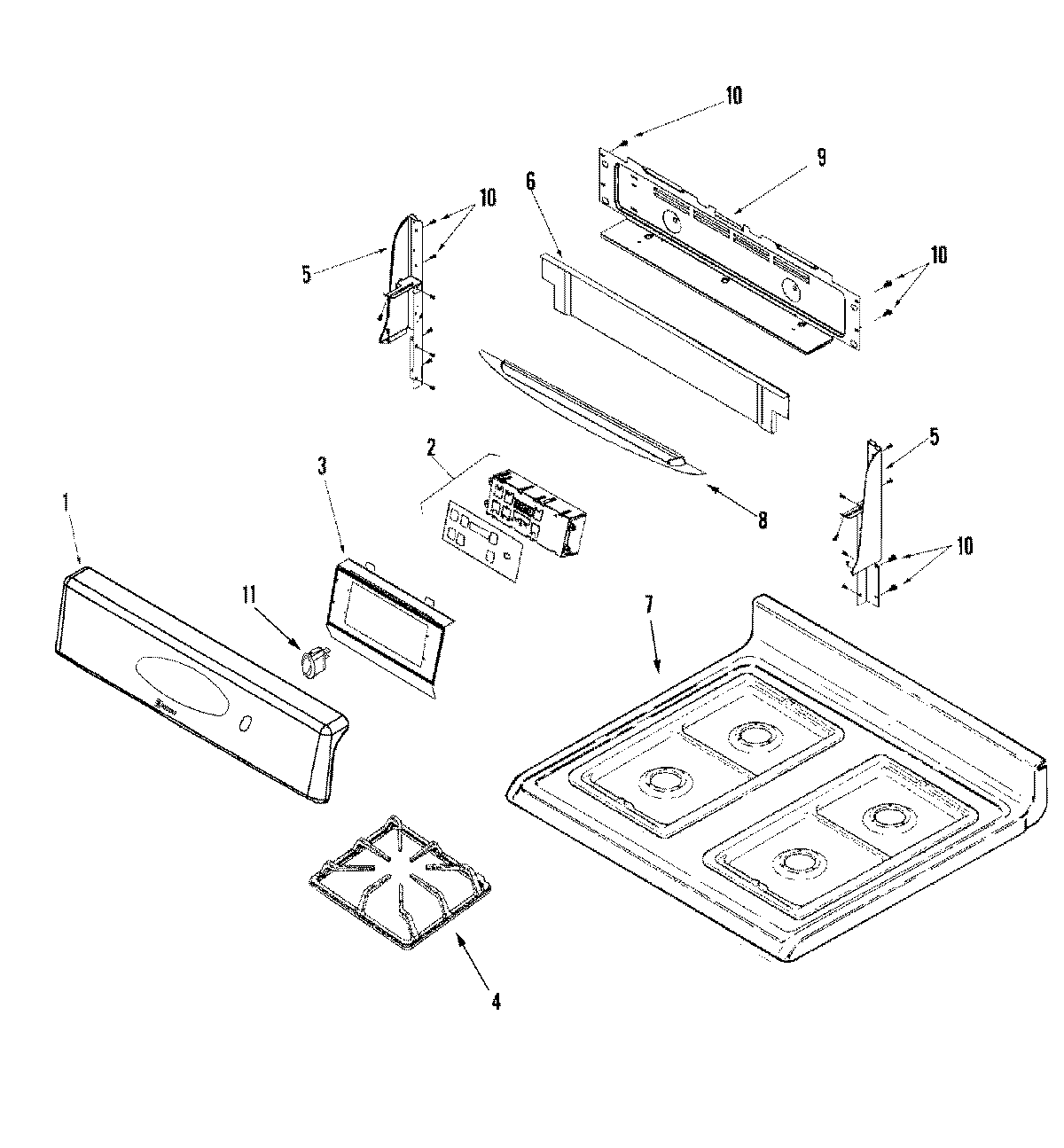

MGR5755QDQ 03 – CONTROL PANEL/TOP ASSEMBLY

MGR5755QDQ 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGR5755QDQ 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009110
2WP74009217 Whirlpool Control Board
2MAY 74008642
3NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
3BRACKET, CLOCK
4MAY M0275597
4W10919249 Whirlpool Burner Grate Foot
4MAY 74009132
5END CAP (LT-BSQ)
5END CAP (RT-BSQ)
6MAY 74008727
6MAY 74009207
7MAY 74009127
8MAY 74008729
8SHIELD, HEAT VISOR (BSQ)
8SCREW, SHOULDER
9MAY 74009053
9MAY 74009093
9COVER, BROIL ACCESS FITTING
9SCREW (8BX3/8-NI)
10SCREW
117403P984-60 Whirlpool RO Switch
