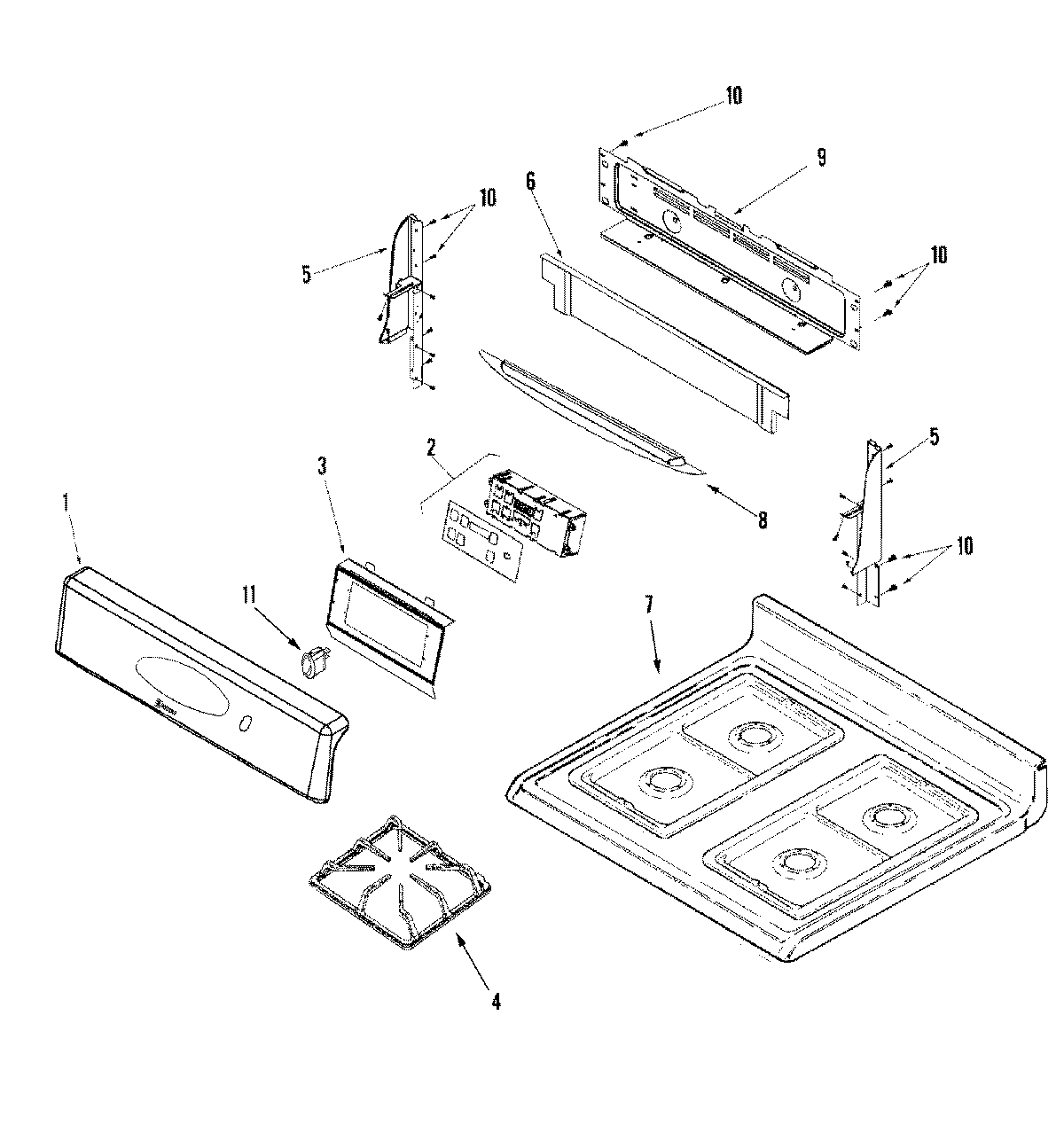

MGR5755QDW 03 – CONTROL PANEL/TOP ASSEMBLY

MGR5755QDW 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGR5755QDW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009109
2MAY 74008641
2WP74009217 Whirlpool Control Board
3NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
3BRACKET, CLOCK
4MAY M0275597
4W10919249 Whirlpool Burner Grate Foot
4MAY 74009131
5Latch Assembly
5END CAP (RT-WHT)
6MAY 74009206
6MAY 74008726
7MAY 74009126
8SCREW, SHOULDER
8MAY 74008728
8MAY 74009203
9MAY 74009093
9MAY 74009053
9COVER, BROIL ACCESS FITTING
9SCREW (8BX3/8-NI)
10SCREW
11WP74010226 Whirlpool RO Switch
