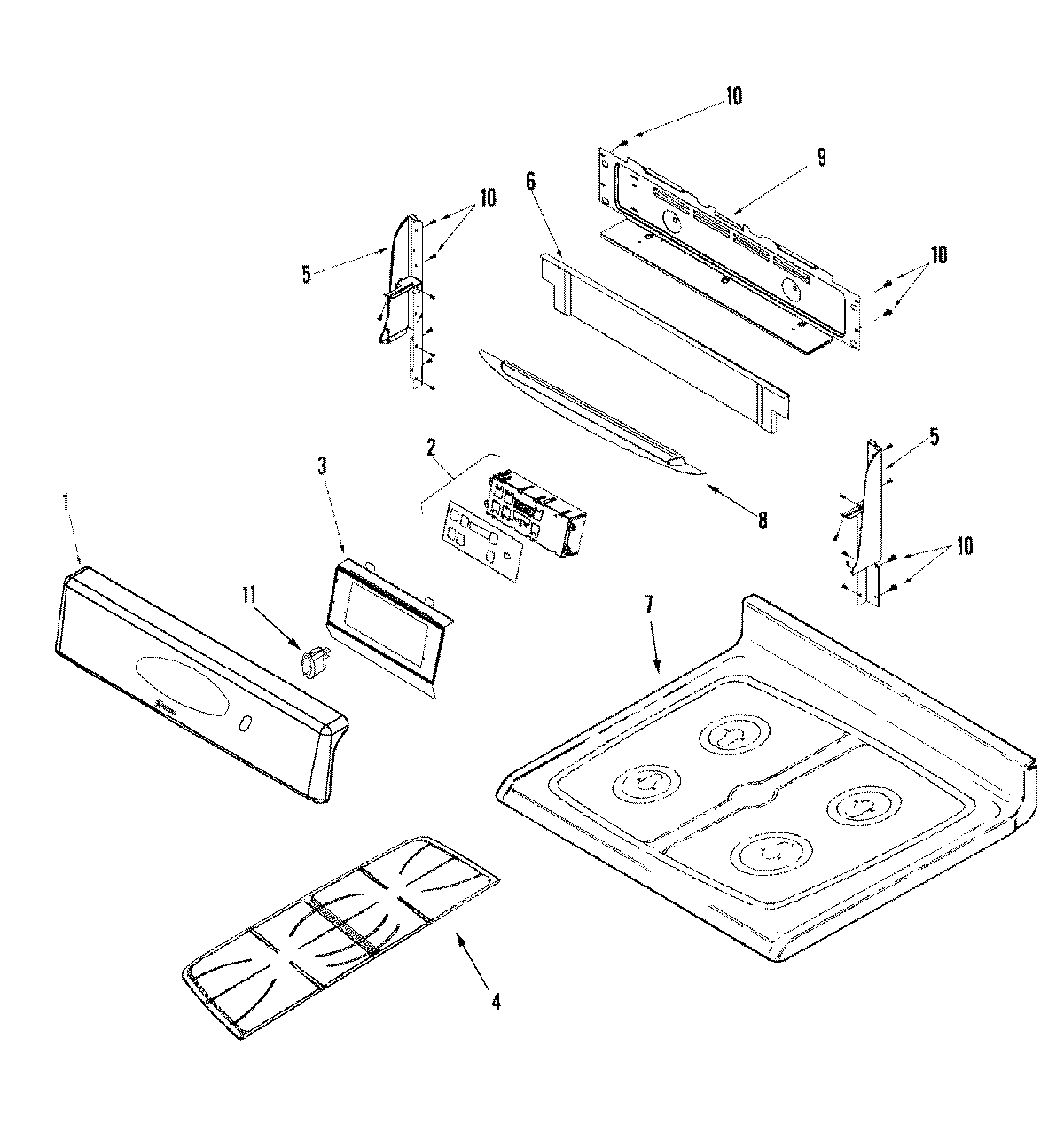

MGR5765QDB 03 – CONTROL PANEL/TOP ASSEMBLY

MGR5765QDB 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGR5765QDB 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009108
2WP74009217 Whirlpool Control Board
2MAY 74008669
3BRACKET, CLOCK
474009120 Whirlpool Oven Double Grate Black
4W10919249 Whirlpool Burner Grate Foot
4MAY M0275597
5End Cap (Left Black)
5End Cap (Right Black)
6MAY 74008725
6MAY 74009205
7TOP, MAIN (BLK)
774008761 Whirlpool Spacer Snap-In
8MAY 74009202
8MAY 74008891
8SCREW, SHOULDER
9COVER, BROIL ACCESS FITTING
9COVER, REAR WIRE
9MAY 74009053
9MAY 74009093
9SCREW (8BX3/8-NI)
10SCREW
117403P985-60 Whirlpool Rocker Switch (Black)
