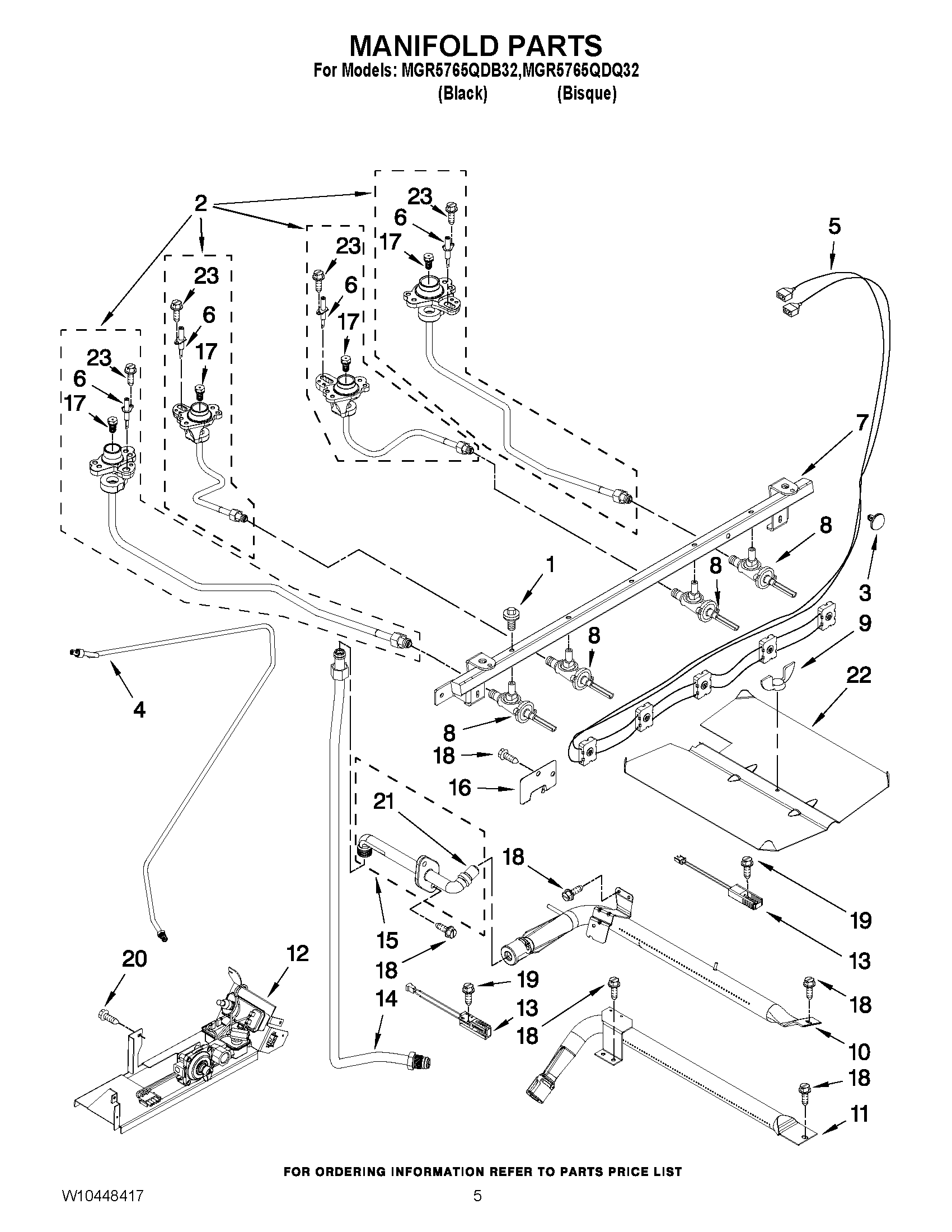

MGR5765QDB32 04 – MANIFOLD PARTSadmin2025-04-26T09:12:54+00:00MGR5765QDB32 04 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| NI | SPUDS, LP GAS (KIT OF 5) |
| 1 | MAY 7101P681-60 |
| 2 | MAY 7527P124-60 |
| 2 | MAY 7527P123-60 |
| 2 | MAY 7527P098-60 |
| 2 | MAY 7527P095-60 |
| 3 | MAY 8010P149-60 |
| 4 | MAY 7506P361-60 |
| 5 | MAY W10173437 |
| 6 | IGNITOR, TOP BURNER |
| 7 | MAY 7513P523-60 |
| 8 | VALVE (CENTER) |
| 8 | VALVE (LR,LF,RR) |
| 8 | MAY 7502P501-60 |
| 9 | NUT, WING |
| 10 | MAY W10160904 |
| 11 | MAY 7505P331-60 |
| 12 | MAY 7501P233-60 |
| 13 | IGNITOR, OVEN |
| 13 | MAY 7432P136-60 |
| 14 | MAY 7506P368-60 |
| 15 | MAY 7507P357-60 |
| 16 | MAY 4005F421-45 |
| 17 | ORIFICE, BURNER (LEFT REAR) |
| 17 | ORIFICE, BURNER (LF,RR) |
| 17 | ORIFICE, BURNER (RIGHT FRONT) |
| 18 | SCREW |
| 19 | SCREW |
| 20 | SCREW |
| 21 | MAY W10247147 |
| 22 | MAY 3601P336-45 |
| 23 | SCREW |
