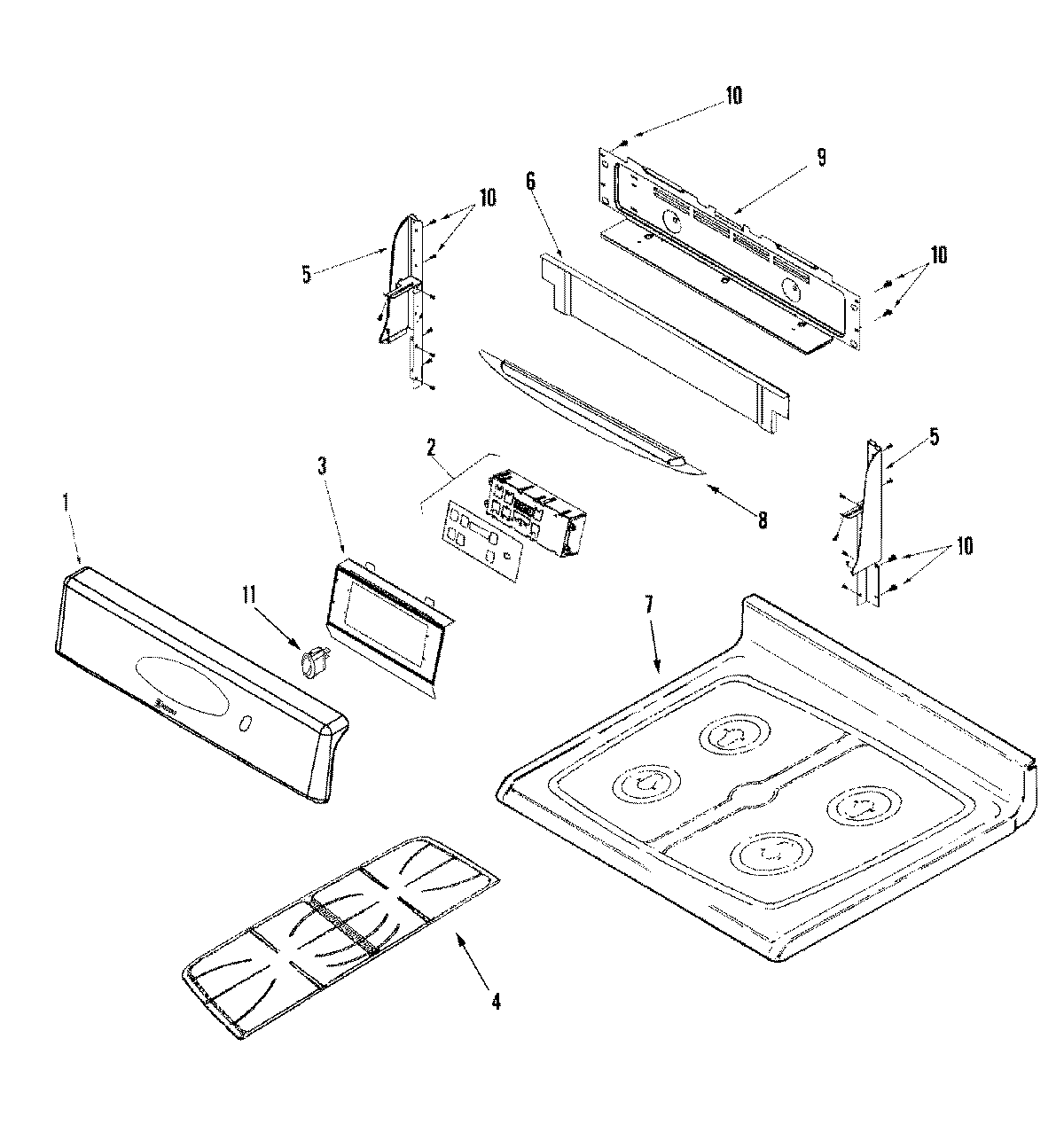

MGR5765QDS 03 – CONTROL PANEL/TOP ASSEMBLY

MGR5765QDS 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGR5765QDS 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010455
2WP74009217 Whirlpool Control Board
3BRACKET, CLOCK
474009120 Whirlpool Oven Double Grate Black
4W10919249 Whirlpool Burner Grate Foot
4MAY M0275597
5End Cap (Right Black)
5End Cap (Left Black)
6MAY 74009444
774008761 Whirlpool Spacer Snap-In
7TOP, MAIN (BLK)
8SCREW, SHOULDER
8MAY 74009202
9MAY 74009093
9MAY 74009053
9COVER, REAR WIRE
9COVER, BROIL ACCESS FITTING
9SCREW (8BX3/8-NI)
10SCREW
117403P985-60 Whirlpool Rocker Switch (Black)
