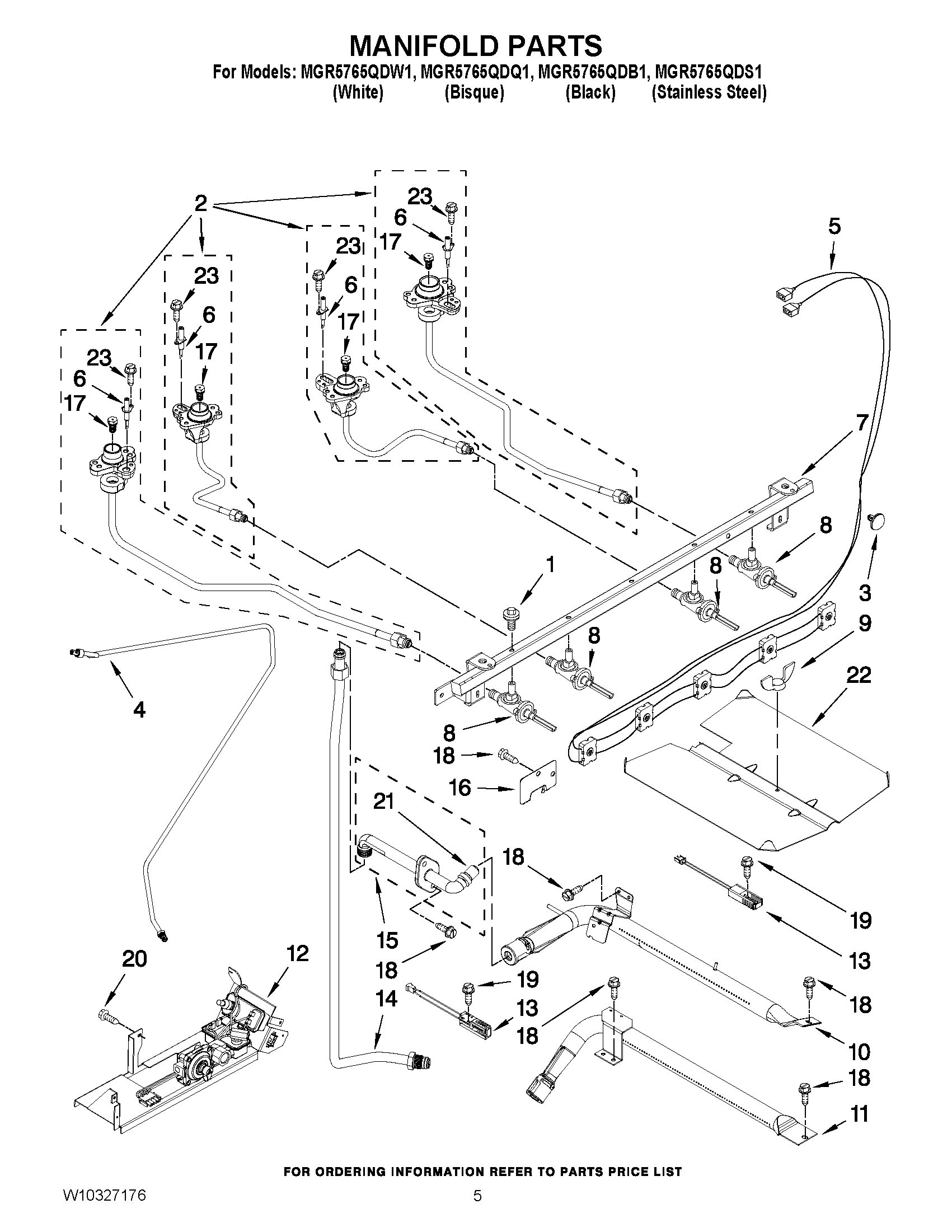

MGR5765QDS1 04 – MANIFOLD PARTS

MGR5765QDS1 04 – MANIFOLD PARTS

Written by

in

MGR5765QDS1 04 – MANIFOLD PARTS

Products

Position	Product
NI	SPUDS, LP GAS (KIT OF 5)
1	MAY 7101P681-60
2	MAY 7527P124-60
2	MAY 7527P123-60
2	MAY 7527P098-60
2	MAY 7527P095-60
3	MAY 8010P149-60
4	MAY 7506P361-60
5	MAY 7403P982-60
6	IGNITOR, TOP BURNER
7	MAY 7513P523-60
8	VALVE (CENTER)
8	VALVE (LR,LF,RR)
8	MAY 7502P501-60
9	NUT, WING
10	MAY W10160904
11	MAY 7505P331-60
12	MAY 7501P233-60
13	IGNITOR, OVEN
13	MAY 7432P136-60
14	MAY 7506P368-60
15	MAY 7507P357-60
16	MAY 4005F421-45
17	ORIFICE, BURNER (LEFT REAR)
17	ORIFICE, BURNER (LF,RR)
17	ORIFICE, BURNER (RIGHT FRONT)
18	SCREW
19	SCREW
20	SCREW, GROUND (GRN)
21	MAY W10247147
22	MAY 3601P336-45
23	SCREW
