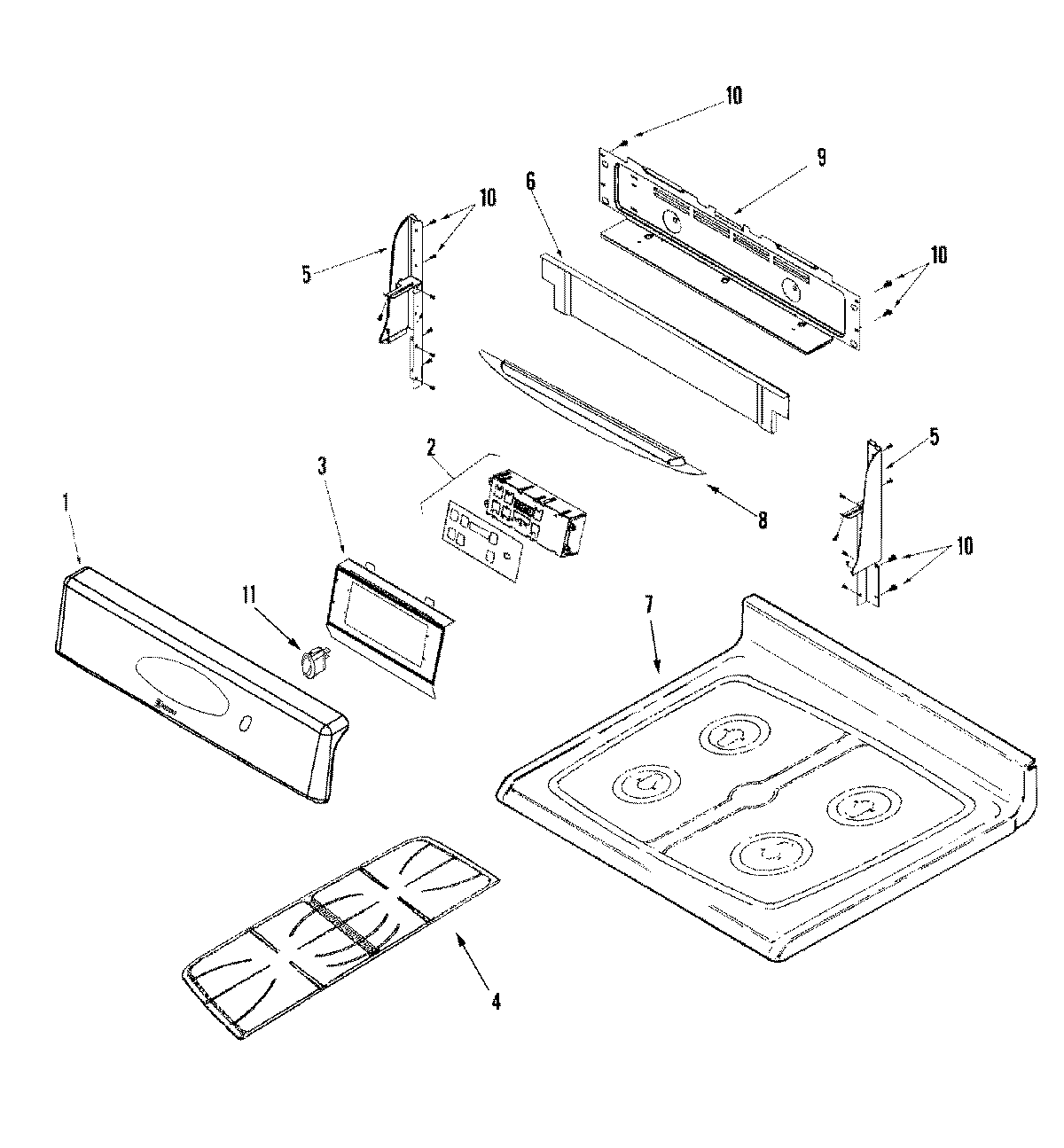

MGR5765QDW 03 – CONTROL PANEL/TOP ASSEMBLY

MGR5765QDW 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGR5765QDW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009109
2MAY 74008641
2WP74009217 Whirlpool Control Board
3BRACKET, CLOCK
4GRATE, DOUBLE (GRY)
4W10919249 Whirlpool Burner Grate Foot
4MAY M0275597
5Latch Assembly
5END CAP (RT-WHT)
6MAY 74008726
6MAY 74009206
7TOP, MAIN (WHT)
774008761 Whirlpool Spacer Snap-In
8MAY 74008728
8MAY 74009203
8SCREW, SHOULDER
9COVER, BROIL ACCESS FITTING
9COVER, REAR WIRE
9MAY 74009053
9MAY 74009093
9SCREW (8BX3/8-NI)
10SCREW
11WP74010226 Whirlpool RO Switch
